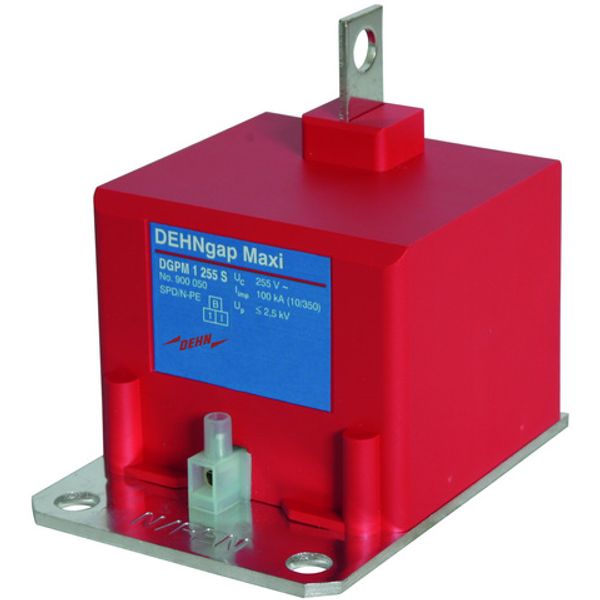

DEHNgap Maxi S, N-PE lightning current arrester
Order only
Price (excl. VAT):
337,31 €
EAN: 4013364107496
MPN: 900050
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | DEHNgap Maxi S, N-PE lightning current arrester |
| Brand | Dehn |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin | DE |
| Harmonized System Code | 8536 3030 00 |
| Mounting method | Busbar |
| Lightning impulse current (10/350 µs) | 100 kA |
| Voltage protection level | 2.5 kV |
| Follow current extinguishing capability | 0.1 kA |
| Max. continuous voltage AC | 255 V |
| Nominal voltage AC | 230 V |
| Category type 1 | Yes |
Packing details
| Packing level 1 | 4013364107496, 4013364107496 |
Other Technical data
| Number of conductors (without earthing) | 1 |
| Signalling at the device | With fibre optic cable |
| Specific energy (W/R) | 2500 kJ/Ohm |
| System configuration TT | Yes |
Downloads
Description

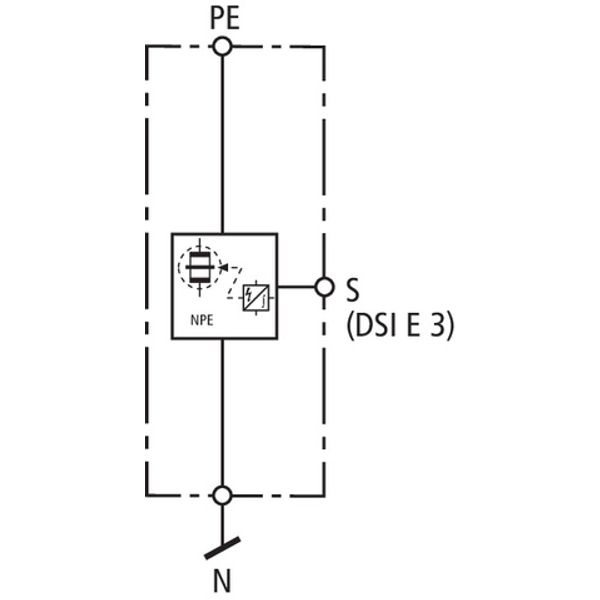

Coordinated single-pole DEHNgap modular N-PE lightning current arrester (type 1 according to EN 61643-11). Total current arrester specifically designed for installation in 3+1 and 1+1 circuits of TT systems according to IEC 60364-5-53 between neutral conductor N and protective conductor PE. For protecting low-voltage consumer’s installations against surges and even direct lightning strikes. For installation in conformity with the lightning protection zone concept at the boundaries from 0A – 1 (3+1 circuit).
