DEHNcon-H HVI light Conduc. w. supp. tube L2875mm w. air-ter. rod L100
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | DEHNcon-H HVI light Conduc. w. supp. tube L2875mm w. air-ter. rod L100 |
| Brand | Dehn |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC000504 |
| Conductor cross section | 19 mm² |
| Diameter conductor | 5 mm |
| Conductor material | Copper |
| Conductor category | Class 1 = solid |
| Sheathing material | Polyvinyl chloride (PVC) |
Packing details
| Packing level 1 | 4013364255951, 4013364255951 |
Other Technical data
| Colour | Grey |
| Surface protection | Untreated |
| Weight | 52 kg/100 m |
| Number of strands | 1 |
| High-voltage-proof insulated model | Yes |
| Material insulation | Polyethylene (PE) |
| Max. equivalent separation distance s (in air) | 0.45 m |
| Max. equivalent separation distance s (solid building materials) | 0.9 m |
| Outer diameter incl. sheat/cover | 20 mm |
| Max. tensile load | 950 N |
Downloads
Description

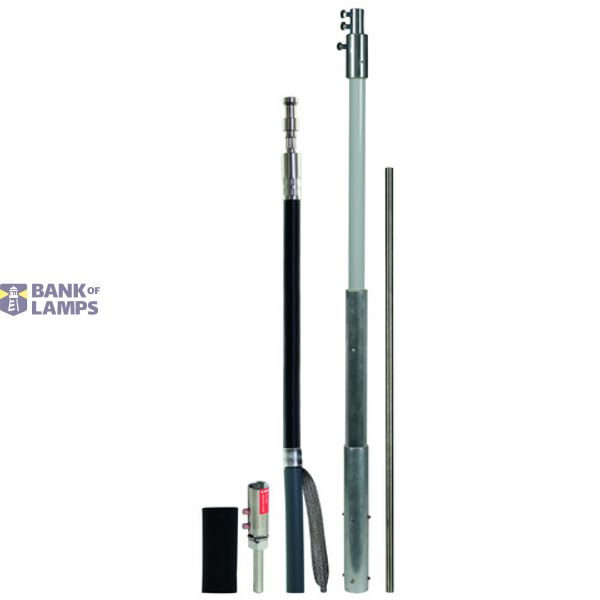

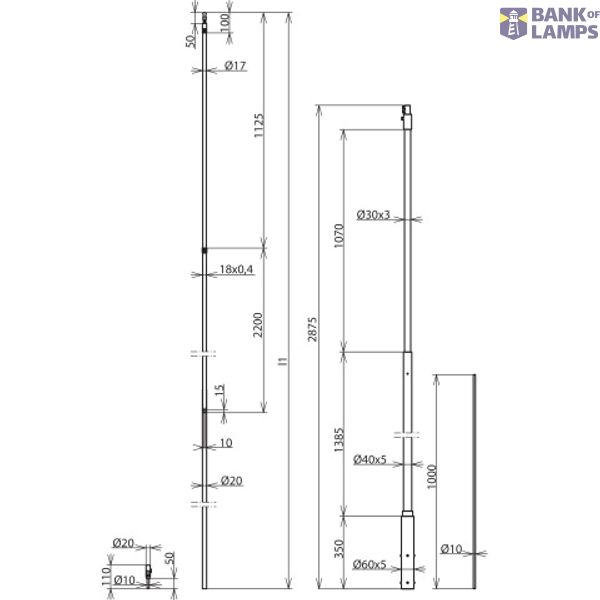

Air-termination mast for installation on the mounting bracket for use on rafters, for the sub-roof installation of the HVI Conductor. The HVI Conductor is led through the supporting tube of the mounting bracket for use on rafters and installed in the area of the counter-battens / roof battens. DEHNcon-H / HVI light Conductor inside the supporting tube with interior sealing end and an air-termination tip D10 mm, length 1000 mm and an earth connection element.
