DEHNcon-H HVI Cond. w. supp. tube -KIT- L 1950mm w. air-ter. rod 22/10
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | DEHNcon-H HVI Cond. w. supp. tube -KIT- L 1950mm w. air-ter. rod 22/10 |
| Brand | Dehn |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC000504 |
| Conductor cross section | 19 mm² |
| Diameter conductor | 5 mm |
| Conductor material | Copper |
| Conductor category | Class 2 = stranded |
| Sheathing material | Crosslinked polyethylene (XLPE) |
Packing details
| Packing level 1 | 4013364260900, 4013364260900 |
Other Technical data
| Colour | Black |
| Surface protection | Untreated |
| Weight | 48 kg/100 m |
| Suitable for EX-applications | Yes |
| Number of strands | 7 |
| High-voltage-proof insulated model | Yes |
| Material insulation | Polyethylene (PE) |
| Max. equivalent separation distance s (in air) | 0.75 m |
| Max. equivalent separation distance s (solid building materials) | 1.5 m |
| Outer diameter incl. sheat/cover | 20 mm |
| Max. tensile load | 950 N |
Downloads
Description

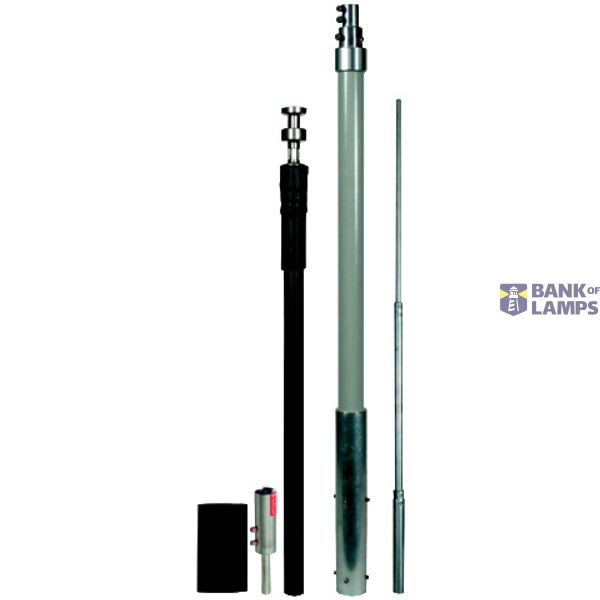

Air-termination mast for installation on the mounting bracket for use on rafters, for the sub-roof installation of the HVI Conductor. The HVI Conductor is led through the supporting tube of the mounting bracket for use on rafters and installed in the area of the counter battens / roof battens. HVI Conductor inside of the supporting tube with interior sealing end and an air-termination rod D16 / 10 mm, length 2500 mm and an earth connection element.
