Dehn

DEHNclip reinforcement clamp St/bare f. Rd 10mm / Rd 10mm

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
1,26 €
This price is valid until 24.12.25
EAN: 4013364288522
MPN: 308142
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name DEHNclip reinforcement clamp St/bare f. Rd 10mm / Rd 10mm
Brand Dehn
Categories Earthing Products
Country of origin DE
Harmonized System Code 8538 9099 00
Surface protection Untreated
Type of fastening screws Screw less
Material Steel
Lightning current load-bearing capacity (10/350 µs) 2.3 kA
Diameter round conductor 1 10 mm
Width flat conductor 1 30 mm

Packing details

Packing level 1 4013364288522, 4013364288522

Other Technical data

Type of connector Parallel connector

Downloads

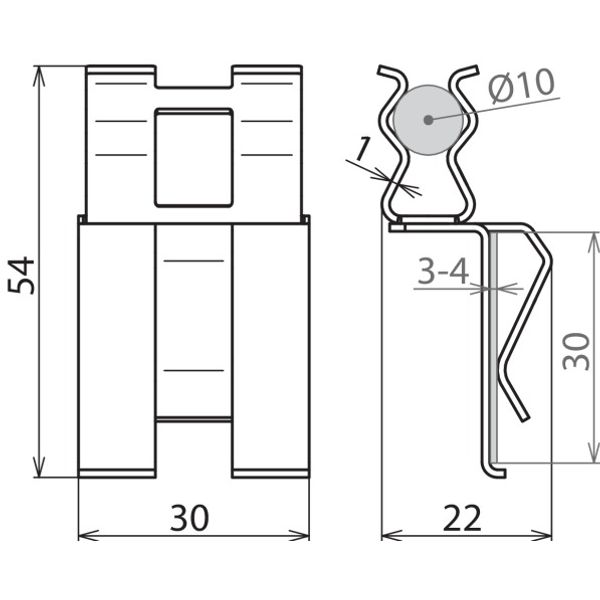

Product data sheet Dimensioned drawing

Description

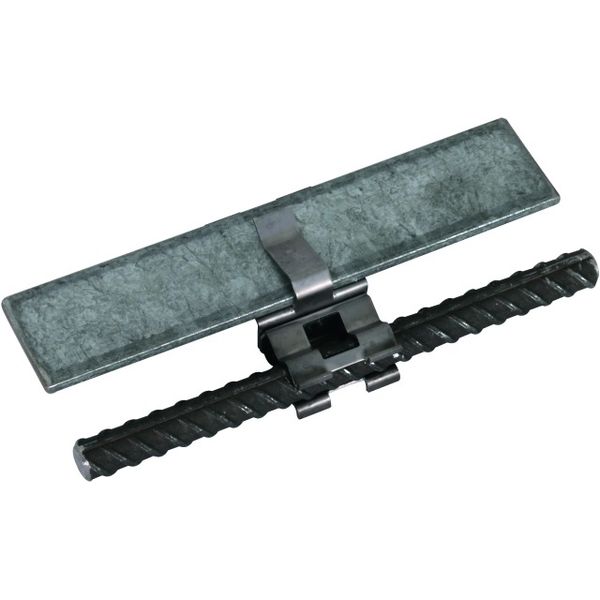

Quick - easy - lightning current tested. DEHNclip rebar clamp for safe, quick, easy and toolless connection of earthing materials with the reinforcement. Connecting clamp according to EN 62561-1, for connecting the reinforcing steel mesh or reinforcement bar with flat conductors.
