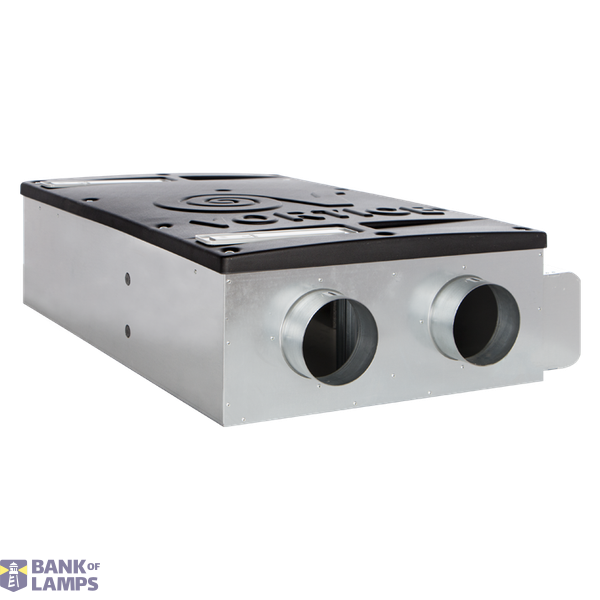

VORT HRI 350 PHANTOM BP
Order only
Price (excl. VAT):
2 501,26 €
EAN: 8010300112930
MPN: 11293
Package: 1
Estimate delivery time to our warehouse: 3-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | VORT HRI 350 PHANTOM BP |
| Brand | VORTICE |
| Categories |
Raumventilatoren
|
| Harmonized System Code | 8415 8300 00 |
| ETIM | EC010004 |
| Width | 740 mm |
| Height | 288 mm |
| Depth | 1287 mm |
| With movement sensor | No |
| Connection | Duct end |
| Energy efficiency class | A |
| Suitable for movement sensor | Yes |
| Housing material | Other |
| Type of motor | Electronically commutated (EC) |
| Electrical connection | Cable |
| Operation by app | No |
| With internal carbon dioxide (CO2) sensor | Yes |
| With pressure sensor | No |
| With external carbon dioxide (CO2) sensor | No |
| Suitable for (extra) carbon dioxide (CO2) sensor | No |
| With internal humidity (RH) sensor | No |
| With external humidity (RH) sensor | No |
| Suitable for (extra) humidity (RH) sensor | Yes |
| Suitable for (extra) pressure sensor | No |
| With wired control unit | Yes |
| Suitable for wired control unit | Yes |
| With zone controller | No |
| Suitable for zone controller | No |
| Max. air volume at 50 Pa | 310 m³/h |
| Max. air volume at 100 Pa | 280 m³/h |
| Max. air volume at 150 Pa | 255 m³/h |
| Max. air volume at 200 Pa | 225 m³/h |
| Max. air volume at 250 Pa | 200 m³/h |
| Max. air volume at 300 Pa | 170 m³/h |
| Type of speed control | 3 positions |
| Nominal duct diameter | 150 mm |
| With wireless remote control | No |
| Number of suction connections | 2 |
| Rear connection | No |
| Power input according to EPN standard | 165 kW |
| Suitable for wireless remote control | No |
| Suitable for requirement-controlled ventilation | Yes |
Packing details
| Packing level 1 | 8010300112930 |
Downloads
Description
Ceiling-mounting residential heat recovery units
