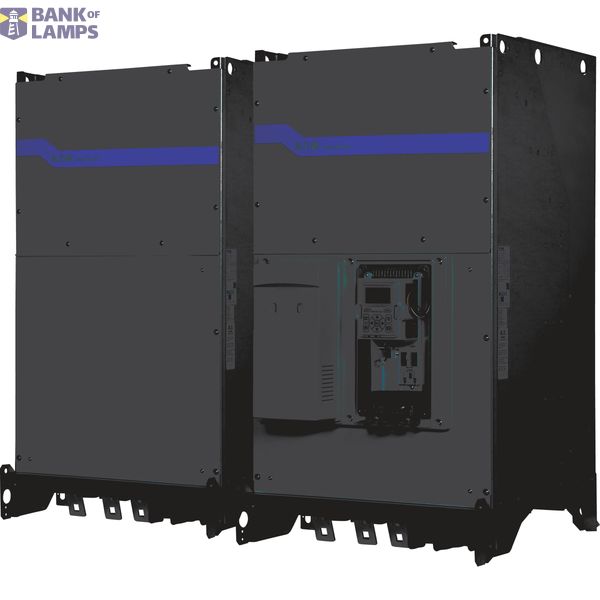

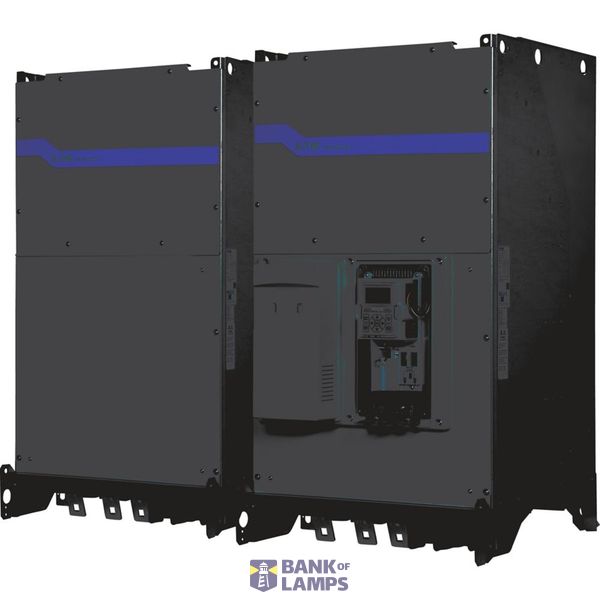

Frequenzumrichter, 400 V AC, 3-phasig, 920 A, 500 kW, IP00, Zwischenkr

Variable frequency drive, Voltage rating - max: 500 V AC, Number of phases (input): 3-phase, Input current ILN at 150% overload: 908 A, Degree of protection: NEMA Other, IP00, Frame size: FS8, Fitted with: Radio interference, Converter type: U converter, System configuration type: TN-S, TN-C, TN-C-S, TT, IT, Protection: Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4), Safety function/level: STO (Safe Torque Off, SIL1, PLc Cat 1), Supply frequency: 50/60 Hz , Assigned motor rating Note: for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz, Overload cycle for 60 s every 600 s, at 400 V, 50 Hz, Assigned motor rating 150 % Overload: P = 500 kW, 110 % Overload: P = 560 kW, 150 % Overload: IM = 900 A, 110 % Overload: IM = 977 A, Assigned motor rating Note: at 500 V, 50 Hz, Assigned motor rating 150 % Overload: P = 630 kW, 110 % Overload: P = 710 kW, 150 % Overload: IM = 855 A, 110 % Overload: IM = 991.2 A, Assigned motor rating Note: at 480 V, 60 Hz, Assigned motor rating 150 % Overload: P = 800 HP , 110 % Overload: P = 800 HP, Assigned motor rating 150 % Overload: IM = 775 A, 110 % Overload: IM = 920 A, Degree of Protection: IP00, Interface/field bus (built-in): Modbus RTU, Modbus TCP, BACnet MS/TP, Ethernet IP, Fieldbus connection (optional): PROFIBUS, CANopen®, DeviceNet, SmartWire-DT, Fitted with: Radio interference suppression filter, Additional PCB protection, Multi-line graphic display, DC link choke, Frame size: FS8, Standards: Specification for general requirements: IEC/EN 61800-2, EMC requirements: IEC/EN 61800-3, Safety requirements: IEC/EN 61800-5
