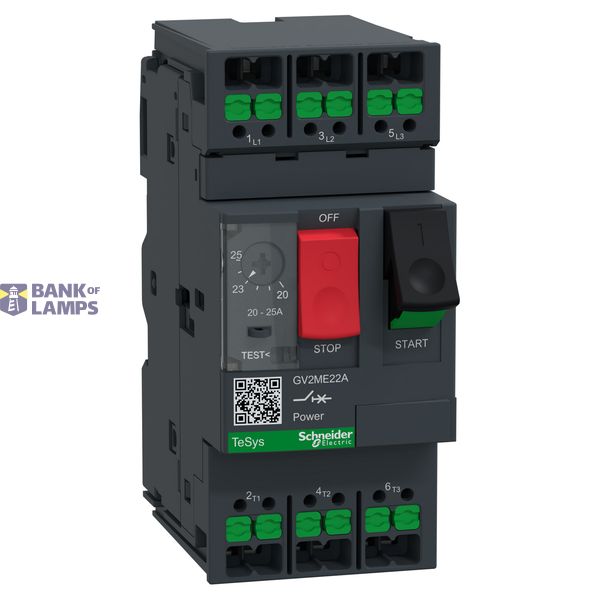

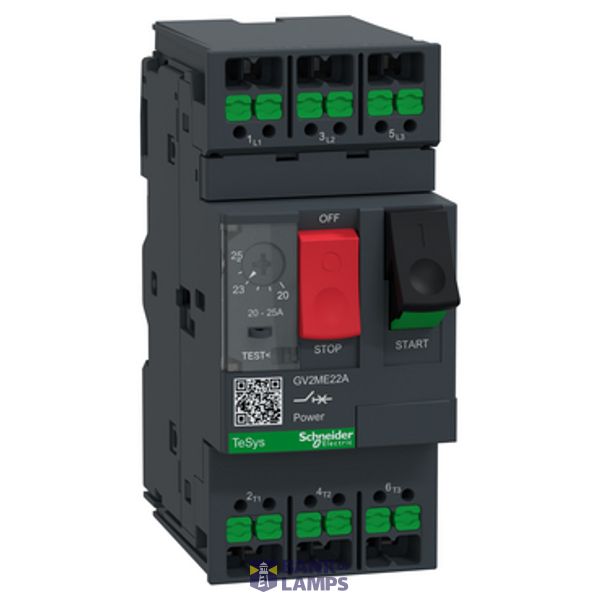

Tesys MOTOR CB TH-MAG 25A PB Snap-in

Order only

Price (excl. VAT):

41,33 €

This price is valid until 01.01.99

EAN: 3606487541912

MPN: GV2ME22A

Package: 1

Estimate delivery time to our warehouse: 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Tesys MOTOR CB TH-MAG 25A PB Snap-in
Brand	Schneider Electric
Categories	Motorschutzschalter
Country of origin*	FR
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 2010 90
ETIM	EC000074
Rated permanent current Iu	25 A
Number of poles	3
Rated operating voltage	230-690 V
Overload release current setting	20-25 A
Degree of protection (IP)	IP20
Rated short-circuit breaking capacity lcu at 400 V, AC	15 kA
Adjustment range undelayed short-circuit release	327 A

Packing details

Packing level 1

3606487541912, 3606487541912

Other Technical data

Width	45 mm
Height	101 mm
Depth	78.5 mm
Rated operation power at AC-3, 400 V	11 kW
With integrated auxiliary switch	No
With integrated under voltage release	No
With thermal protection	Yes
Type of electrical connection of main circuit	Other
Type of control element	Push button
Switch off technique	Thermomagnetic
Rated operation power at AC-3, 230 V	5.5 kW
Phase failure sensitive	Yes
Device construction	Complete device in housing

Downloads

Declaration EPD (Environmental Product Declaration) Others Mounting instruction Deep link REACH Declaration RoHS

Description

TeSys GV motorbeveiligingsschakelaar, 3 polen (3P), 25A/690V, voor 3-fasige motortoepassingen 11kW@400V. Het biedt een thermisch-magnetische beveiliging met een thermisch instelbereik van 20-25A, magnetische uitschakeling bij 13xIn, hoog uitschakelvermogen Icu 15kA@400V. Het is uitgerust met inklikbare klemmen voor werktuigvrije flexibele kabelbedrading en een levenslange robuuste aansluiting. Start-stop regeling met drukknop gegarandeerd voor 100.000 cycli AC-3. Gecertificeerd volgens meerdere normen, conform de omgeving (RoHS/REACh).
