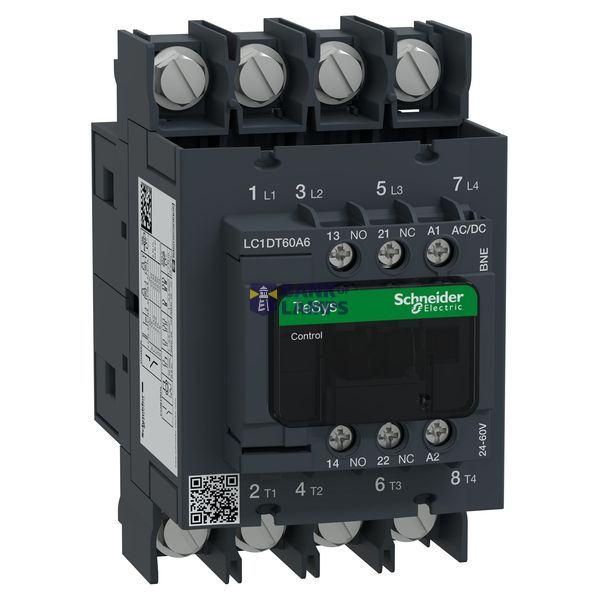

TeSys CTR 4P60A AC3NO+NC24-60V ACDC LUGS
Order only
Price (excl. VAT):
216,89 €
EAN: 3606489493509
MPN: LC1DT60A6BNE
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | TeSys CTR 4P60A AC3NO+NC24-60V ACDC LUGS |
| Brand | Schneider Electric |
| Categories |
AC-Leistungsschütze
|
| Country of origin* | FR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 4190 89 |
| ETIM | EC000066 |
| Number of normally open contacts as main contact | 4 |
| Number of normally closed contacts as main contact | 0 |
| Rated control supply voltage at AC 50 Hz | 24-60 V |
| Rated control supply voltage at AC 60 Hz | 24-60 V |
| Rated control supply voltage at DC | 24-60 V |
| Type of electrical connection of main circuit | Screw connection |
| Voltage type for actuating | AC/DC |
Packing details
| Packing level 1 | 3606489493509, 3606489493509 |
Other Technical data
| Modular version | Yes |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Rated operation current Ie at AC-1, 400 V | 60 A |
Downloads
Deep link REACH
Declaration RoHS
Others
Mounting instruction
Declaration EPD (Environmental Product Declaration)
Description
Tesys deca-contactor, 4 polen (4NO), voor niet-inductieve belastingstoepassingen tot 60A/690V AC-1. Het biedt een laag verbruik 24-60V AC/DC spoel met elektronische bediening, 1NO+1NC ingebouwde hulpcontacten (NC spiegel-gecertificeerd), aansluiting door beugelring klemmen. Voor werksnelheden tot 3600 cycli/uur en omgevingen tot 60°C biedt deze een hoge betrouwbaarheid en duurzaamheid voor veeleisende toepassingen. Compact (70mm breed), DIN-rail montage of schroefbevestiging. Gecertificeerde meerdere normen (IEC, UL, CSA, CCC, EAC, Marine), Grene premium conform (RoHS/REACh).
