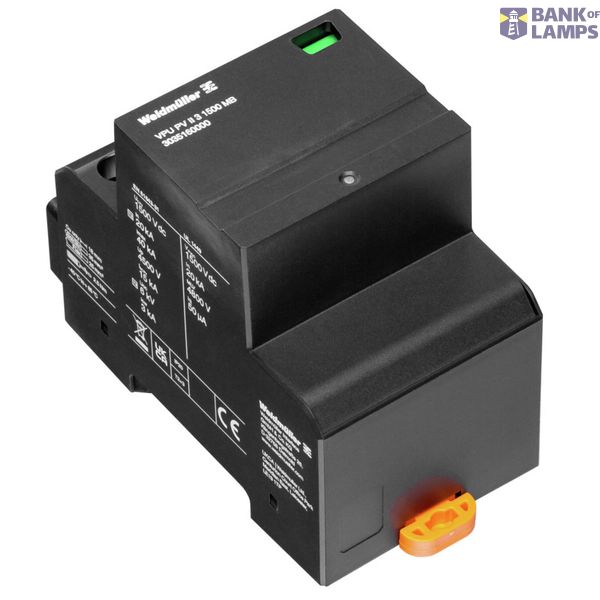

Surge arrester PV (Type 2), DC, Rated voltage (DC): , Number of poles:

Order only

Price (excl. VAT):

104,91 €

This price is valid until next price list or while stock lasts

EAN: 4099986992047

MPN: 3035160000

Package: 1

Estimate delivery time to our warehouse: 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Surge arrester PV (Type 2), DC, Rated voltage (DC): , Number of poles:
Brand	Weidmüller
Categories	Überspannungsschutzgeräte (SPD)
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 3010 00
ETIM	EC000941
Voltage protection level	4.5 kV
Nominal voltage DC	1500 V
Degree of protection (IP)	IP20
Max. PV-voltage	1500 V
System configuration DC	Yes
System configuration IT	No
System configuration TN	No
System configuration TN-C-S	No

Packing details

Packing level 1

4099986992047, 4099986992047

Other Technical data

Mounting method	DIN rail (top hat rail) 35 mm
With remote signalling contact	No
Number of conductors (without earthing)	2
Construction size	3 modular spacing
Category type 2	Yes
Signalling at the device	Optic
Max. continuous voltage DC	1500 V
Integrated backup fuse	No
Max. conductor cross section solid (solid, stranded)	6 mm²
Max. conductor cross section flexible (fine-strand)	25 mm²
System configuration TN-C	No
System configuration TN-S	No
System configuration TT	No
Max. discharge surge current (8/20)	40 kA
Short-circuit breaking capacity (Isccr)	15 kA
Integrated short-circuit protection	No
Leakage-current free	No

Description

The device is a Type II surge protection for photovoltaic (PV) application. It can be installed behind the PV inverter and protects against surge voltages caused by switching operations or indirect lightning. The portfolio offers worldwide usage in high-elevation regions and long warranty. The application is installed on a mounting rail.
