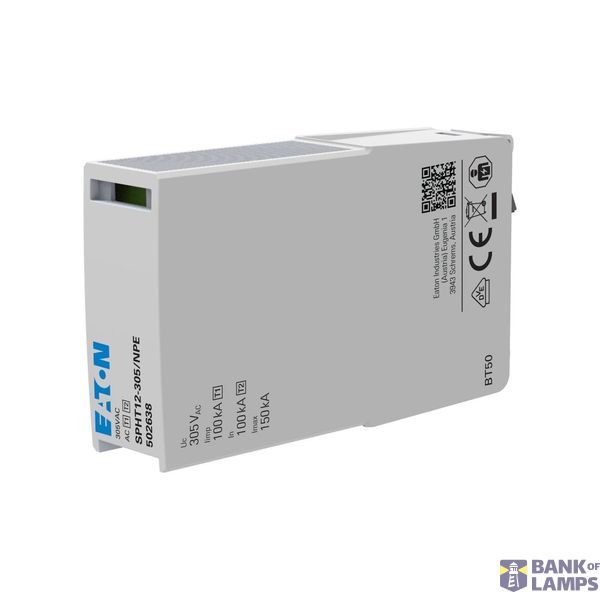

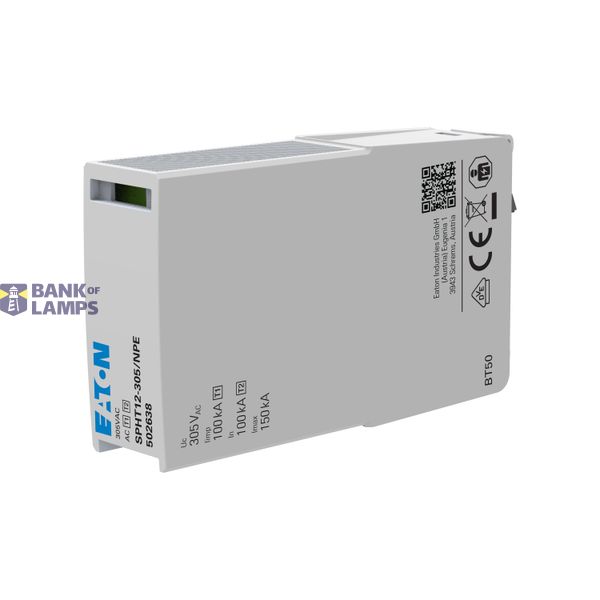

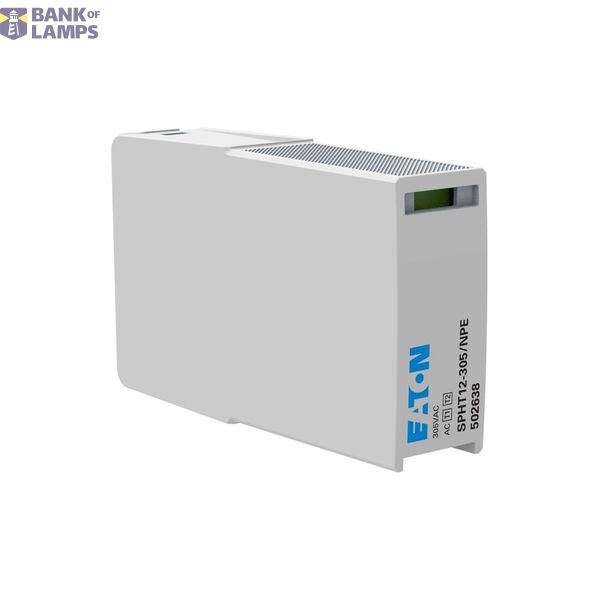

SPHT12 Überspannungsschutzgerät SPD-Einsatz
Order only
EAN: 9010653085294
MPN: EP-502638
Package: 1
Price (excl. VAT)
226,43 €
per unit
MOQ: 1
EDT to our warehouse: 7-8 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | SPHT12 Surge Protection Device. Transient voltage surge suppression mo |
| Brand | EATON |
| Categories |
Überspannungsschutzgeräte (SPD)
|
| Country of origin* | SI |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3010 00 |
| ETIM | EC000381 |
| Lightning impulse current (10/350 µs) | 100 kA |
| Follow current extinguishing capability | 100 kA |
| Max. continuous voltage AC | 305 V |
| Nominal discharge surge current (8/20) | 100 kA |
| Category type 1 | Yes |
| Degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 9010653085294 |
Other Technical data
| With remote signalling contact | No |
| Construction size | Other |
| Suitable for outdoor use | No |
| Exhausting | No |
| Signalling at the device | Optic |
| Integrated backup fuse | No |
| System configuration DC | No |
| System configuration IT | No |
| System configuration TN | No |
| System configuration TN-C | No |
| System configuration TN-S | Yes |
| System configuration TT | Yes |
| System configuration other | No |
| System configuration TN-C-S | Yes |
Downloads
Description
Contactor module, type 1 as specified in EN 61643-11, spark-gap-based.
