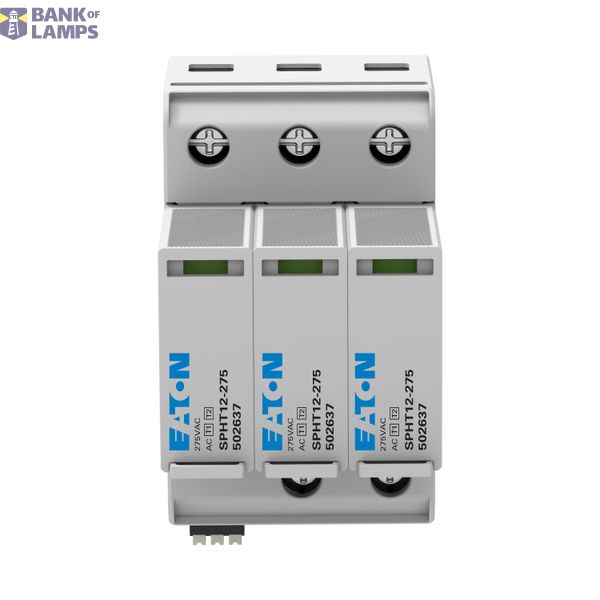

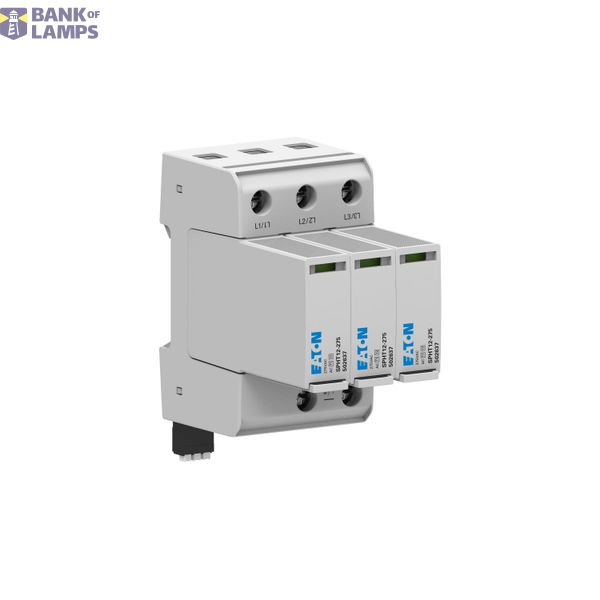

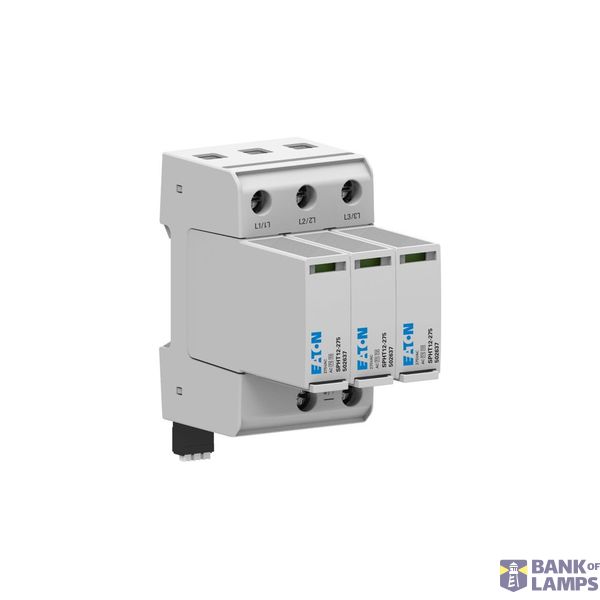

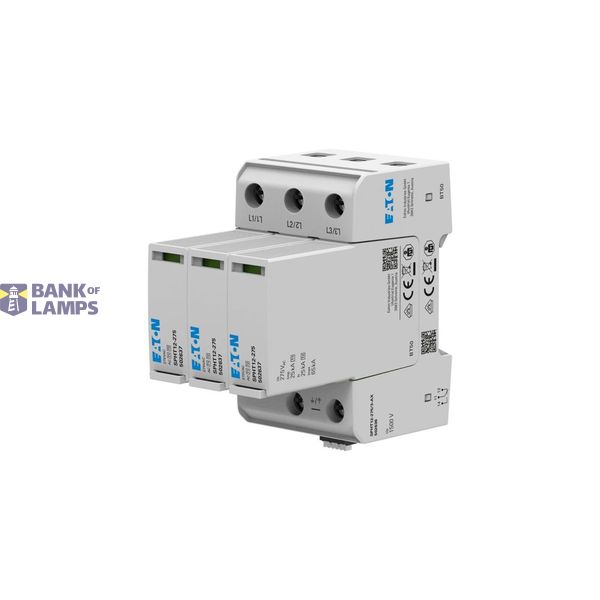

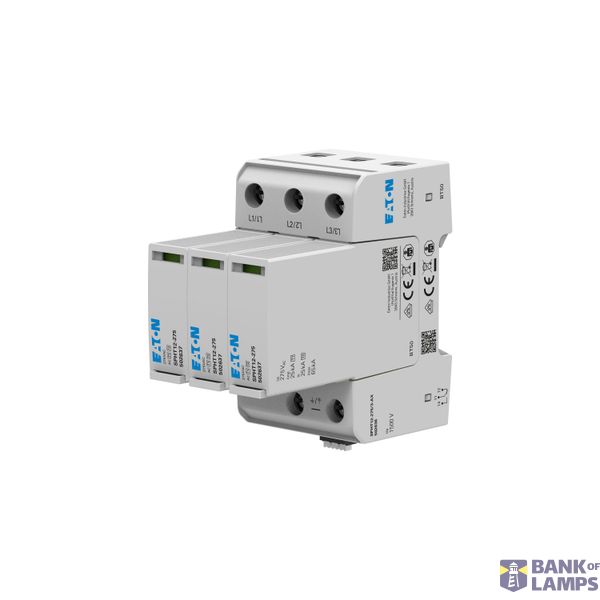

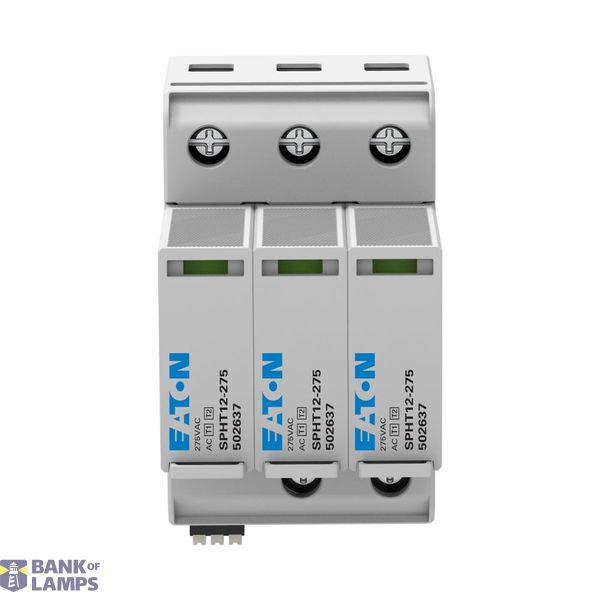

SPHT12 Überspannungsschutzgerät. AX
Order only
EAN: 9010653085270
MPN: EP-502636
Package: 1
No pricing modes available.
Technical Information
| Item condition | New |
| Manufacture name | SPHT12 Surge Protection Device. Combined arrester, transient voltage s |
| Brand | EATON |
| Categories |
Überspannungsschutzgeräte (SPD)
|
| Country of origin* | SI |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3090 00 |
| ETIM | EC000381 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Lightning impulse current (10/350 µs) | 25 kA |
| Voltage protection level | 1.5 kV |
| Follow current extinguishing capability | 50 kA |
| Max. continuous voltage AC | 275 V |
| Nominal discharge surge current (8/20) | 25 kA |
| Nominal voltage AC | 240 V |
| Category type 1 | Yes |
| Degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 9010653085270 |
Other Technical data
| With remote signalling contact | Yes |
| Number of conductors (without earthing) | 3 |
| Construction size | 3 modular spacing |
| Suitable for outdoor use | No |
| Exhausting | No |
| Signalling at the device | Optic |
| Integrated backup fuse | No |
| Max. conductor cross section solid (solid, stranded) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) | 25 mm² |
| System configuration DC | No |
| System configuration IT | No |
| System configuration TN | No |
| System configuration TN-C | Yes |
| System configuration TN-S | No |
| System configuration TT | No |
| System configuration other | No |
| System configuration TN-C-S | No |
Downloads
Description
Multi-pole combined arrester, type 1 as specified in EN 61643-11, spark-gap-based, consisting of base and plug-in protection modules. For protecting low-voltage consumer installations from overvoltages, even in the event of direct lightning strikes.
