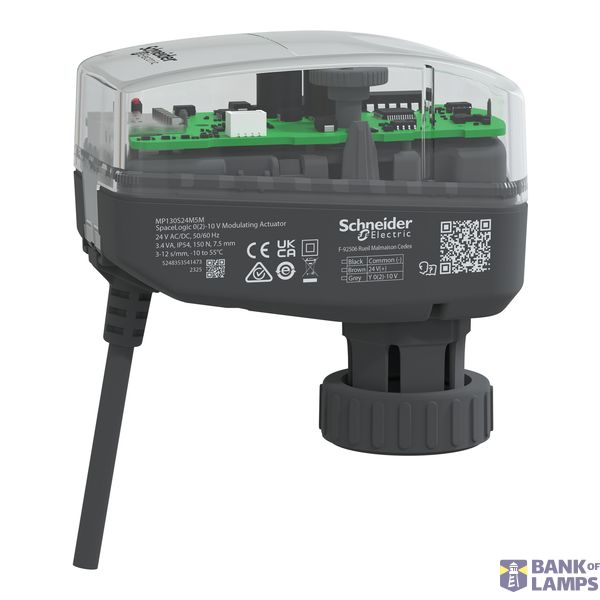

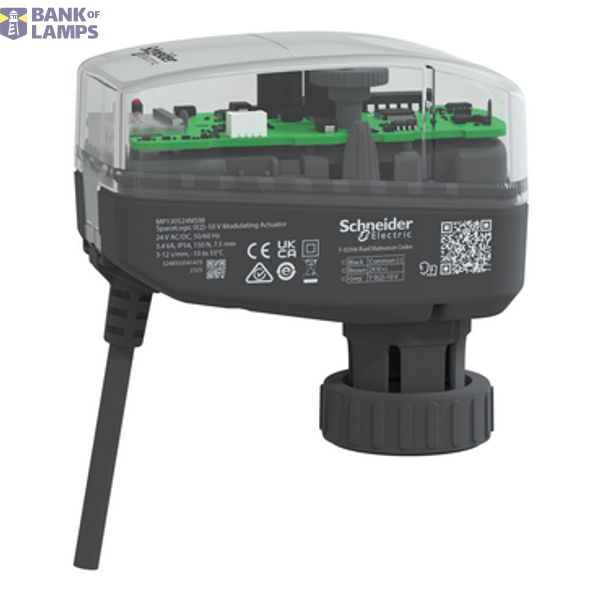

SpaceLogic MP130S PIBCV Modulating Actuator, Non-Spring Return, 24V AC
Order only
Price (excl. VAT):
190,54 €
EAN: 3606487519423
MPN: MP130S24M5M
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SpaceLogic MP130S PIBCV Modulating Actuator, Non-Spring Return, 24V AC |
| Brand | Schneider Electric |
| Categories |
Servomotoren
|
| Country of origin* | DK |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8501 1099 90 |
| ETIM | EC011290 |
| Model | Linear |
| Control signal | Other |
| Degree of protection (IP) | IP42 |
| Regulation type on/off | No |
| Type of safety function | Other |
| Stroke length | 5 mm |
| Supply voltage | 24 V AC |
Packing details
| Packing level 1 | 3606487519423, 3606487519423 |
Other Technical data
| Width | 121 mm |
| Height | 55 mm |
| Depth | 50 mm |
| Housing material | Other |
| Ambient temperature | 0-55 °C |
| Suitable for manual operation | No |
| Potential free switch contact | No |
| Explosion-proof | No |
| Regulation type modulating | Yes |
| Regulation type splitrange | No |
| Degree of protection (NEMA) | 3 |
| Principle of operation safety function | Other |
| Energy consumption in operation | 0.5 W |
| Auxiliary contacts optional | No |
| Suitable for air accessory | Yes |
| Automatic travel recognition | No |
| With safety function | Yes |
| Deactivated when closed | No |
| Connection to stop valve | None |
| With mechanical setting indicator | No |
| Position reporting system | None |
| Suitable for valve | Yes |
| Max. electric power input | 2 VA |
| Transmission | Magnetic |
| Allowable relative humidity | 0-80 % |
| Adjustable operating range | Yes |
| Return at zero supply voltage | No |
| Auxiliary contacts | No |
| End contacts | None |
| Adjusting force | 130 N |
| Self-adjusting travel length | No |
| Adjustable position feedback signal | No |
| With top flange direct mount according to ISO 5211 | No |
Downloads
Others
Deep link REACH
Declaration RoHS
Declaration EPD (Environmental Product Declaration)
Mounting instruction
Description
De MP130S24M is een proportionele actuator voor de SpaceLogic PIBCV (DN10-32) automatische balans- en regelkleppen. Deze actuator wordt gebruikt in combinatie met ventilatorconvectoren, inductie-units, kleine naverwarmers, nakoelers en Spelingdetectie in de bovenste stand van de klepsteel, modulerende regeling, geforceerde uitschakeling in de onderste st Levenslang onderhoudsvrij. Voeding: 24 Vac +10%...-15%. Eindkracht: 150 N. Beschermingsklasse IP III (extra-lage spanning). Maximale slag 7,5 mm. LVD: 26/95/EC.
