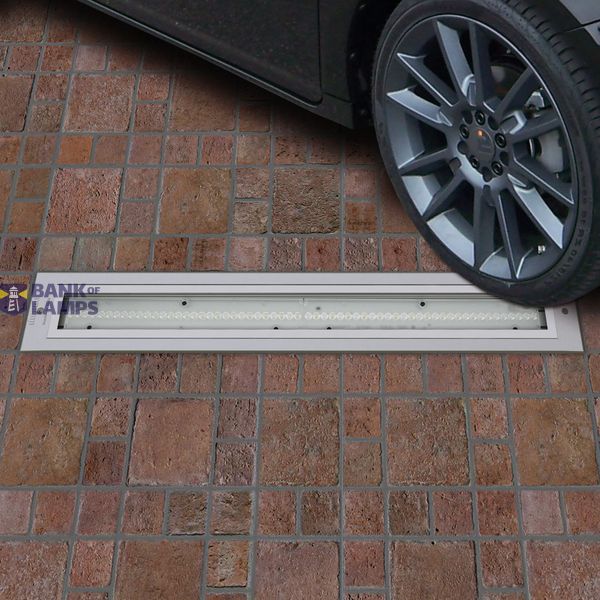

SICURA 1838 LED 22W CLD RAL9006
Order only
EAN: 8012952122114
MPN: 41428000
Package: 1
Pallet: 112
Price (excl. VAT)
367,35 €
per unit
MOQ: 1
EDT to our warehouse: 3-6 weeks
Price valid until 31.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | SICURA 1838 LED 22W CLD RAL9006 |
| Brand | Disano Illuminazione |
| Categories |
Bodeneinbauleuchten
|
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC000758 |
| Width | 112 mm |
| Length | 645 mm |
| Height/depth | 100 mm |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP67 |
| Colour temperature | 4000 K |
| Max. system power | 22 W |
Packing details
| Packing level 1 | 8012952122114 |
| Packing level 2 | 8012952122114 |
Other Technical data
| Protection class | II |
| Colour housing | Grey |
| Voltage type | AC |
| Suitable for lamp power | - W |
| Adjustable | No |
| Housing material | Aluminium |
| Electrical connection with connector system | No |
| Light sharing | Asymmetric |
| Over rollable | Yes |
| Max. surface temperature | 30 °C |
| With light source | Yes |
| Max. load | 2000 kg |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| LED nominal current at constant current | - mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Exchangeable control gear | No |
| Built-in height/depth | -100 mm |
| Power factor | 0.9 |
Downloads
Description
Sicura - asymmetric LED
