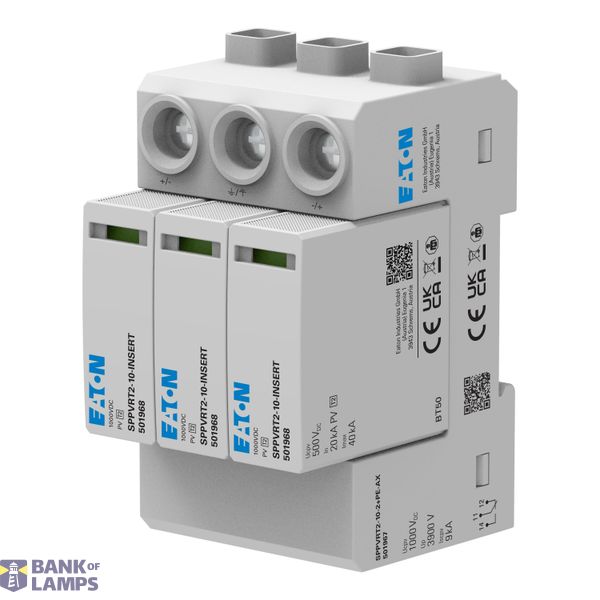

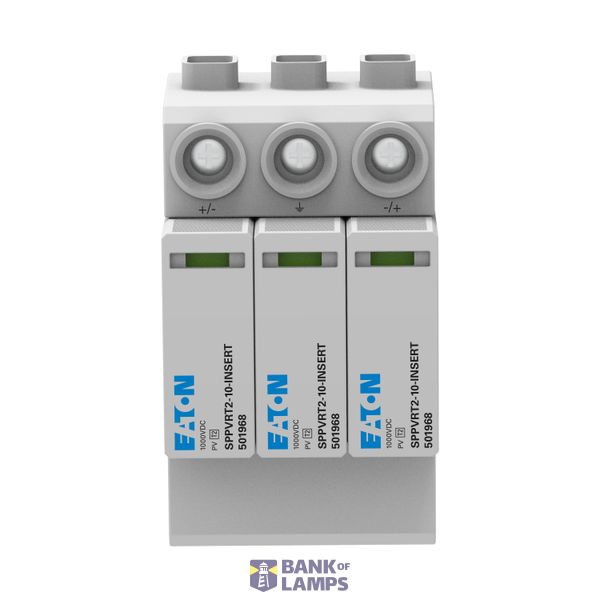

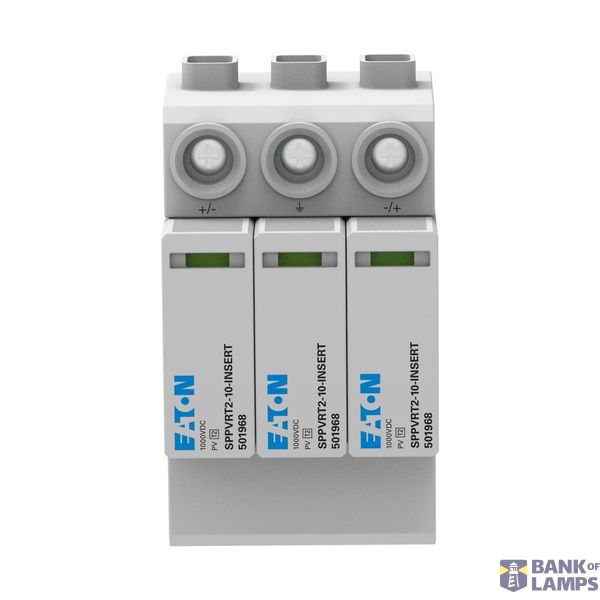

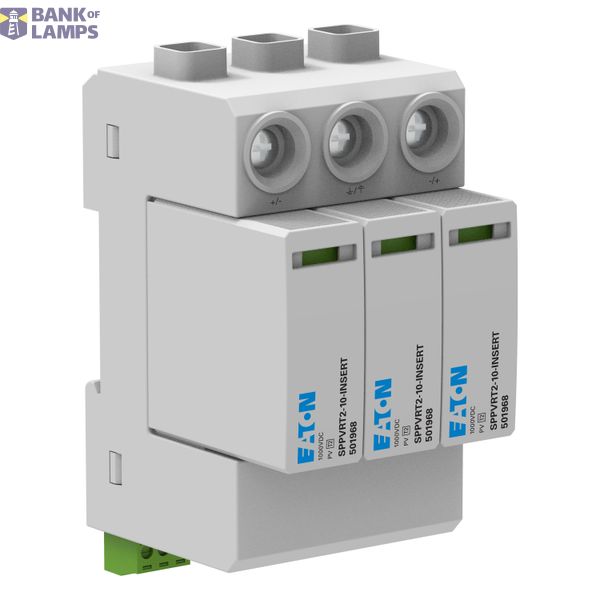

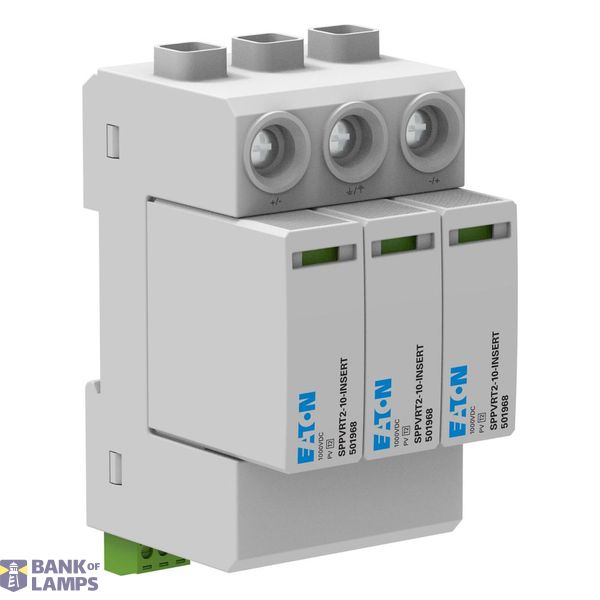

PV-Überspannungsschutz, 1.000 V, Klasse 2 geprüft
Order only
EAN: 9010653062875
MPN: EP-501966
Package: 1
No pricing modes available.
Technical Information
| Item condition | New |
| Manufacture name | PV-SPD, 1000V, class 2 tested |
| Brand | EATON |
| Categories |
Überspannungsschutzgeräte (SPD)
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3090 00 |
| ETIM | EC000941 |
| Voltage protection level | 3.9 kV |
| Nominal discharge surge current (8/20) | 20 kA |
| Nominal voltage DC | 1000 V |
| Voltage protection level L-N | 2.5 kV |
| Degree of protection (IP) | IP20 |
| Max. PV-voltage | 1000 V |
| System configuration DC | Yes |
| System configuration IT | No |
| System configuration TN | No |
| System configuration TN-C-S | No |
Packing details
| Packing level 1 | 9010653062875 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| With remote signalling contact | No |
| Number of conductors (without earthing) | 2 |
| Construction size | 3 modular spacing |
| Category type 2 | Yes |
| Signalling at the device | Optic |
| Max. continuous voltage DC | 1000 V |
| Integrated backup fuse | No |
| Max. conductor cross section solid (solid, stranded) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) | 25 mm² |
| System configuration TN-C | No |
| System configuration TN-S | No |
| System configuration TT | No |
| System configuration other | No |
| Max. discharge surge current (8/20) | 40 kA |
| Short-circuit breaking capacity (Isccr) | 9 kA |
| Integrated short-circuit protection | No |
| Leakage-current free | No |
Downloads
Description
Überspannungsschutz für den Schutz von PV-Anlagen auf der DC-Seite, zur Verwendung gemäß IEC/EN 60364-5-53
