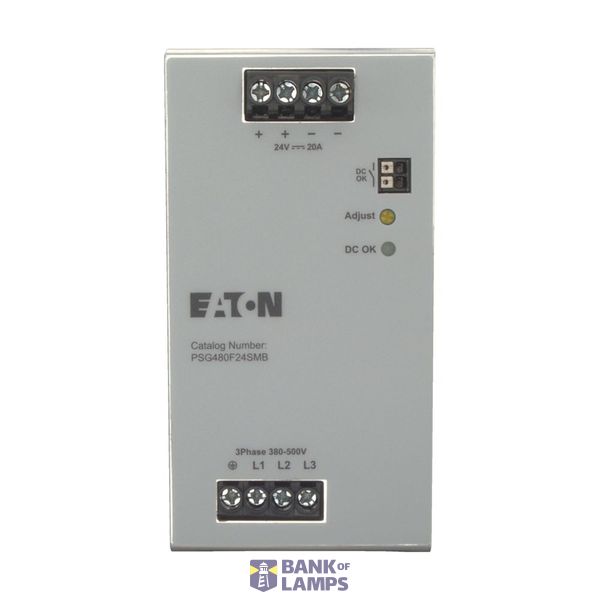

Power supply unit, Three-phase, 320 - 575 V AC / 24 V DC, 20 A, 480 W image 1

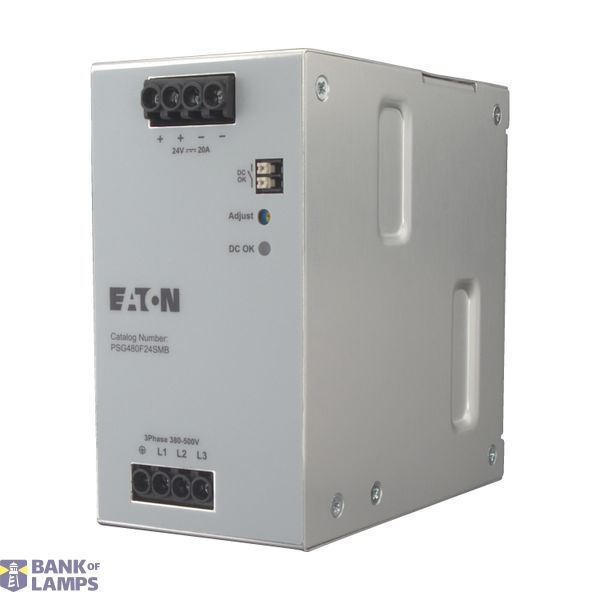

Power supply unit, Three-phase, 320 - 575 V AC / 24 V DC, 20 A, 480 W image 2

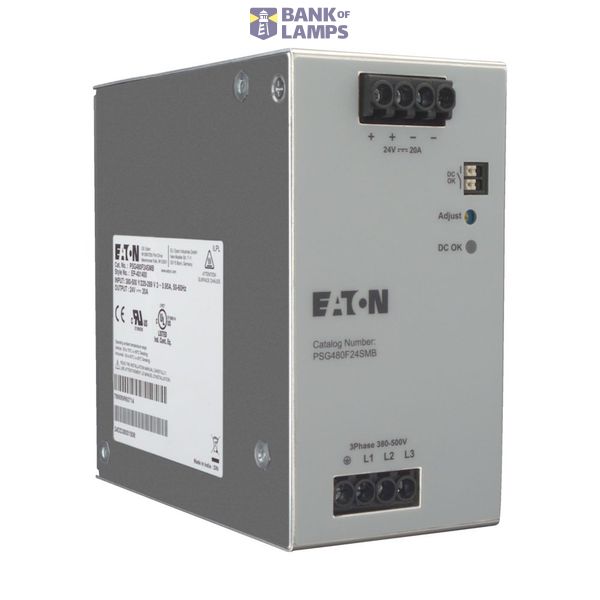

Power supply unit, Three-phase, 320 - 575 V AC / 24 V DC, 20 A, 480 W image 3

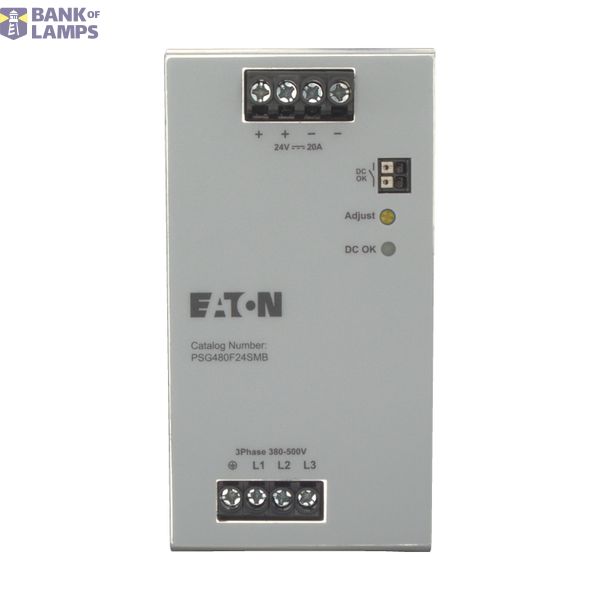

Power supply unit, Three-phase, 320 - 575 V AC / 24 V DC, 20 A, 480 W image 4

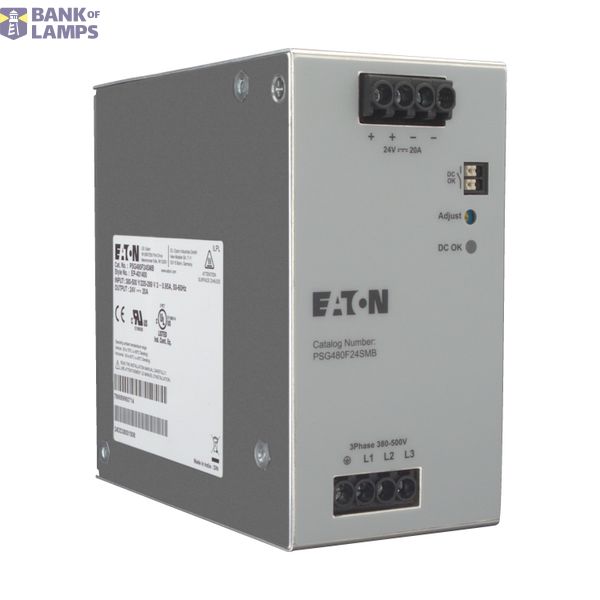

Power supply unit, Three-phase, 320 - 575 V AC / 24 V DC, 20 A, 480 W image 5

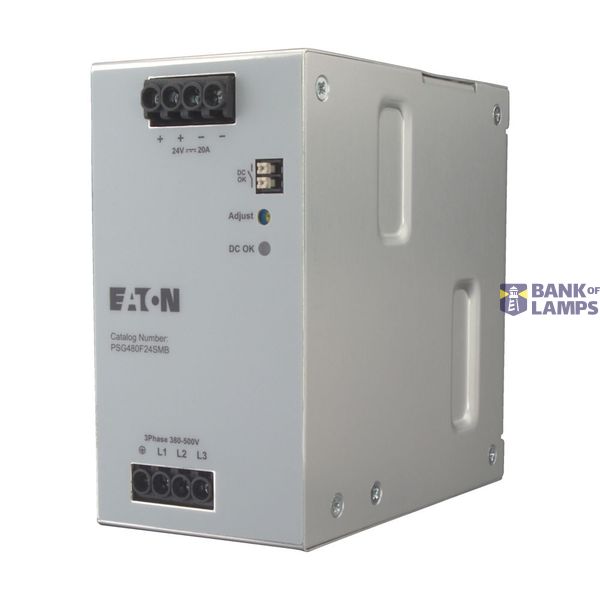

Power supply unit, Three-phase, 320 - 575 V AC / 24 V DC, 20 A, 480 W image 6
Power supply unit, Three-phase, 320 - 575 V AC / 24 V DC, 20 A, 480 W thumbnail 1
Power supply unit, Three-phase, 320 - 575 V AC / 24 V DC, 20 A, 480 W thumbnail 2
Power supply unit, Three-phase, 320 - 575 V AC / 24 V DC, 20 A, 480 W thumbnail 3
Power supply unit, Three-phase, 320 - 575 V AC / 24 V DC, 20 A, 480 W thumbnail 4
Power supply unit, Three-phase, 320 - 575 V AC / 24 V DC, 20 A, 480 W thumbnail 5
Power supply unit, Three-phase, 320 - 575 V AC / 24 V DC, 20 A, 480 W thumbnail 6
EATON

Netzgerät, dreiphasig, 320 bis 575 V AC / 24 V DC, 20 A, 511 W

Order only
EAN: 0786689860714
MPN: EP-401400
Package: 1
No pricing modes available.

Technical Information

Item condition New
Manufacture name Power supply unit, Three-phase, 320 - 575 V AC / 24 V DC, 20 A, 480 W
Brand EATON
Categories DC-Netzteile
Country of origin* IN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
ETIM EC002540
Width 65 mm
Height 127.3 mm
Depth 124 mm
Voltage type of supply voltage AC
Power output 480 W
Rail mounting possible Yes
Wall mounting possible No
1st secondary output voltage 24-28 V
Rated supply voltage at AC 50 Hz 320-575 V
Max. output current 1 20 A
Nominal value output current 1 20 A

Packing details

Packing level 1 0786689860714

Other Technical data

Built-in height 124 mm
Power consumption 511 VA
Built-in width 65 mm
Modular version No
Suitable for safety functions No
Width in number of modular spacings 3.6
Output voltage stabilized Yes
Type of electric connection Screw connection
Stabilized No
Degree of protection (IP) IP20
Direct mounting possible No
Secondary voltage adjustable No
Rated supply voltage at AC 60 Hz 320-575 V
Rated supply voltage at DC 450-800 V
Short-circuit-proof No
Performance level according to EN ISO 13849-1 None
Nominal value output voltage 1 24 V
SIL according to IEC 61508 None
Degree of protection (NEMA) Other

Downloads

Mounting instruction Others Declaration DOC CE (Declaration of conformity CE) Sales brochure

Description

Netzgerät, dreiphasig, Versorgungsspannung: 320 - 575 V AC, Nennausgangsspannung: 24 V DC, Ausgangsstrom: 20 A, Ausgangsleistung: 480 W, Betriebsumgebungstemperatur: -25 bis 70 °C, Verbindung: Schraubanschluss, Überspannungskategorie: II, Verschmutzungsgrad: 2, Anschlussleistung: 511 W
