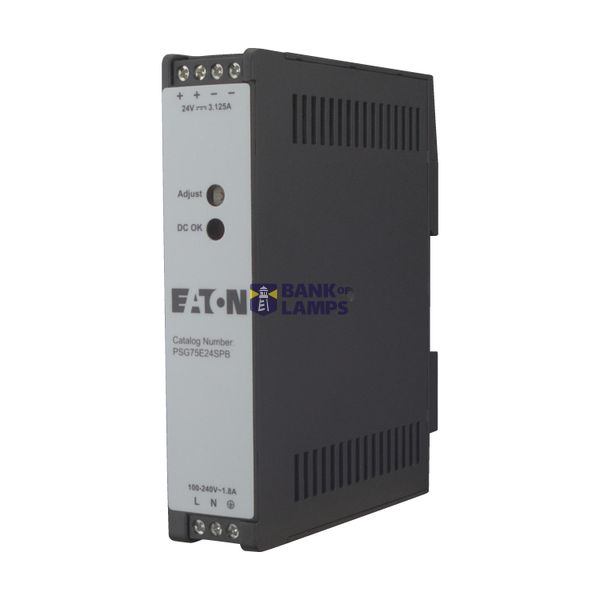

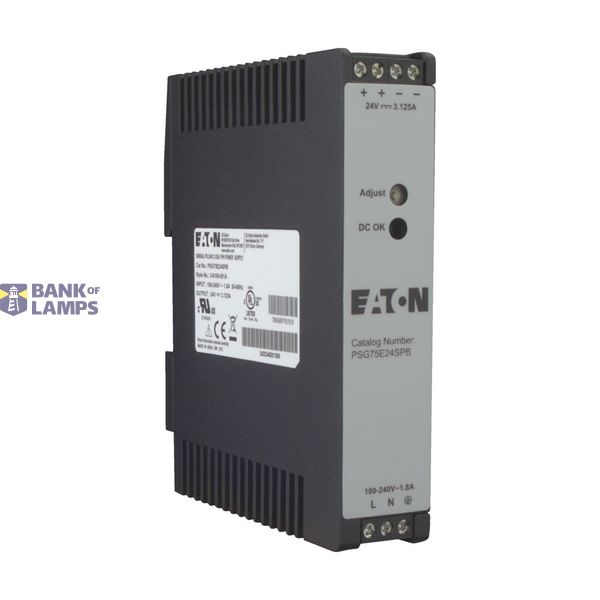

Netzgerät, einphasig, 90 bis 264 V AC / 24 V DC, 3,125 A, 75 W

Order only

EAN: 0786689791919

MPN: EP-401392

Package: 1

No pricing modes available.

Technical Information

Item condition	New
Manufacture name	Power supply unit, Single-phase, 90 - 264 V AC / 24 V DC, 3.125 A, 75
Brand	EATON
Categories	DC-Netzteile
Country of origin*	IN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
ETIM	EC002540
Width	27 mm
Height	102 mm
Depth	123.6 mm
Voltage type of supply voltage	AC
Power output	75 W
Rail mounting possible	Yes
Wall mounting possible	No
1st secondary output voltage	21.6-26 V
Rated supply voltage at AC 50 Hz	90-264 V
Max. output current 1	3.125 A
Nominal value output current 1	3.125 A

Packing details

Packing level 1

0786689791919

Other Technical data

Built-in height	123.6 mm
Power consumption	84 VA
Built-in width	27 mm
Modular version	No
Suitable for safety functions	No
Width in number of modular spacings	1.5
Output voltage stabilized	Yes
Type of electric connection	Screw connection
Stabilized	No
Degree of protection (IP)	IP20
Direct mounting possible	No
Secondary voltage adjustable	No
Rated supply voltage at AC 60 Hz	90-264 V
Rated supply voltage at DC	120-375 V
Short-circuit-proof	No
Performance level according to EN ISO 13849-1	None
Nominal value output voltage 1	24 V
SIL according to IEC 61508	None
Degree of protection (NEMA)	Other

Downloads

Declaration DOC CE (Declaration of conformity CE) Sales brochure Others Mounting instruction

Description

Netzgerät, einphasig, Versorgungsspannung: 90 bis 264 V AC, Nennausgangsspannung: 24 V DC, Ausgangsstrom: 3,125 Ausgangsleistung: 75 W, Betriebsumgebungstemperatur -20 bis 70 °C, Verbindung: Schraubanschluss, Überspannungskategorie: II, Verschmutzungsgrad: 2, Anschlussleistung: 84 W
