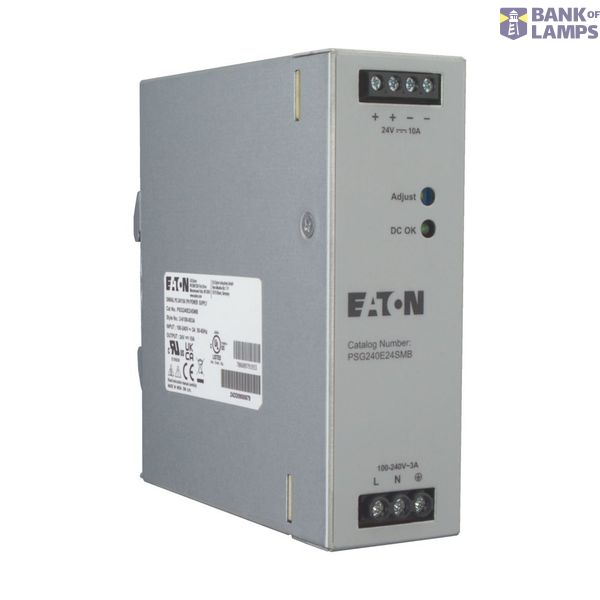

Power supply unit, Single-phase, 90 - 264 V AC / 24 V DC, 10 A, 240 W image 1

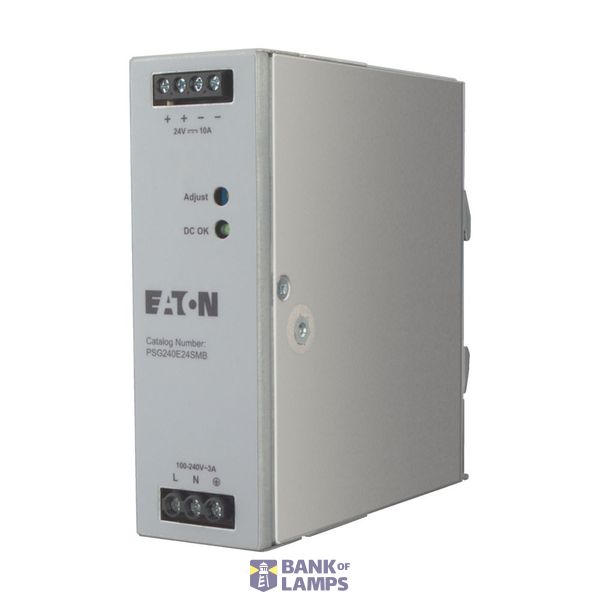

Power supply unit, Single-phase, 90 - 264 V AC / 24 V DC, 10 A, 240 W image 2

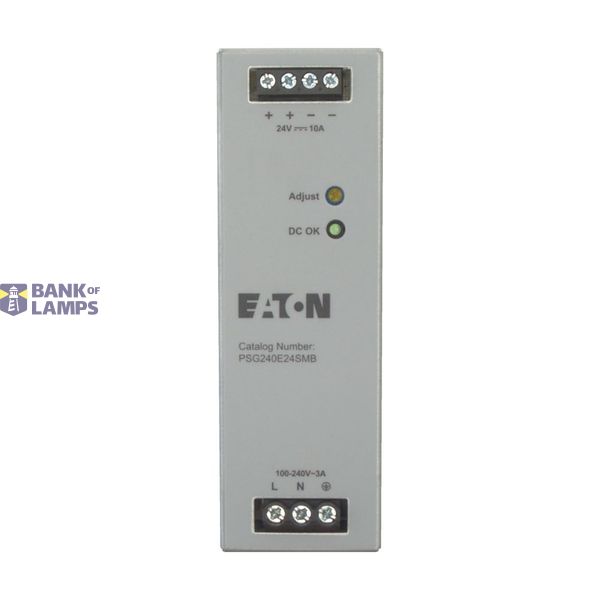

Power supply unit, Single-phase, 90 - 264 V AC / 24 V DC, 10 A, 240 W image 3

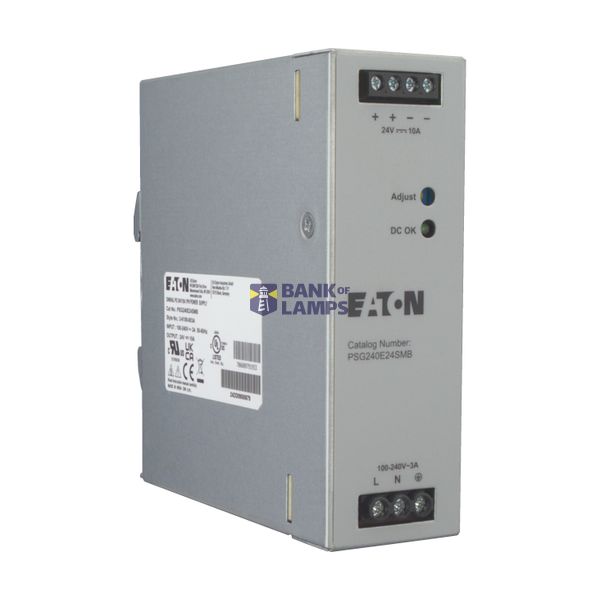

Power supply unit, Single-phase, 90 - 264 V AC / 24 V DC, 10 A, 240 W image 4

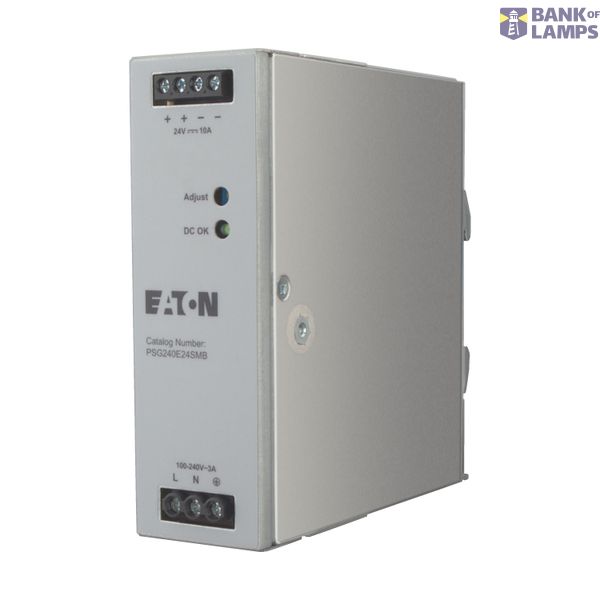

Power supply unit, Single-phase, 90 - 264 V AC / 24 V DC, 10 A, 240 W image 5

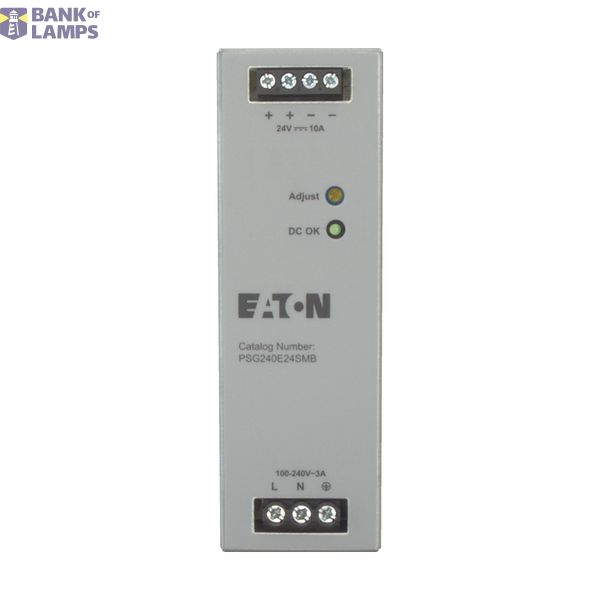

Power supply unit, Single-phase, 90 - 264 V AC / 24 V DC, 10 A, 240 W image 6
Power supply unit, Single-phase, 90 - 264 V AC / 24 V DC, 10 A, 240 W thumbnail 1
Power supply unit, Single-phase, 90 - 264 V AC / 24 V DC, 10 A, 240 W thumbnail 2
Power supply unit, Single-phase, 90 - 264 V AC / 24 V DC, 10 A, 240 W thumbnail 3
Power supply unit, Single-phase, 90 - 264 V AC / 24 V DC, 10 A, 240 W thumbnail 4
Power supply unit, Single-phase, 90 - 264 V AC / 24 V DC, 10 A, 240 W thumbnail 5
Power supply unit, Single-phase, 90 - 264 V AC / 24 V DC, 10 A, 240 W thumbnail 6
EATON

Netzgerät, einphasig, 90 bis 264 V AC / 24 V DC, 10 A, 273 W

Order only
EAN: 0786689791933
MPN: EP-401395
Package: 1
No pricing modes available.

Technical Information

Item condition New
Manufacture name Power supply unit, Single-phase, 90 - 264 V AC / 24 V DC, 10 A, 240 W
Brand EATON
Categories DC-Netzteile
Country of origin* IN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
ETIM EC002540
Width 40 mm
Height 116.8 mm
Depth 123.6 mm
Voltage type of supply voltage AC
Power output 240 W
Rail mounting possible Yes
Wall mounting possible No
1st secondary output voltage 21.6-26 V
Rated supply voltage at AC 50 Hz 90-264 V
Max. output current 1 10 A
Nominal value output current 1 10 A

Packing details

Packing level 1 0786689791933

Other Technical data

Built-in height 123.6 mm
Power consumption 273 VA
Built-in width 40 mm
Modular version No
Suitable for safety functions No
Width in number of modular spacings 2.3
Output voltage stabilized Yes
Type of electric connection Screw connection
Stabilized No
Degree of protection (IP) IP20
Direct mounting possible No
Secondary voltage adjustable No
Rated supply voltage at AC 60 Hz 90-264 V
Short-circuit-proof No
Performance level according to EN ISO 13849-1 None
Nominal value output voltage 1 24 V
SIL according to IEC 61508 None
Degree of protection (NEMA) Other

Downloads

Sales brochure Mounting instruction Declaration DOC CE (Declaration of conformity CE) Others

Description

Netzgerät, einphasig, Versorgungsspannung: 90 bis 264 V AC, Nennausgangsspannung: 24 V DC, Ausgangsstrom: 10 A, Ausgangsleistung: 240 W, Betriebsumgebungstemperatur: -30 bis 70 °C, Verbindung: Schraubanschluss, Überspannungskategorie: II, Verschmutzungsgrad: 2, Anschlussleistung: 273 W
