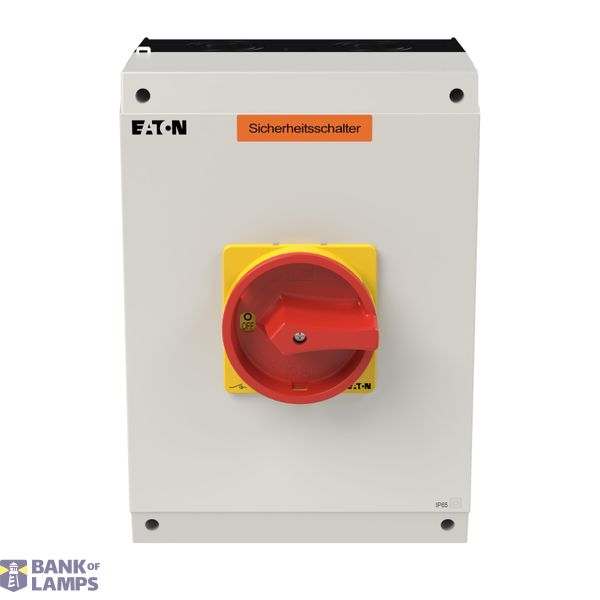

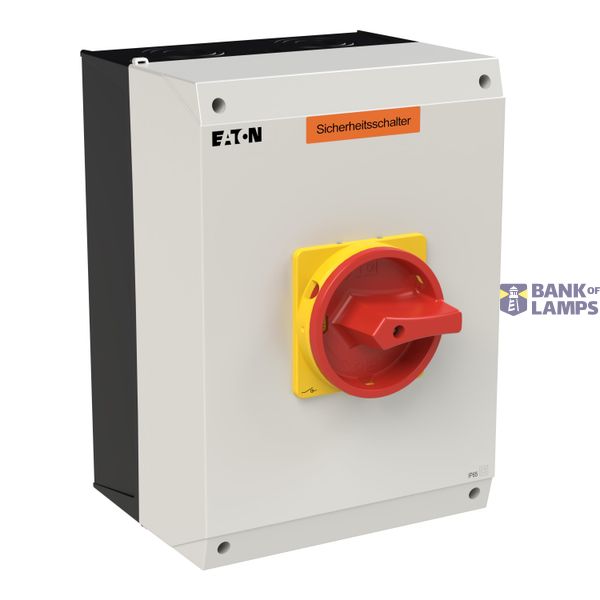

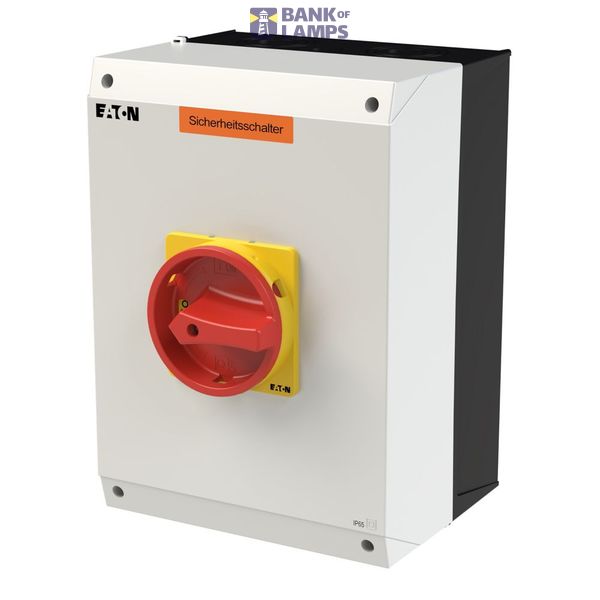

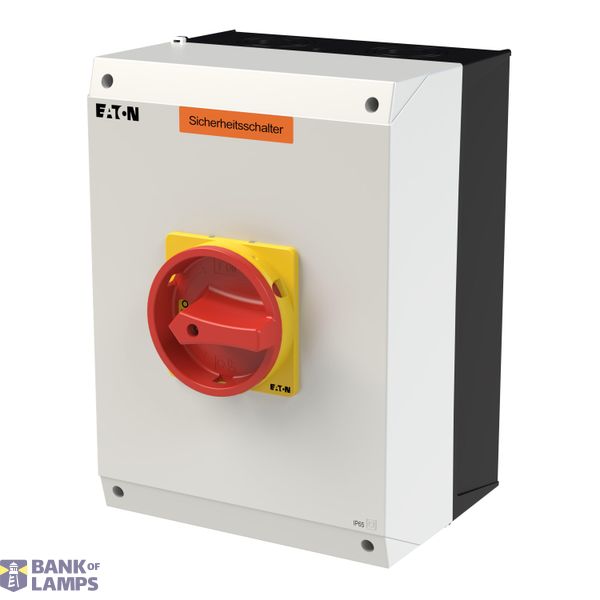

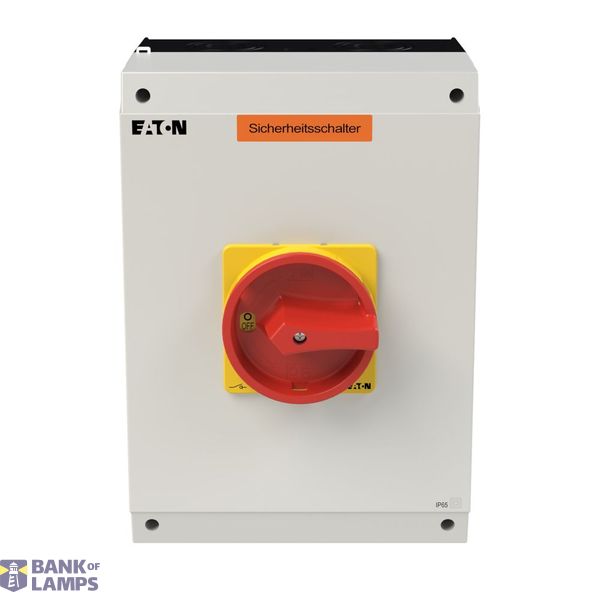

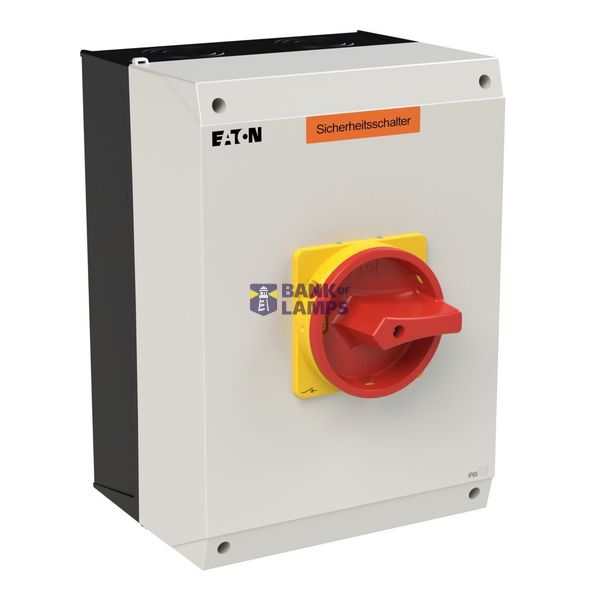

P3 Isolierstoffgehäuse, 80 A, Aufbau, 3-polig, Form I5-SI, rot, Türkup

Order only

EAN: 4015082963736

MPN: EP-400994

Package: 1

No pricing modes available.

Technical Information

Item condition	New
Manufacture name	P3 Insulated enclosure, 80 A,Surface mounting, 3 pole, Form I5-SI, Red
Brand	EATON
Categories	Lasttrennschalter
Country of origin*	GB
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 5080 00
ETIM	EC000216
Rated permanent current Iu	80 A
Number of poles	3
Rated operating voltage	690 V
Degree of protection (IP), front side	IP65
Version as main switch	No
Version as safety switch	Yes
Version as maintenance-/service switch	No
Rated short-time withstand current lcw	2 kA

Packing details

Packing level 1

4015082963736

Other Technical data

Width	200
Height	180
Depth	169
Rated operation power at AC-3, 400 V	30 kW
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
Conditioned rated short-circuit current Iq	80 kA
Number of auxiliary contacts as change-over contact	0
Number of switches	1
Interlockable	Yes
Motor drive integrated	No
Type of electrical connection of main circuit	Screw connection
Version as emergency stop installation	Yes
Type of control element	Door coupling rotary drive
Rated operation power at AC-23, 400 V	30 kW
Colour control element	Red
Suitable for floor mounting	Yes
Suitable for front mounting 4-hole	No
Suitable for front mounting centre	No
Suitable for distribution board installation	No
Suitable for intermediate mounting	No
Max. rated operation voltage Ue AC	690 V
Motor drive optional	No
Voltage release optional	No
Device construction	Complete device in housing
Rated permanent current at AC-21, 400 V	80 A
Switching power at 400 V	55 kW
Version as reversing switch	No
Rated permanent current at AC-23, 400 V	80 A
Degree of protection (NEMA)	12
With pre-assembled cabling	No

Downloads

Declaration DOC CE (Declaration of conformity CE) Others Sales brochure

Description

Sicherheitsschalter, Sortiment: Sicherheitsschalter, Typkenner: P3, Stopp-Funktion: NOT-AUS-Funktion, mit rotem Drehgriff und gelbem Sperrkranz, Hinweis: mit Warnschild „Sicherheitsschalter”, Information zum Lieferumfang: Hilfskontakt oder Neutralleiter kundenseitig montiert., 3-polig, Verriegelungsvorrichtung: abschließbar in 0-Stellung mit Deckelverriegelung, Schutzart: IP65, Bauform: Oberflächenmontage, Bemessungsbetriebsleistung AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Bemessungsdauerstrom: Iu = 100 A, Normen und Bestimmungen: IEC/EN 60947, VDE 0660, IEC/EN 60204, Lasttrennschalter nach IEC/EN 60947-3
