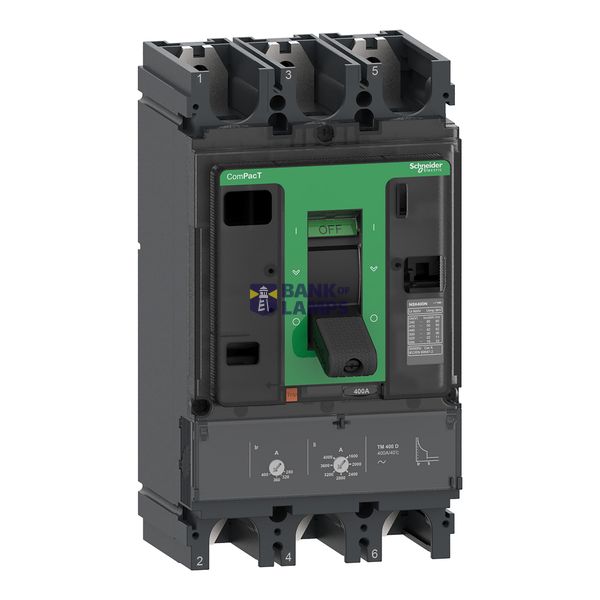

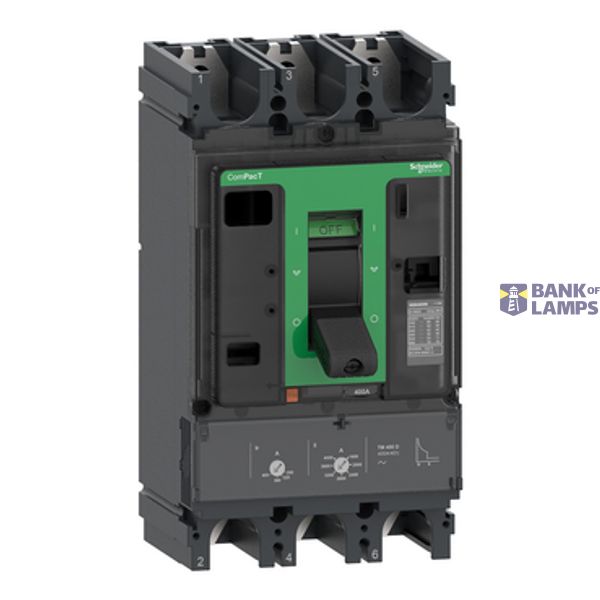

NSX400N 50kA AC 400A TMD 3P3D
Order only
Price (excl. VAT):
1 159,10 €
EAN: 3606481061621
MPN: C40N3TM400
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | NSX400N 50kA AC 400A TMD 3P3D |
| Brand | Schneider Electric |
| Categories |
Leistungsschalter
|
| Country of origin* | IT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 2090 90 |
| ETIM | EC000228 |
| Rated permanent current Iu | 400 A |
| Number of poles | 3 |
| Rated voltage | 690 V |
| Degree of protection (IP) | IP40 |
| With switched-off indicator | Yes |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 50 kA |
| Integrated earth fault protection | No |
| Device construction | Built-in device fixed built-in technique |
Packing details
| Packing level 1 | 3606481061621, 3606481061621 |
Other Technical data
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| With integrated under voltage release | No |
| Overload release current setting | 280-400 A |
| Number of auxiliary contacts as change-over contact | 0 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Toggle |
| Adjustment range undelayed short-circuit release | 1600-4000 A |
| Suitable for DIN rail (top hat rail) mounting | No |
| Motor drive optional | Yes |
| DIN rail (top hat rail) mounting optional | Yes |
| Complete device with protection unit | Yes |
