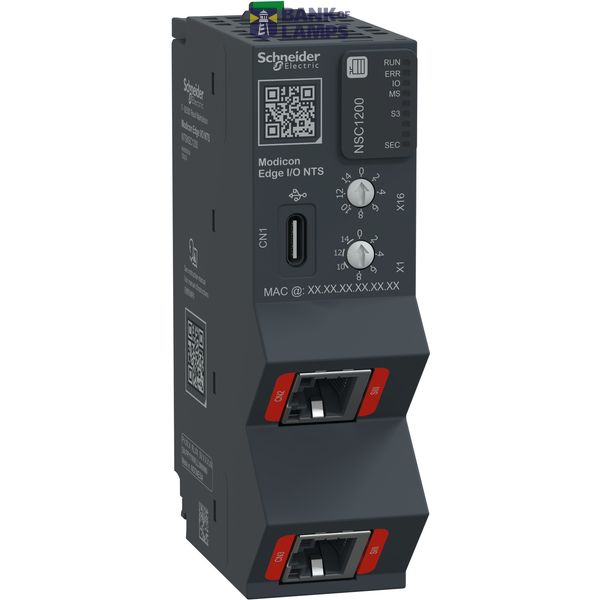

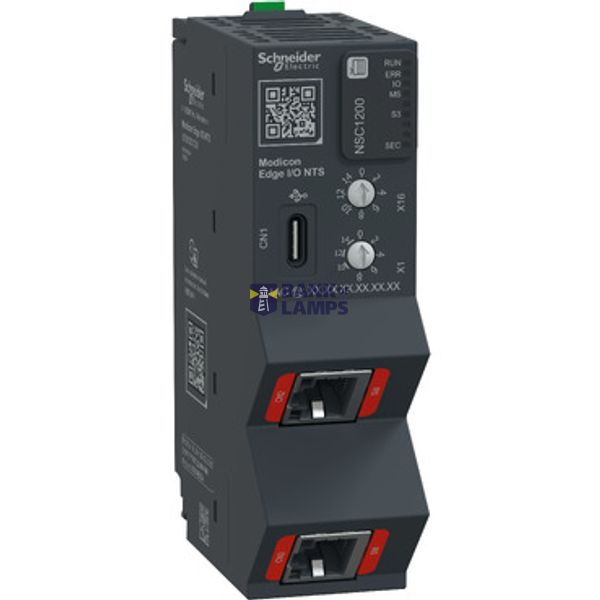

NIM SERCOS III 2RJ45 DL Mod
Order only
Price (excl. VAT):
327,20 €
EAN: 3606486876961
MPN: NTSNSC1200
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | NIM SERCOS III 2RJ45 DL Mod |
| Brand | Schneider Electric |
| Categories |
Industrielle Feldbusmodule
|
| Country of origin* | ID |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8517 6200 00 |
| ETIM | EC001603 |
| Type of voltage (input voltage) | DC |
| With integrated power supply | No |
| Input voltage at DC | 20.4-28.8 V |
| Max. input current DC | 0.14 A |
Packing details
| Packing level 1 | 3606486876961, 3606486876961 |
Other Technical data
| Width | 30 mm |
| Height | 100 mm |
| Depth | 69 mm |
| Suitable for safety functions | No |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 2 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| Number of slots | 2 |
| With pluggable modules, digital I/O | Yes |
| With pluggable modules, analogue I/O | Yes |
| With pluggable modules, communication modules | Yes |
| With pluggable modules, function and technology modules | Yes |
| With pluggable modules, central modules | Yes |
| With pluggable modules, others | Yes |
| With potential separation | No |
| Type of electric connection | Screw-/spring clamp connection |
| Rail mounting possible | Yes |
| With bus coupler for modular station connection | No |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Fieldbus connection over separate bus coupler possible | No |
| System accessory | No |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | Yes |
| Supporting protocol for INTERBUS-Safety | No |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| IO link master | No |
| Performance level according to EN ISO 13849-1 | None |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| SIL according to IEC 61508 | None |
Downloads
Deep link REACH
Declaration RoHS
Mounting instruction
Declaration EPD (Environmental Product Declaration)
Others
Description
Deze netwerkinterfacemodule maakt deel uit van de Modicon Edge I/O NTS-serie. Het functioneert als een netwerkinterface voor een cluster dat gebruikmaakt van het SERCOS III-protocol. Het werkt in full-duplex-uitwisselingsmodus met automatische onderhandeling bij een transmissiesnelheid van 100 Mbit/s en is uitgerust met 2 RJ45-connectoren. Het biedt een manier om apparaten met een netwerk te verbinden, waardoor communicatie tussen verschillende componenten mogelijk wordt. Het functioneert binnen een temperatuurbereik van min 20 tot 60 graden Celsius. De IP-beschermingsgraad is IP20. Het is 108,6 mm hoog, 30 mm breed, 87,8 mm diep en weegt 0,275 kg. Het is compatibel met I/O-modules en montageaccessoires. Het wordt per verpakking verkocht. De module wordt geïnstalleerd op een basis die op een DIN-rail wordt gemonteerd. Modicon Edge I/O NTS is een toekomstbestendig I/O-systeem voor gegevensaggregatie. Modicon Edge I/O NTS is een robuust gedistribueerd IP20 I/O-systeem met een ruime ke
