Motion Ctrl U300 3E

Order only

Price (excl. VAT):

10 545,28 €

This price is valid until next price list or while stock lasts

EAN: 3606487202912

MPN: MN660C153N1010

Package: 1

Estimate delivery time to our warehouse: 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Motion Ctrl U300 3E
Brand	Schneider Electric
Categories	SPS-Steuerungen & E/A-Module
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8537 1091 99
ETIM	EC000236
Model	Modular
Number of digital inputs	0
Number of digital outputs	0
Number of analogue inputs	0
Number of analogue outputs	0
Voltage type of supply voltage	DC
Memory size	4194304 kByte
Number of HW-interfaces industrial Ethernet	4
Number of HW-interfaces other	1
Additional program memory possible	Yes
Supporting protocol for TCP/IP	No
Supporting protocol for SUCONET	No
Supporting protocol for AS-Interface Safety at Work	No
Supply voltage DC	19.2-31.2 V

Packing details

Packing level 1

3606487202912

Other Technical data

Width	100 mm
Height	270 mm
Depth	195 mm
With display	No
Suitable for safety functions	No
Type of memory	RAM
Supporting protocol for LON	No
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Number of HW-interfaces USB	3
Number of HW-interfaces parallel	0
With optical interface	No
Supporting protocol for ASI	No
Supporting protocol for PROFIBUS	No
Supporting protocol for CAN	No
Supporting protocol for INTERBUS	No
Supporting protocol for KNX	No
Supporting protocol for Modbus	No
Supporting protocol for Data-Highway	No
Supporting protocol for DeviceNet	No
Supporting protocol for other bus systems	No
Redundancy	No
Rail mounting possible	No
Explosion safety category for gas	None
Explosion safety category for dust	None
System accessory	No
Appendant operation agent (Ex ia)	No
Appendant operation agent (Ex ib)	No
Supporting protocol for SERCOS	Yes
Supporting protocol for INTERBUS-Safety	No
Number of interfaces PROFINET	0
Number of HW-interfaces Wireless	0
Front built-in possible	No
Rack-assembly possible	No
Wall mounting/direct mounting	Yes
Radio standard Bluetooth	No
Radio standard Wi-Fi 802.11	No
IO link master	No
Number of relay outputs	0
Max. number of time switches	0
Performance level according to EN ISO 13849-1	None
Supporting protocol for DeviceNet Safety	No
Supporting protocol for EtherNet/IP	No
Supporting protocol for Foundation Fieldbus	No
Supporting protocol for PROFINET CBA	No
Supporting protocol for PROFINET IO	No
Supporting protocol for PROFIsafe	No
Supporting protocol for SafetyBUS p	No
Radio standard GPRS	No
Radio standard GSM	No
Radio standard UMTS	No
Long-Term Evolution (LTE)	No
SIL according to IEC 61508	None
Supporting protocol for IEC 61850 Ethernet	No
Supporting protocol for DNP3	No
Supporting protocol for IEC 60870	No

Downloads

Declaration RoHS Mounting instruction Others Declaration EPD (Environmental Product Declaration) Deep link REACH

Description

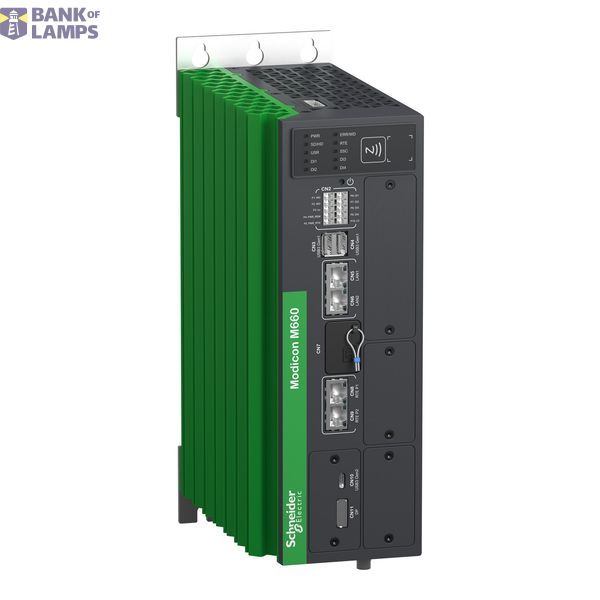

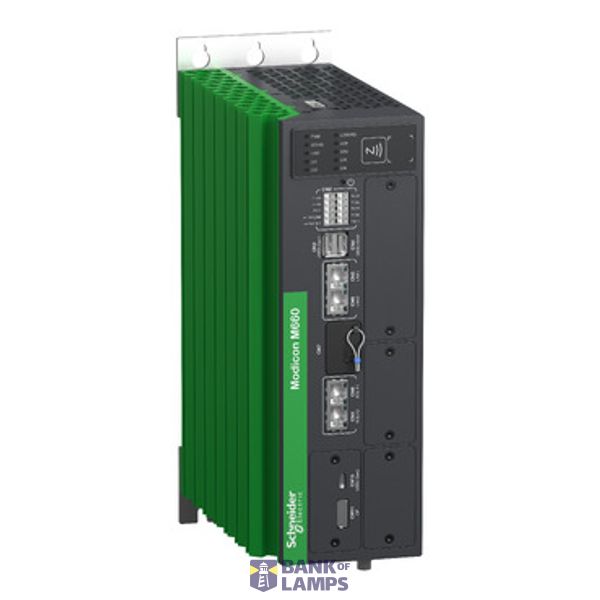

Dit product maakt deel uit van Modicon M660, een reeks hoogwaardige bewegingscontrollers met IPC-mogelijkheden voor bewegingscontrolesystemen en computing. Het is een bewegingscontroller die ontworpen werd voor volledige bewegingssturing, met inbegrip van gesynchroniseerde beweging, mechatronische en robotische functies. Deze bewegingscontroller heeft een Intel U300 Multicore processor en 4 GB RAM. Het beheert en voert computertaken uit via een realtime besturingssysteem. Deze bewegingscontroller kan tot 16 assen beheren op Sercos III. Het communiceert met 2 Single Ethernet 100/1000/2,5G Base-T (TSN ondersteuning) en 1 Dual Ethernet (schakelaar) 100/1000 Base-T (TSN ondersteuning). Apparaten worden aangesloten met 2 USB 3.1 (5 Gbps) poorten van het type A, 1 USB 2.0 poort van het type A 480Mbps en 1 NFC (near field Communication) poort. Het is 310mm hoog, 100mm breed en 197,75mm diep. Het weegt 4.650kg. Het voert bewegingscontrolesystemen uit in E&E, voedsel- en drankenindustrie, verp
