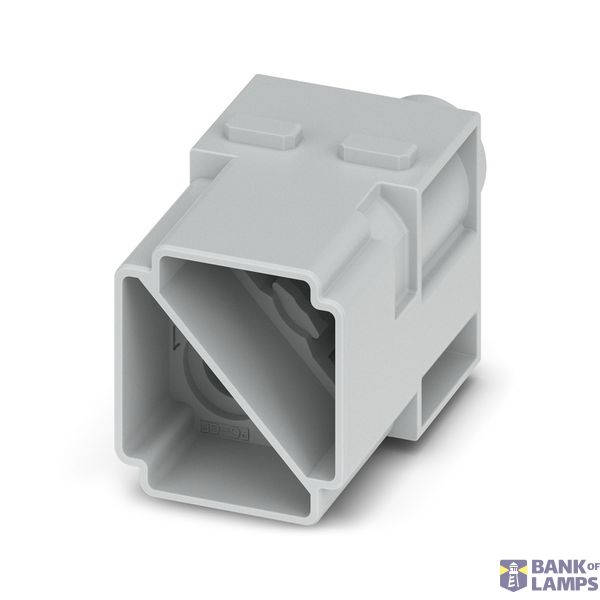

Module insert for industrial connectors (Power/Signal), 1000 V, 100 A,
Order only
Price (excl. VAT):
10,40 €
EAN: 4099987663465
MPN: 3157240000
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Module insert for industrial connectors (Power/Signal), 1000 V, 100 A, |
| Brand | Weidmüller |
| Categories |
Rechtecksteckverbinder
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC000438 |
| Rated voltage | 1000 V |
| Type of electric connection | Crimp connection |
| Over voltage category | III |
Packing details
| Packing level 1 | 4099987663465, 4099987663465 |
Other Technical data
| Width | 29.3 mm |
| Height | 52.2 mm |
| Depth | 33.8 mm |
| With wire protection | No |
| Number of poles | 2 |
| Contact type | Pin |
| Ambient temperature | -40-125 °C |
| Operating temperature | -40-125 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Rated surge voltage | 8 kV |
| Pollution degree | 3 |
| Contact insert without contacts | Yes |
| Connectable conductor cross section solid-core | 10-35 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 10-35 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 10-35 mm² |
| Connectable conductor cross section multi-wired | 10-35 mm² |
| With protective conductor | No |
| Material contact | Other copper alloys |
| Material connector insert | Thermoplastic |
| Rated current In | 100 A |
| Material of contact insert | Thermoplastic |
Description
Module insert for a heavy-duty connector for transferring Power or Signal
Accessories
Order only
209,60 €
EAN: 4050118288933
MPN: 1480380000
Box: 1
