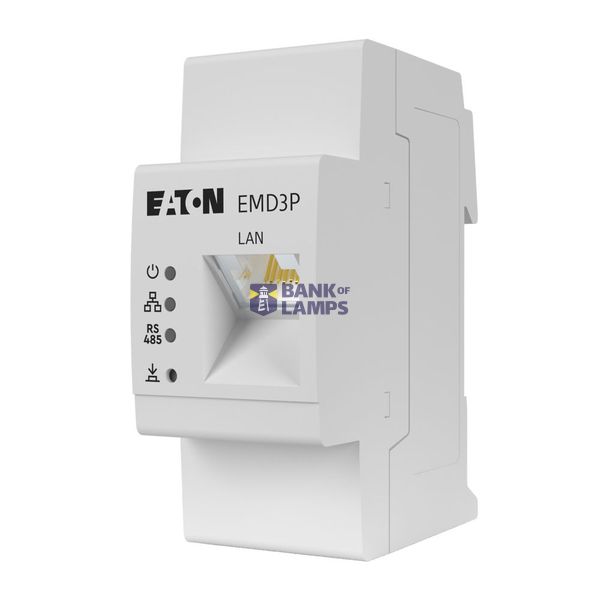

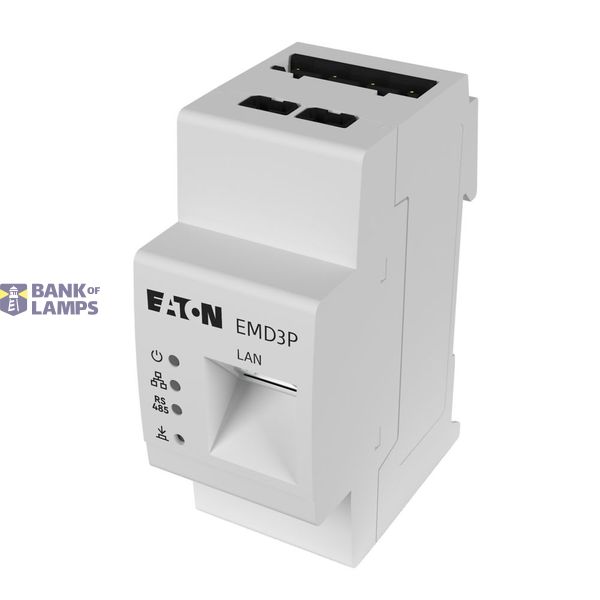

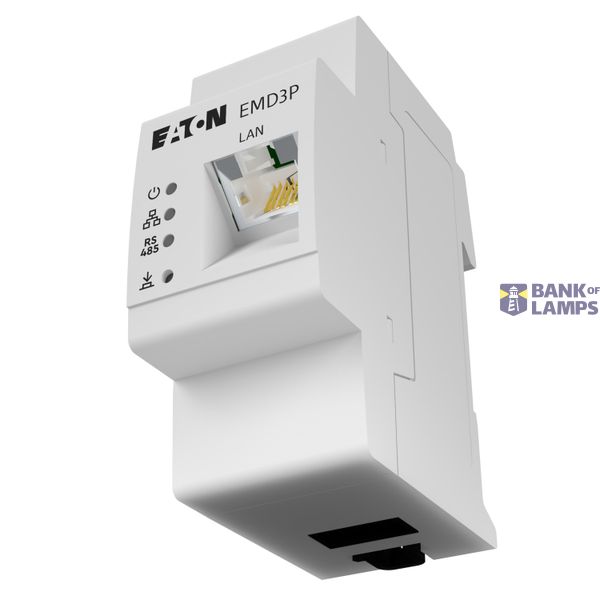

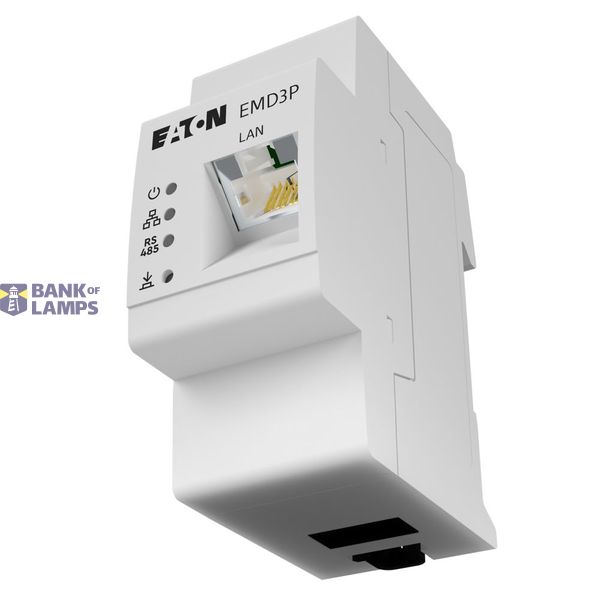

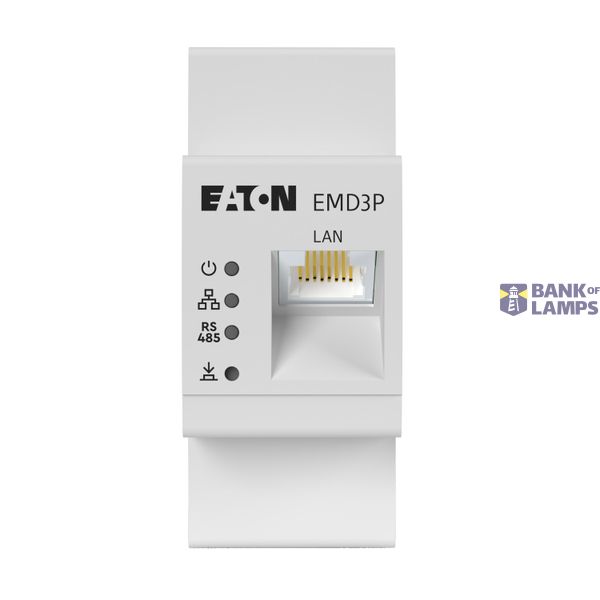

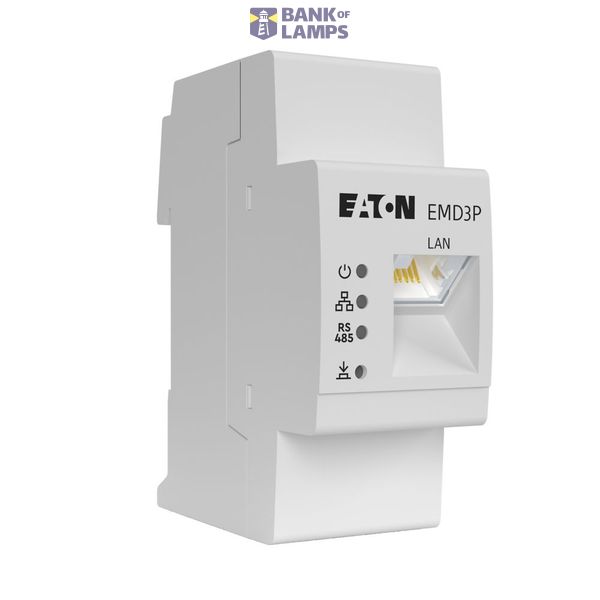

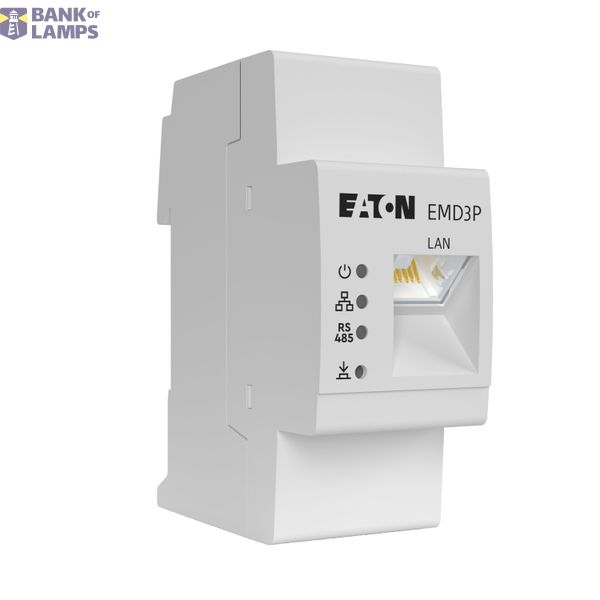

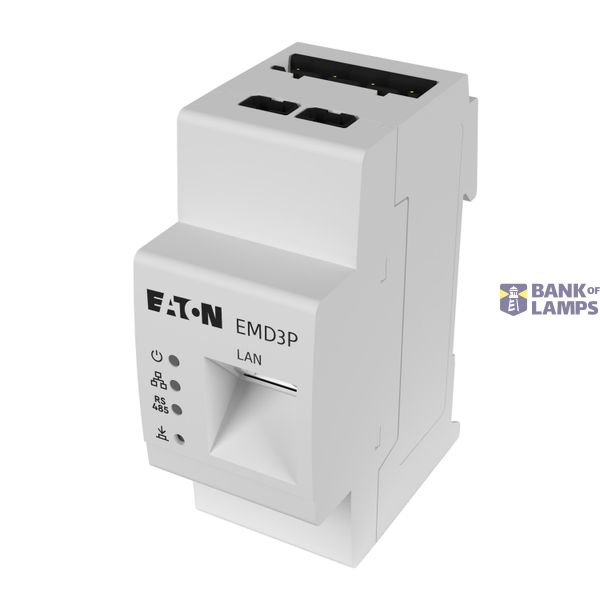

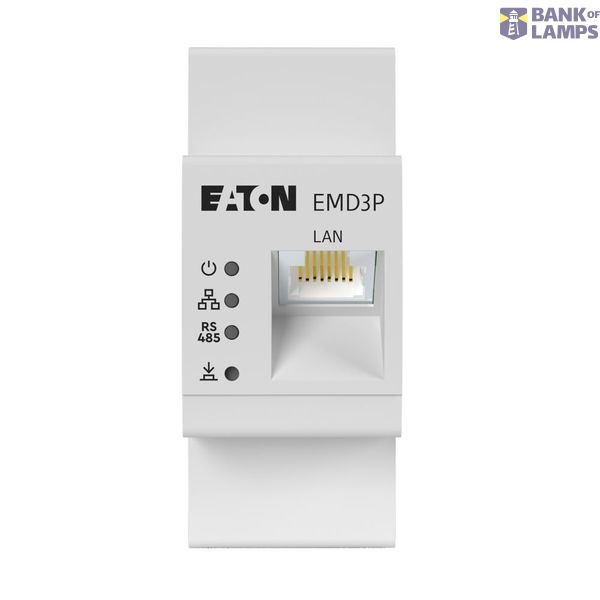

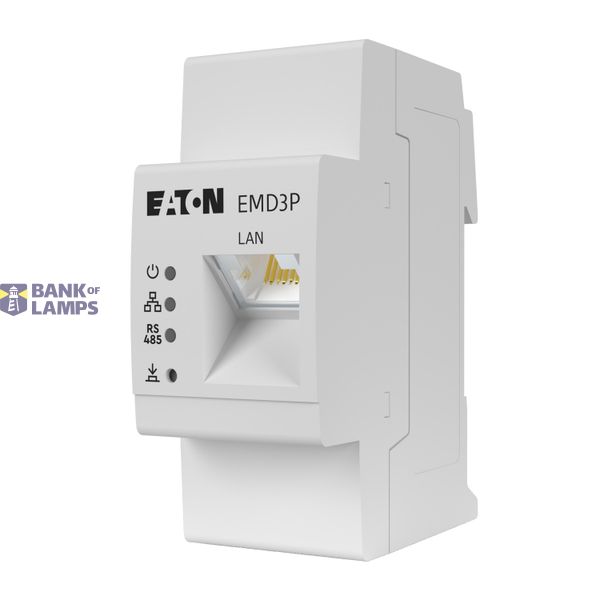

Zähler, 3P, DIN, ModBus, 600 A
Order only
EAN: 9010653087670
MPN: EP-502641
Package: 1
No pricing modes available.
Technical Information
| Item condition | New |
| Manufacture name | Meter, 3P, DIN, Modbus-TCP, 600A |
| Brand | EATON |
| Categories |
Stromzähler & Energiemessgeräte
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8504 3129 00 |
| ETIM | EC001506 |
| Mounting method | DRA (DIN-rail adapter) |
| Width | 35 mm |
| Height | 65 mm |
| Depth | 88 mm |
| Frequency | 50-60 Hz |
| Max. current (Imax) | 600 A |
| Width in number of modular spacings | 2 |
| Degree of protection (IP) | IP2X |
| Pole type | Three conductor/four conductor |
| Nominal voltage (Un) N-L | 230-250 V |
| Nominal current (In) | 600 A |
Packing details
| Packing level 1 | 9010653087670 |
Other Technical data
| Model | Measurement transformer |
| Suitable for | Purchase/supply |
| Type of indication | None |
| Number of positions total (counter) | 20 |
| Type of meter | Electronic |
| Type of interface | Modbus |
| Energy type | Effective power and blind power |
| Escapement mechanism | Yes |
| Calibrated | No |
| Approval | Domestic |
| Pulse output | None |
| Accuracy class | A |
| Measurement type load profile | No |
| EEC40 signature | No |
| With lock code | No |
| Nominal voltage (Un) L-L | 400-433 V |
| Degree of protection (NEMA) | 1 |
Downloads
Description
Eaton EMD3P Stromzähler, 3P, DIN, ModB-TCP, 600 A
