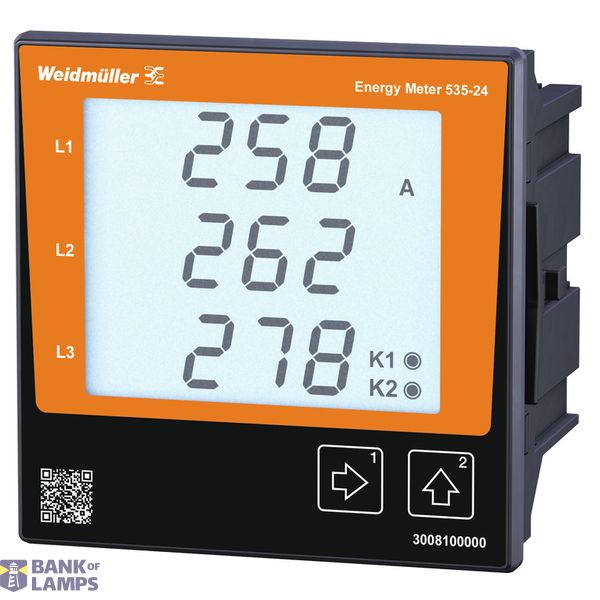

Measuring device electrical quantity, 480 V, Modbus/TCP, Modbus RTU ov
Order only
Price (excl. VAT):
511,25 €
EAN: 4099986909427
MPN: 3008100000
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Measuring device electrical quantity, 480 V, Modbus/TCP, Modbus RTU ov |
| Brand | Weidmüller |
| Categories |
Hutschienen-Messgeräte
|
| Country of origin* | ES |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9030 3200 00 |
| ETIM | EC002301 |
| Display | LCD |
Packing details
| Packing level 1 | 4099986909427, 4099986909427 |
Other Technical data
| Width | 97 mm |
| Height | 96 mm |
| Depth | 48 mm |
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for other bus systems | No |
| Degree of protection (IP), front side | IP40 |
| Ethernet-connections | 1 |
| Ampere meter | Yes |
| Blind power meter | Yes |
| With rotational speed meter | No |
| Frequency meter | Yes |
| Pulse counter | No |
| Voltmeter | Yes |
| Effective power measurement device | Yes |
| Supporting protocol for PROFINET IO | No |
| Supply voltage AC 50 Hz | 24-90 V |
| Supply voltage AC 60 Hz | 24-90 V |
| Supply voltage DC | 24-90 V |
| Measuring range for frequency | 45-65 Hz |
| Sampling frequency | 25.6 Hz |
| Supporting protocol for IEC 61850 Ethernet | Yes |
| Supporting protocol for OPC UA PubSub | No |
| With audit logging (audit log) | No |
| With firmware signature | No |
| With logging of security events (security event log) | No |
| With Role Based Access Control (RBAC) | No |
| Web server with HTTPS transfer protocol | No |
| Remote display | Yes |
Description
Allows for the detailed measurement of production facilities.
