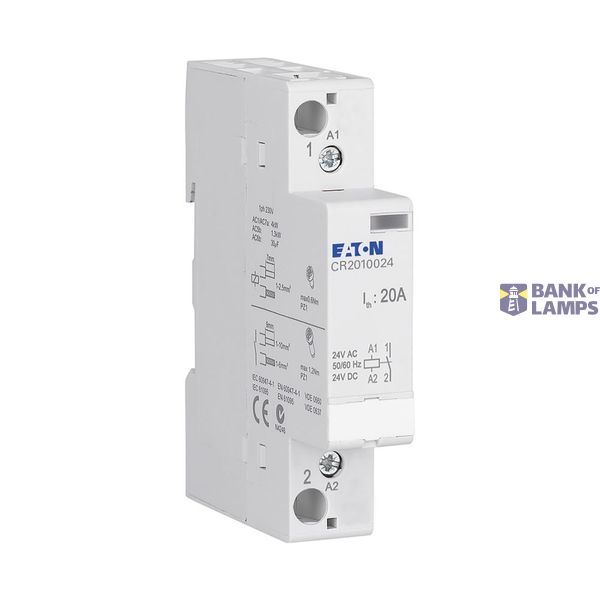

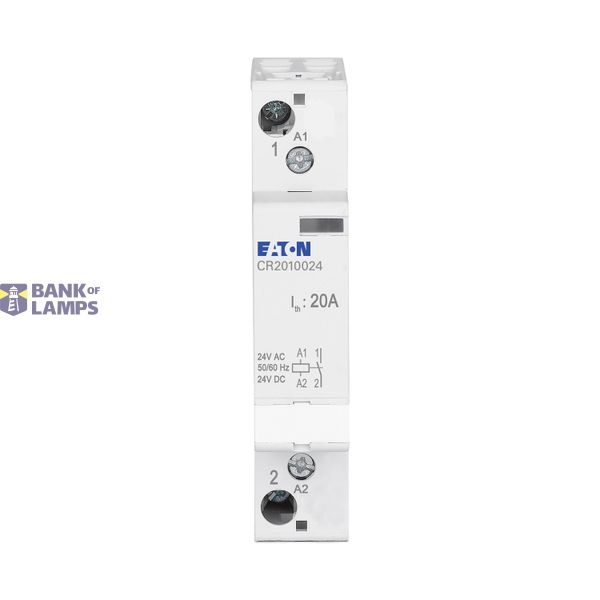

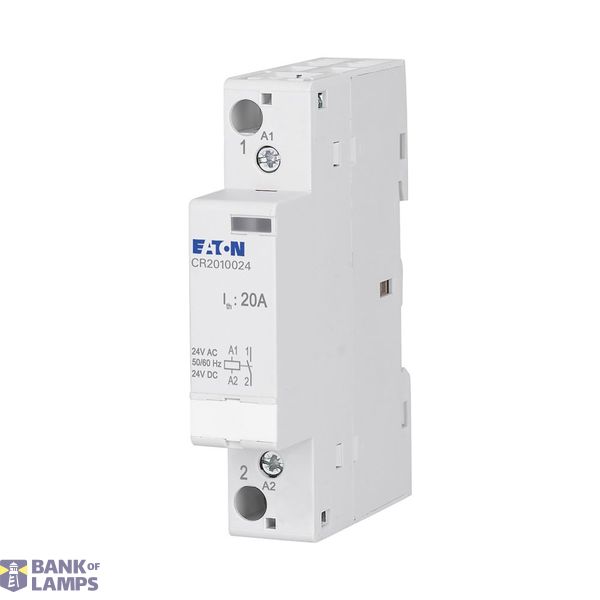

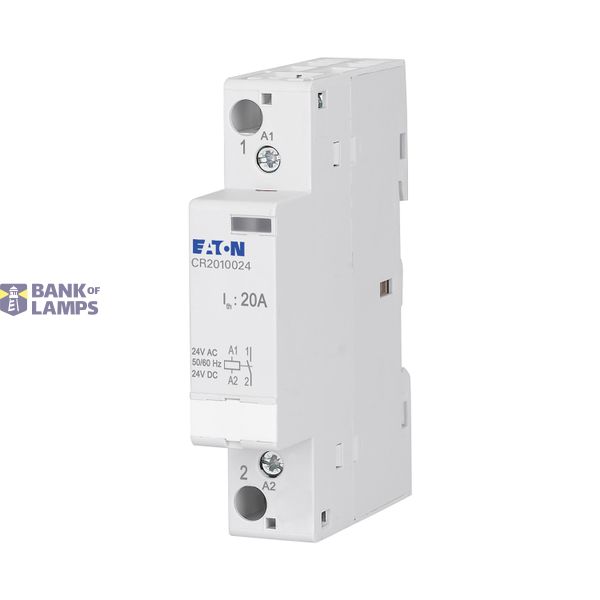

Installationsschütz, 20 A, 24 V AC/DC, 1 S
Order only
EAN: 9010653072065
MPN: EP-502134
Package: 1
No pricing modes available.
Technical Information
| Item condition | New |
| Manufacture name | Installation contactor, 20A, 24V AC/DC, 1NO |
| Brand | EATON |
| Categories |
Montagezubehör & Ersatzteile
|
| Country of origin* | SI |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 4190 00 |
| ETIM | EC001653 |
| Rated operating voltage | 230 V |
| Voltage type (excitation voltage) | AC/DC |
| Voltage type (operating voltage) | AC/DC |
| Degree of protection (IP) | IP20 |
| Rated operation current | 20 A |
| Rated excitation voltage | 24 V |
Packing details
| Packing level 1 | 9010653072065 |
Other Technical data
| Built-in depth | 60 mm |
| Width in number of modular spacings | 1 |
| Max. incandescent lamp load | 1950 W |
| Max. load fluorescent lamp | 910 VA |
| Max. load fluorescent lamp (Duo circuit) | 1160 VA |
| Max. load fluorescent lamp (parallel compensated) | 232 VA |
| Slider for hand switch | No |
| Additional equipment possible | Yes |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
| Hum-free | Yes |
| With day/night function | No |
Downloads
Description
Installationsschütz, Steuerspannung 24 V AC/DC, Bemessungsbetriebsstrom bei AC1 20 A, Funktion: 1 S, Details nach IEC/EN 61095, IEC/EN 60947-4-1, Kappenmaß 45 mm, Montagebreite 1 TE, Hutschienenmontage
