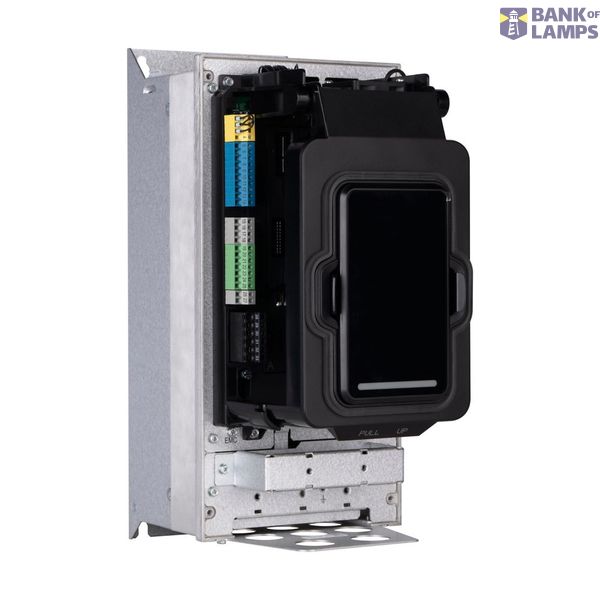

High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 1

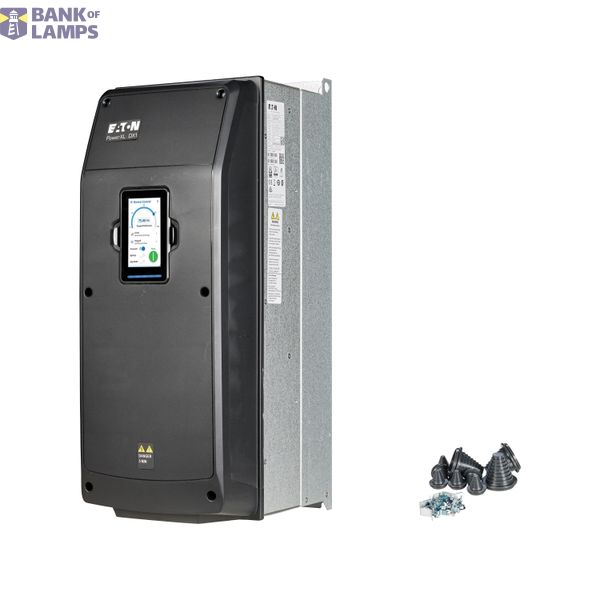

High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 2

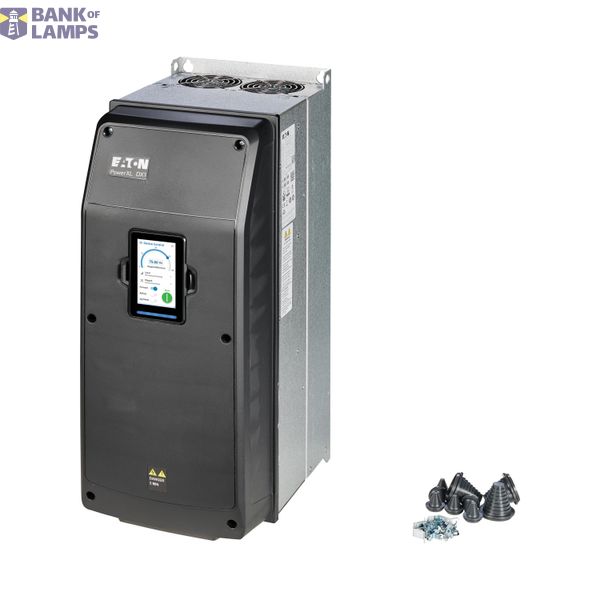

High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 3

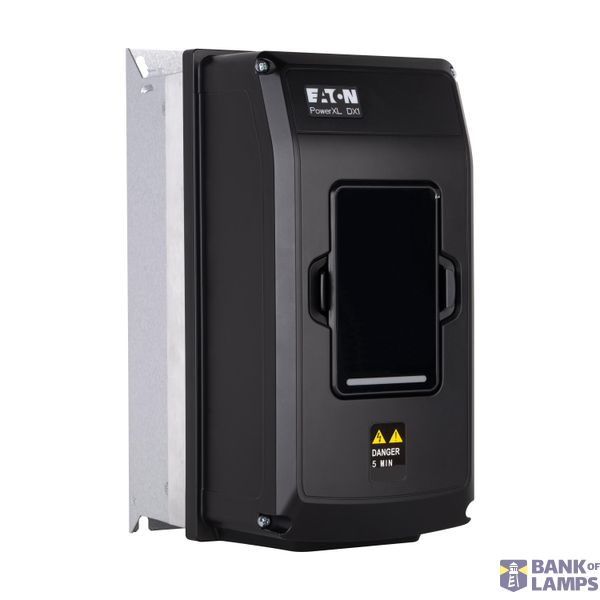

High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 4
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 5

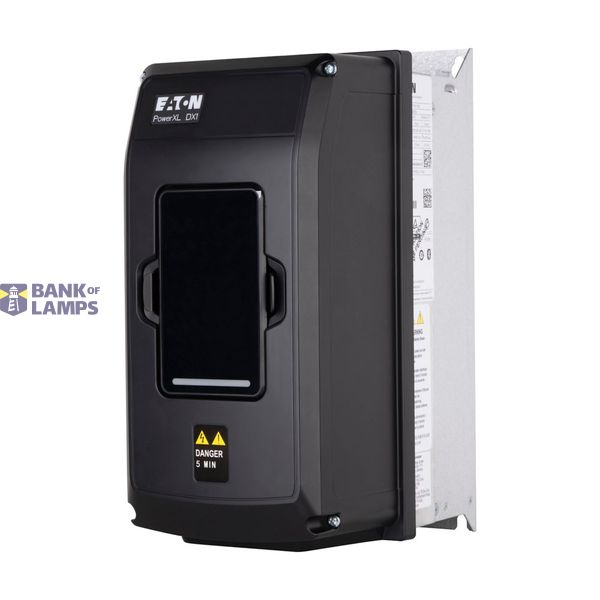

High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 6
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 7

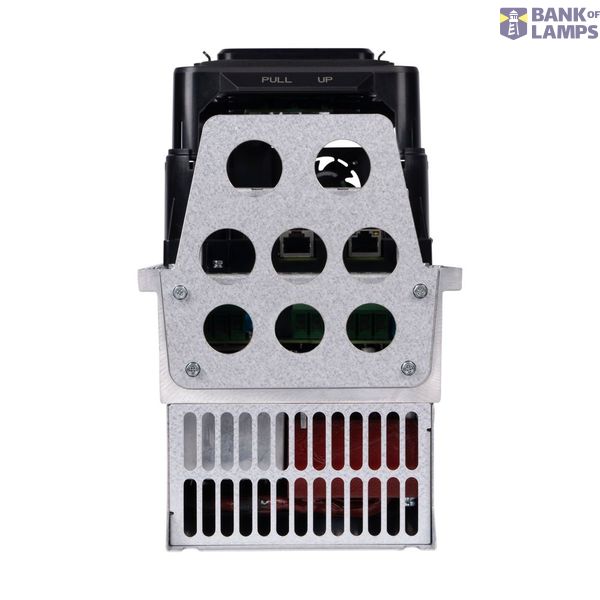

High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 8

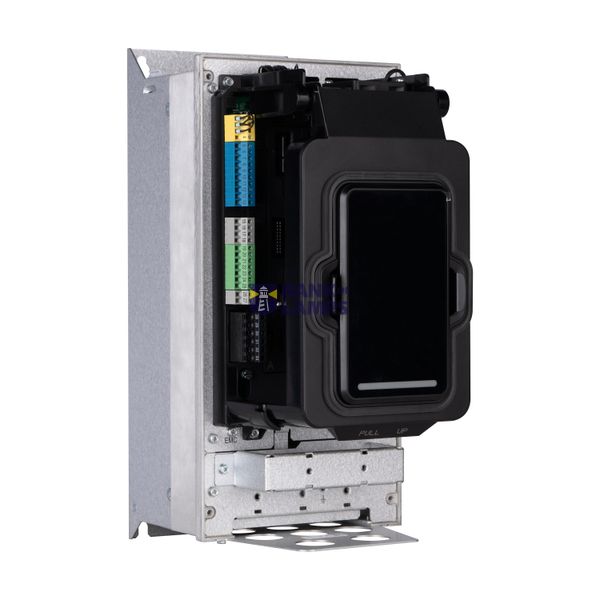

High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 9

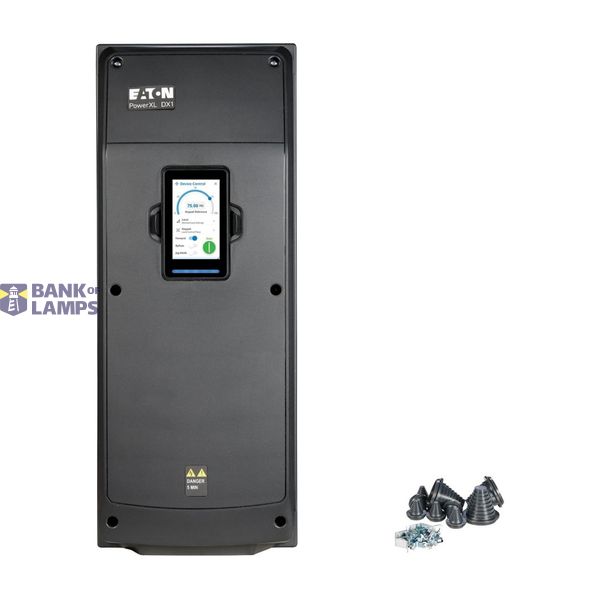

High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 10

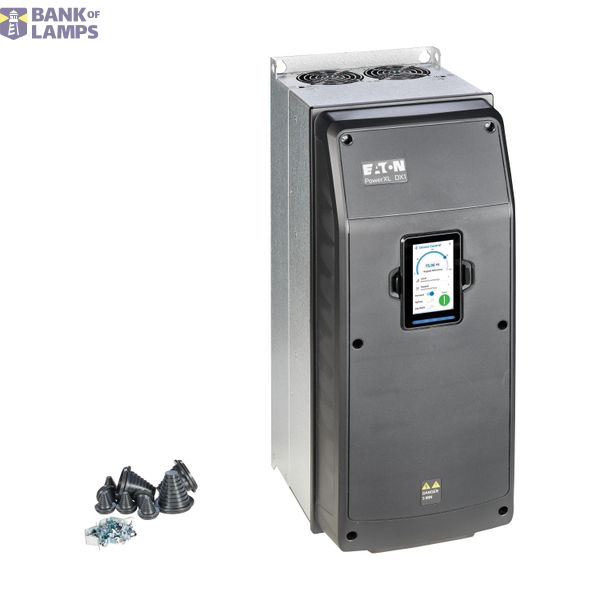

High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 11

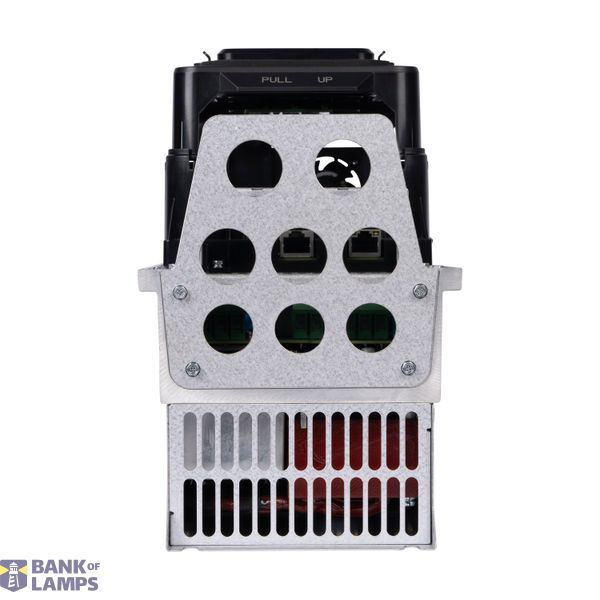

High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 12

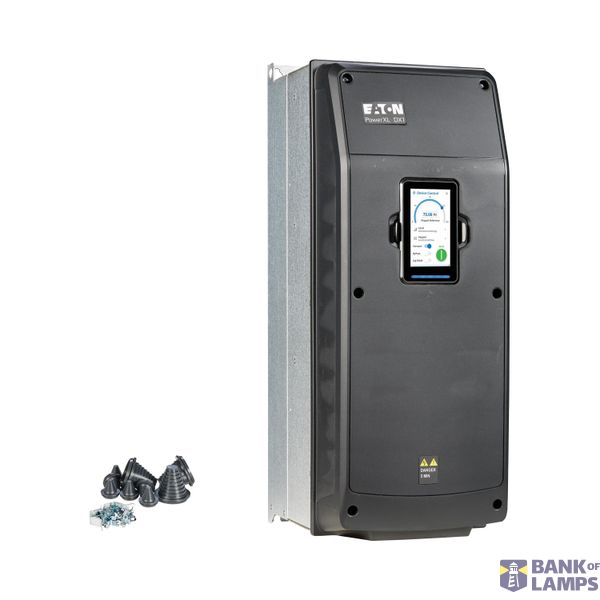

High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 13
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 14
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 15
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 16
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 17

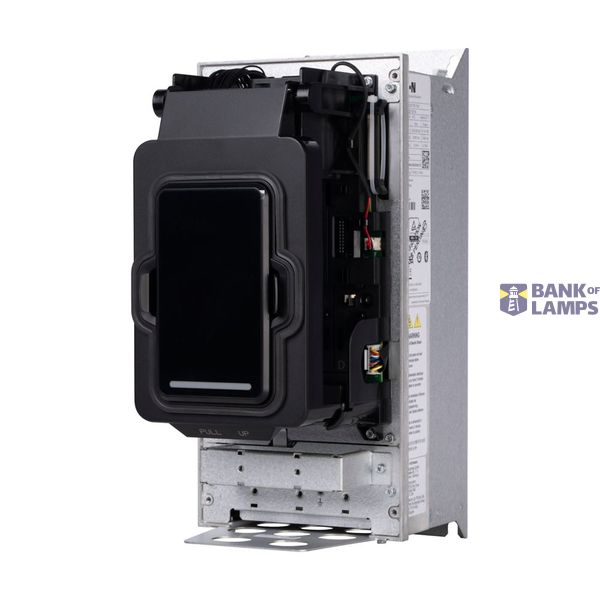

High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 18

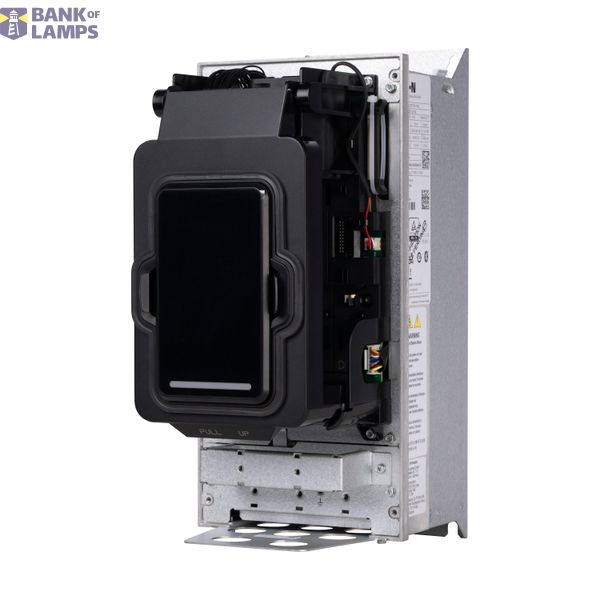

High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 19

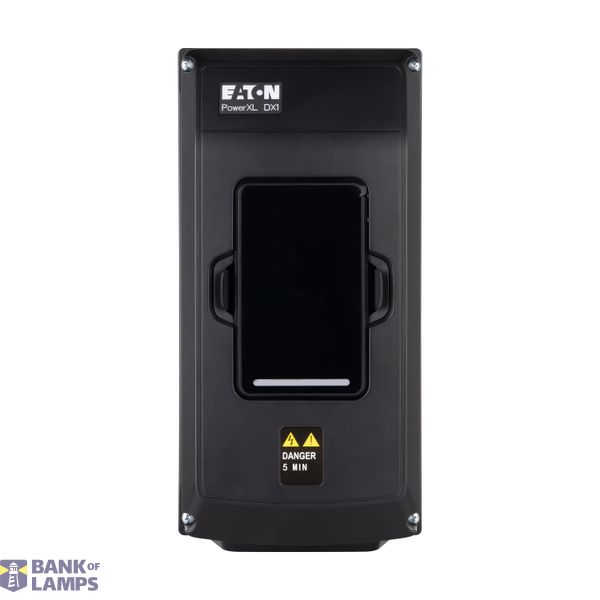

High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 20
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 21

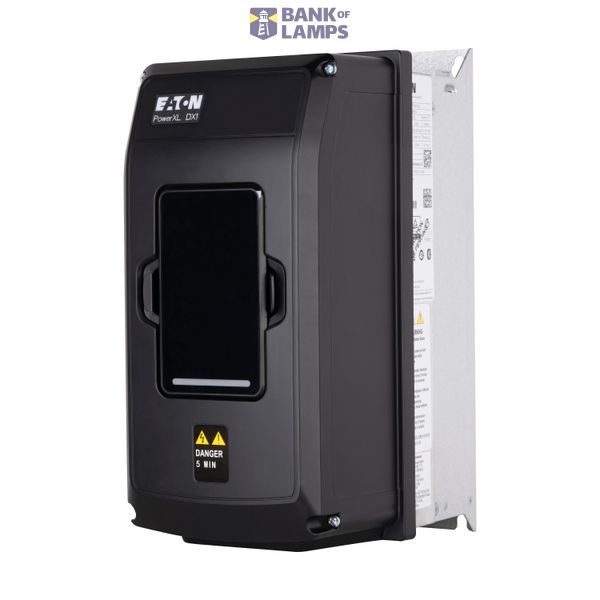

High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 22

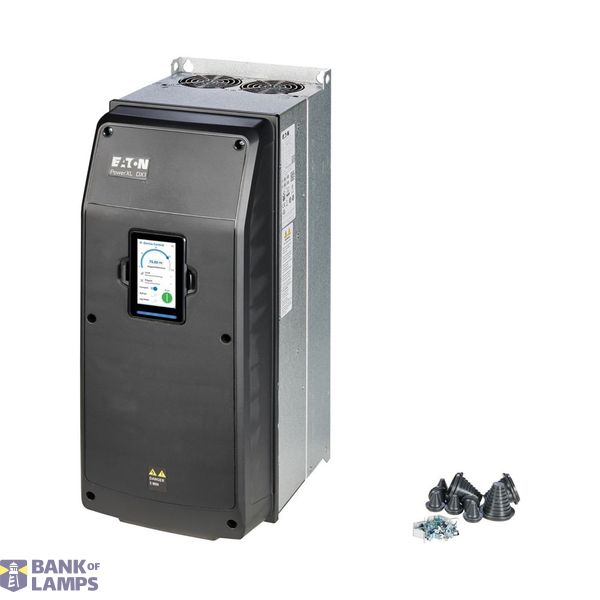

High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 23
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 image 24
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 1
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 2
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 3
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 4
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 5
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 6
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 7
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 8
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 9
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 10
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 11
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 12
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 13
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 14
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 15
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 16
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 17
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 18
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 19
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 20
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 21
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 22
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 23
High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4 thumbnail 24
EATON

High Performance Frequenzumrichter, Dreiphasig, 240 V, 88 A, 37 kW/45

Order only
EAN: 0786689830717
MPN: DX1-32075FB-T21CE
Package: 1
No pricing modes available.

Technical Information

Item condition New
Manufacture name High Performance Frequency inverter, Three-phase, 240 V, 88 A, 37 kW/4
Brand EATON
Categories Frequenzumrichter bis 1 kV
Country of origin* DO
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
ETIM EC001857
Mains voltage 208-240 V
Mains frequency 50/60 Hz
Number of phases input 3
Relative symmetric net voltage tolerance 10 %
Relative symmetric net frequency tolerance 10 %

Packing details

Packing level 1 0786689830717

Other Technical data

Width 238 mm
Height 630 mm
Depth 328.5 mm
With control element Yes
Number of digital inputs 6
Number of digital outputs 1
Number of analogue inputs 2
Number of analogue outputs 2
Supporting protocol for LON No
Number of HW-interfaces industrial Ethernet 1
Number of HW-interfaces RS-232 0
Number of HW-interfaces RS-422 0
Number of HW-interfaces RS-485 1
Number of HW-interfaces serial TTY 0
Number of HW-interfaces USB 0
Number of HW-interfaces parallel 0
Number of HW-interfaces other 1
With optical interface No
Supporting protocol for TCP/IP No
Supporting protocol for ASI No
Supporting protocol for PROFIBUS No
Supporting protocol for CAN No
Supporting protocol for INTERBUS No
Supporting protocol for KNX No
Supporting protocol for Modbus No
Supporting protocol for Data-Highway No
Supporting protocol for DeviceNet No
Supporting protocol for SUCONET No
Supporting protocol for other bus systems Yes
Degree of protection (IP) IP21
With PC connection Yes
Supporting protocol for SERCOS No
Supporting protocol for INTERBUS-Safety No
4-quadrant operation possible No
Number of interfaces PROFINET 2
Type of converter U converter
Number of phases output 3
Integrated breaking resistance No
Application in industrial area permitted Yes
Application in domestic- and commercial area permitted Yes
Max. output frequency 400 Hz
Max. output at linear load at rated output voltage 37 kW
Max. output at quadratic load at rated output voltage 45 kW
Supporting protocol for AS-Interface Safety at Work No
Supporting protocol for DeviceNet Safety No
Supporting protocol for EtherNet/IP No
Supporting protocol for Foundation Fieldbus No
Supporting protocol for PROFINET CBA No
Supporting protocol for PROFINET IO No
Supporting protocol for PROFIsafe No
Supporting protocol for SafetyBUS p No
Max. output voltage 240 V
Nominal output current I2N 88 A
Supporting protocol for BACnet No
Degree of protection (NEMA) 1

Downloads

Instructions for use Others

Description

High Performance Frequenzumrichter, dreiphasig, Netzspannung – maximal: 240 V, Nennausgangsstrom I2N: 88 A, Leistung bei linearer Last bei Nennausgangsspannung - max: 37 kW, Leistung bei quadratischer Last bei Nennausgangsspannung - max: 45 kW, Bestückt mit: EMV-Filter & Zwischenkreisdrossel, Brems-Chopper, Display: Touchscreen, Schutzart: IP21, NEMA 1, Baugröße: FR4, Art des Umrichters: U-Umrichter, Netzfrequenz: 50/60 Hz
