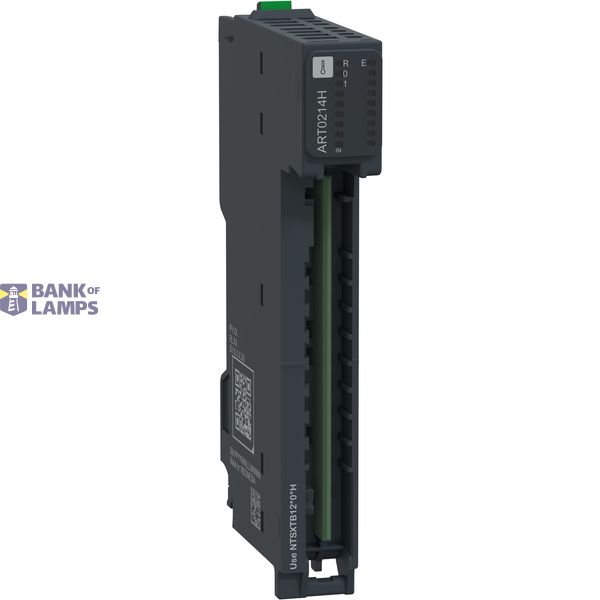

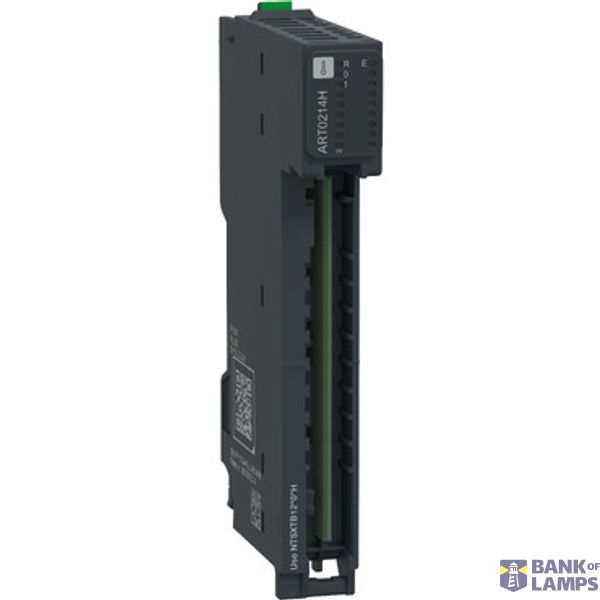

H AI2 TC RTD ISOL SL Mod
Order only
Price (excl. VAT):
348,39 €
EAN: 3606486876329
MPN: NTSART0214H
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | H AI2 TC RTD ISOL SL Mod |
| Brand | Schneider Electric |
| Categories |
Industrielle Feldbusmodule
|
| Country of origin* | ID |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 99 |
| ETIM | EC001596 |
| Suitable for safety functions | No |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 0 |
| Voltage type of supply voltage | DC |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces USB | 0 |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for Modbus | No |
| Type of electric connection | Screw-/spring clamp connection |
| Degree of protection (IP) | IP20 |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Supply voltage DC | 20.4-28.8 V |
| SIL according to IEC 61508 | None |
Packing details
| Packing level 1 | 3606486876329, 3606486876329 |
Other Technical data
| Width | 15 mm |
| Height | 100 mm |
| Depth | 69 mm |
| Supporting protocol for LON | No |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| Input, current | No |
| Input, voltage | Yes |
| Input, resistor | Yes |
| Input, resistance thermometer | Yes |
| Input, thermocouple | Yes |
| Input signal, configurable | Yes |
| Output, current | No |
| Output, voltage | No |
| Output signal configurable | No |
| Resolution of the analogue inputs | 16 Bit |
| Rail mounting possible | Yes |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Fieldbus connection over separate bus coupler possible | Yes |
| System accessory | No |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of HW-interfaces Wireless | 0 |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| IO link master | No |
| Performance level according to EN ISO 13849-1 | None |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Analogue inputs configurable | Yes |
| Analogue outputs configurable | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| Degree of protection (NEMA) | 2 |
Downloads
Others
Deep link REACH
Declaration RoHS
Mounting instruction
Declaration EPD (Environmental Product Declaration)
Description
Deze temperatuur-invoermodule maakt deel uit van de Modicon Edge I/O NTS-serie. Het beschikt over 2 geïsoleerde temperatuuringangen, zoals thermokoppel, RTD, spanning en weerstand, met een 2-3-4-draads aansluiting. De resolutie is 16 bits met overflow. Hij wordt gebruikt om de temperatuur in verschillende systemen of processen te meten en te bewaken. Hij functioneert binnen een temperatuurbereik van min 40 tot 70 graden Celsius. De IP-beschermingsgraad is IP20 en er is een beschermende coating aangebracht op de elektronische componenten en printplaten. Hij is 116 mm hoog, 15 mm breed, 69 mm diep en weegt 0,048 kg. Hij is compatibel met I/O-modules en montageaccessoires. Hij wordt per stuk verkocht. De module wordt geïnstalleerd op een basis die op een DIN-rail wordt gemonteerd. Modicon Edge I/O NTS is een toekomstbestendig I/O-systeem voor gegevensaggregatie. Modicon Edge I/O NTS is een robuust gedistribueerd IP20 I/O-systeem met een ruime keuze aan modules.
