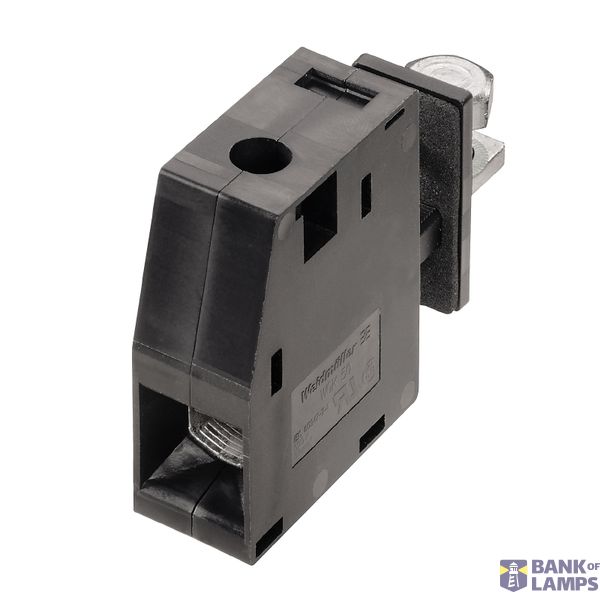

Feed-through terminal, 690 V, 150 A, Width: 22.8 mm, 50 mm², Cable lug

Order only

Price (excl. VAT):

10,29 €

This price is valid until next price list or while stock lasts

EAN: 4050118819083

MPN: 2585720000

Package: 1

Estimate delivery time to our warehouse: 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Feed-through terminal, 690 V, 150 A, Width: 22.8 mm, 50 mm², Cable lug
Brand	Weidmüller
Categories	Hutschienen-Reihenklemmen
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
ETIM	EC001283
Mounting method	Other
Rated voltage	690 V
Number of poles	1
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Screw connection
Connectable conductor cross section solid-core	16 mm²
Connectable conductor cross section fine-strand with cable end sleeve	10-50 mm²
Connectable conductor cross section fine-strand without cable end sleeve	16-50 mm²
Connectable conductor cross section multi-wired	16-50 mm²
Connection position	Sideways
Rated current In	150 A

Packing details

Packing level 1

4050118819083, 4050118819083

Other Technical data

Colour	Red
Operating temperature	-50-120 °C
Inflammability class of insulation material according to with UL94	V0
Width/grid dimension	22.8 mm
Closing plate required	No
Material insulation body	Thermoplastic
Explosion-tested version 'Ex e'	No

Description

The universal solution to feed power through housing walls. Excellent for applications such as EMC filters, discrete-built inverters for drive systems and encapsulated devices.
