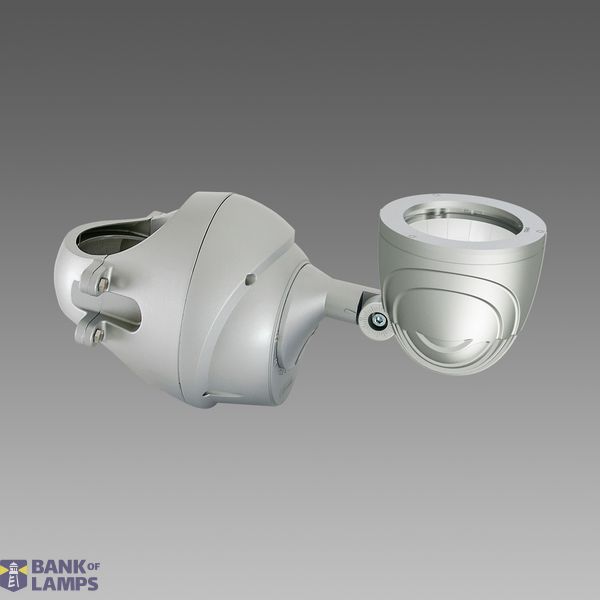

ELFO 1561 LED 26W CLD GREY
Order only
Price (excl. VAT):
344,10 €
EAN: 8012952105162
MPN: 42239800
Package: 1
Pallet: 48
Estimate delivery time to our warehouse: 3-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | ELFO 1561 LED 26W CLD GREY |
| Brand | Disano Illuminazione |
| Categories |
Straßen- & Parkbeleuchtung
|
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC000062 |
| Width | 220 mm |
| Length | 220 mm |
| Height/depth | 363 mm |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 4000 K |
| Max. system power | 26 W |
| Luminaire efficacy | 126 lm/W |
Packing details
| Packing level 1 | 8012952105162 |
| Packing level 2 | 8012952105162 |
Other Technical data
| Protection class | II |
| Colour housing | Grey |
| Voltage type | AC |
| Suitable for lamp power | - W |
| Housing material | Aluminium |
| With connection cable | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | No |
| Adjustable optics | No |
| Suitable for spigot size | - mm |
| Nominal current | - mA |
| With radio control | No |
| With light regulation program control | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Rated ambient temperature according to IEC62722-2-1 | - °C |
| LED nominal current at constant current | - mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Exchangeable control gear | No |
| Power factor | 0.9 |
Downloads
Description
Elfo LED for Pegaso - COB
