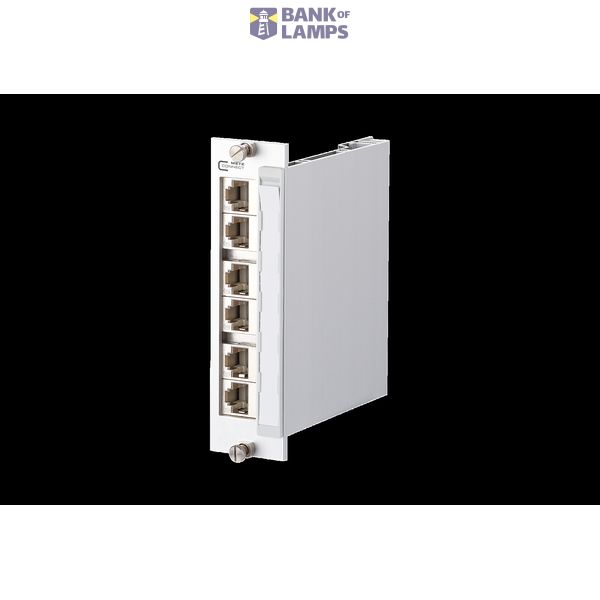

Netzwerk-Patchpanel E-DAT Modul 6x8(8) 3RU Cat.6A

Order only

Price (excl. VAT):

75,44 €

This price is valid until next price list or while stock lasts

EAN: 4250184106180

MPN: 130922-02-E

Package: 1

Estimate delivery time to our warehouse: 4-6 weeks

Technical Information

Item condition	New
Manufacture name	E-DAT modul 6x8(8) 3RU patch panel Cat.6A
Brand	METZ CONNECT
Categories	Patchpanels & Datendosen
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC001128
Connection type	Insulation displacement connector
Screened	Yes
Suitable for number of connectors	6
Category	6A (IEC)
Type of connector	RJ45 8(8)
Number of buses/couplings	6

Packing details

Packing level 1

4250184106180, 4250184106180

Other Technical data

Colour	Silver
Width	35.2 mm
Height	128.4 mm
Depth	130.3 mm
Number of height units	3
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No

Description

Module frame with 6 E-DAT modul individual modules, Cat.6, A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51compliance with class E, A according to ISO/IEC 11801, DIN EN 50173-1tested: Link to 500 MHz, suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, easy to install connection of 2 to 4-pair data lines AWG 26/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 - 22/7 to BTR 8-fold insulation displacement connectors (IDC), marking of conductor assignment to T568A and T568B, strain relief directly snapped on to stuffer cap of E-DAT modul, 3RU module frame front made of silver anodized aluminum for mounting in 3RU assembly frame, with label window for enclosed identification labels, optional strain relief using cable ties, grounding bolt M6 x 10 with nut and lock washer
