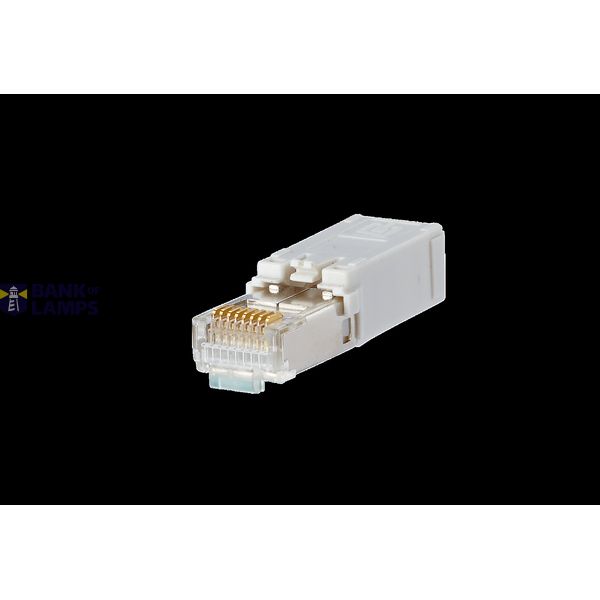

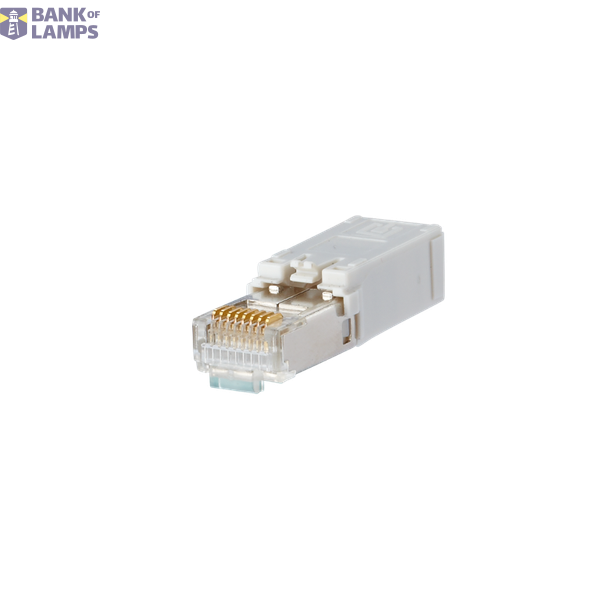

RJ45-Steckereinsatz E-DAT Industry RJ45 Cat.6 Klasse EA
Order only
Price (excl. VAT):
3,58 €
EAN: 4250184114109
MPN: 1401500810-I
Package: 1
Box: 10
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | E-DAT Industry RJ45 plug insert Cat.6 Class EA |
| Brand | METZ CONNECT |
| Categories |
Telekommunikationsverteiler & Komponenten
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC001121 |
| Model | Plug |
| Screened | Yes |
| Type of connector | RJ45 8(8) |
Packing details
| Packing level 1 | 4250184114109 |
| Packing level 2 | 4250184114109 |
Other Technical data
| Colour | White |
| Connection type | Crimp |
| Category | 6 |
| Suitable for round cable | Yes |
| Suitable for flat cable | Yes |
| Suitable for litz wire conductor | Yes |
| Suitable for solid core | Yes |
| AWG-range | 24-27 |
| Transparent | No |
| Special tool necessary | Yes |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
Description
Cat.6 class E, A plug to be mounted in IP67 plug housings of variants 1, 4, 5 and 14compliance with class E, A according to ISO/IEC 11801, DIN EN 50173-1suitable for 10 GBit Ethernet(IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT, connection of AWG 27/7 - 24/7 and AWG 24/1 possible, solid copper wire diameter from 0.36 to 0.51 mm, solid copper wire diameter from 0.46 to 0.61 mm, conductor diameter 0.85 mm to 1.05 mm, cable jacket up to 7.3 mm, without lock lever, connection of crimp contacts and shield in one step using crimping tool, color may differ from figure
