Netzwerk-Patchpanel E-DAT C6 24x8(8) 1RU modular LSA Cat.6

Order only

Price (excl. VAT):

166,78 €

This price is valid until next price list or while stock lasts

EAN: 4250184111740

MPN: 130856-E

Package: 1

Estimate delivery time to our warehouse: 4-6 weeks

Technical Information

Item condition	New
Manufacture name	E-DAT C6 24x8(8) 1RU modular LSA Cat.6 patch panel
Brand	METZ CONNECT
Categories	Patchpanels & Datendosen
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC001128
Connection type	LSA
Screened	Yes
Suitable for number of connectors	24
Category	6
Type of connector	RJ45 8(8)
Number of buses/couplings	24

Packing details

Packing level 1

4250184111740, 4250184111740

Other Technical data

Mounting method	482.6 mm (19 inch) mounting
Colour	Silver
Width	482.6 mm
Height	44.45 mm
Depth	103.3 mm
Number of height units	1
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No

Description

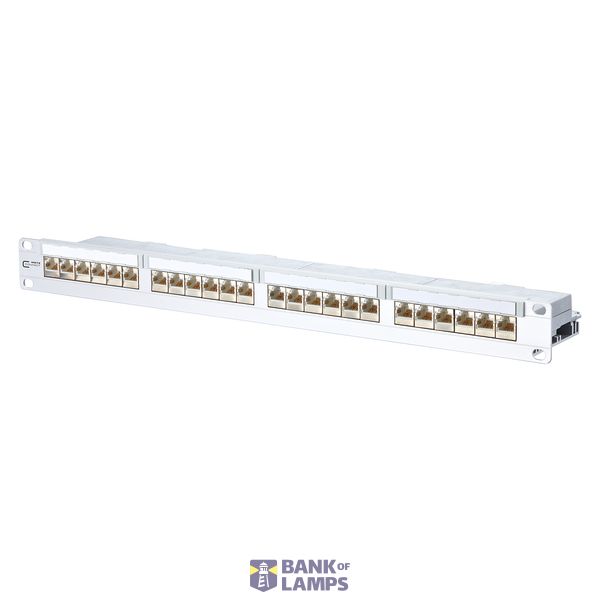

19 inch 1RU frame made of silver anodized aluminum with 24 individually shielded RJ45 jacks, certified to GHMT Cat.6 12C-de-embedded, compliance with class E, A Channel-Link acc. to ISO/IEC 11801-1, DIN EN 50173-1tested: Channel-Link up to 500 MHz, suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, 4 module housings, made of zinc die-casting, with six RJ45 jacks each, wire pairs can be led to the LSA terminal without untwisting the pair, connection of 2 to 4-pair data lines to LSA insulation displacement connectors (AWG 22-24) conductor colors marking to TIA/EIA 568A, label window for enclosed identification labels, optional strain relief using cable ties, modules connected by means of grounding rail, incl. 30 cm grounding cable
