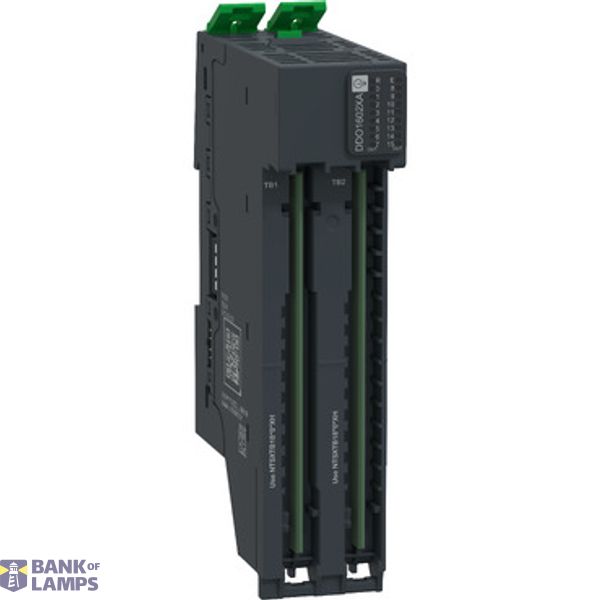

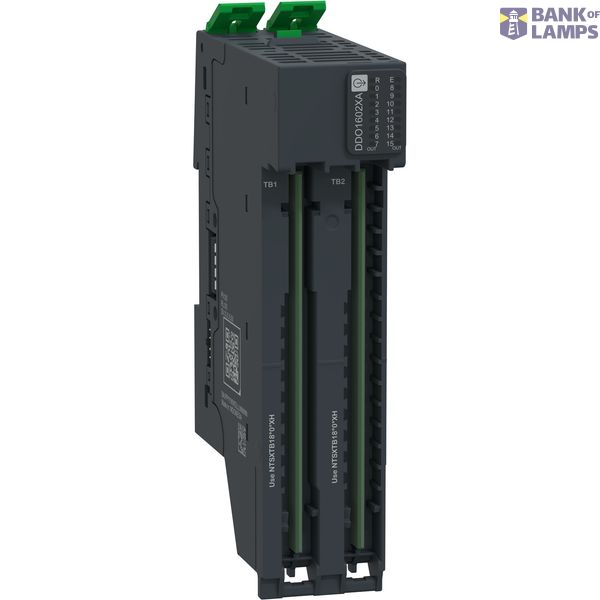

DO16 24VDC 0.5A SRC EPWS 8A DH Mod+B
Order only
Price (excl. VAT):
171,20 €
EAN: 3606486877739
MPN: NTSDDO1602XAK
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | DO16 24VDC 0.5A SRC EPWS 8A DH Mod+B |
| Brand | Schneider Electric |
| Categories |
Industrielle Feldbusmodule
|
| Country of origin* | ID |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 99 |
| ETIM | EC001599 |
| Number of digital inputs | 0 |
| Number of digital outputs | 16 |
| Time delay at signal exchange | 0.11 ms |
| Voltage type of supply voltage | DC |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces USB | 0 |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for Modbus | No |
| Output current | 8 A |
| Type of digital output | Transistor |
| Type of electric connection | Screw-/spring clamp connection |
| Degree of protection (IP) | IP20 |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Supply voltage DC | 20.4-28.8 V |
| Permitted voltage at output | 24 V |
| Type of output voltage | DC |
Packing details
| Packing level 1 | 3606486877739, 3606486877739 |
Other Technical data
| Width | 15 mm |
| Height | 100 mm |
| Depth | 80 mm |
| Suitable for safety functions | No |
| Supporting protocol for LON | No |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| Short-circuit protection, outputs available | No |
| Rail mounting possible | Yes |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Fieldbus connection over separate bus coupler possible | No |
| System accessory | No |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of HW-interfaces Wireless | 0 |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| IO link master | No |
| Performance level according to EN ISO 13849-1 | None |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Digital inputs configurable | No |
| Digital outputs configurable | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| SIL according to IEC 61508 | None |
Downloads
Deep link REACH
Declaration EPD (Environmental Product Declaration)
Mounting instruction
Declaration RoHS
Others
Description
Deze discrete uitgangskit maakt deel uit van de Modicon Edge I/O NTS-serie. Deze kit is een voorassemblage van een basis en een discrete uitgangsmodule. Hij beschikt over 16 discrete uitgangen die werken op 24 VDC met een stroomcapaciteit van 500 mA, met een bronlogica en een 1-2-draadsverbinding. Hij wordt gebruikt om besturingssignalen naar verschillende apparaten te sturen op basis van de logica van het systeem. Hij functioneert binnen een temperatuurbereik van min 40 tot 70 graden Celsius. Hij is 137,6 mm hoog, 30 mm breed, 88 mm diep en weegt 0,131 kg. Hij is compatibel met de Modicon M262- en Modicon M580-reeksen automatiseringscontrollers en montageaccessoires. Het pakket bevat de module die al op de basis is gemonteerd. De kit wordt op een DIN-rail geïnstalleerd met een mechanische vergrendelingsclip. Modicon Edge I/O NTS is een toekomstbestendig I/O-systeem voor gegevensaggregatie. Modicon Edge I/O NTS is een robuust gedistribueerd IP20 I/O-systeem met een ruime keuze aan
