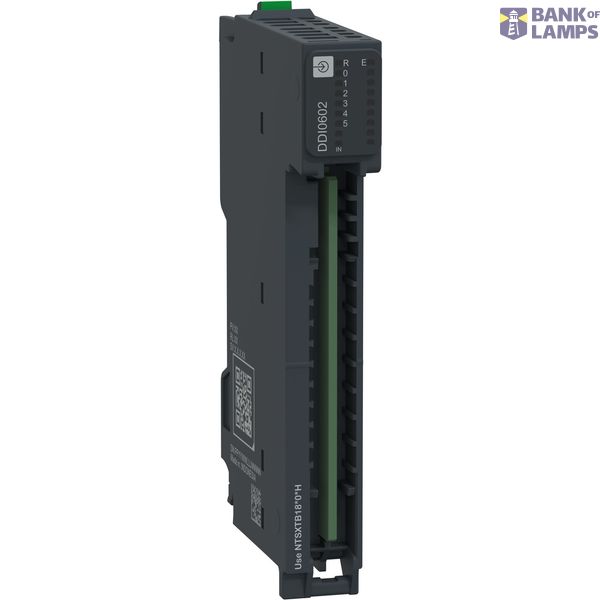

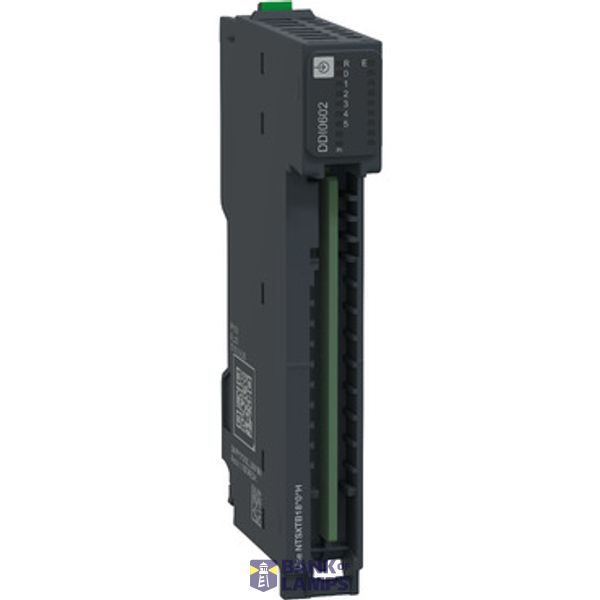

DI6 24VDC SNK SL Mod
Order only
Price (excl. VAT):
97,21 €
EAN: 3606486876473
MPN: NTSDDI0602
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | DI6 24VDC SNK SL Mod |
| Brand | Schneider Electric |
| Categories |
Industrielle Feldbusmodule
|
| Country of origin* | ID |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 99 |
| ETIM | EC001599 |
| Number of digital inputs | 6 |
| Number of digital outputs | 0 |
| Time delay at signal exchange | 0.125 ms |
| Voltage type of supply voltage | DC |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces USB | 0 |
| Type of voltage (input voltage) | DC |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for Modbus | No |
| Type of electric connection | Screw-/spring clamp connection |
| Degree of protection (IP) | IP20 |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Supply voltage DC | 20.4-28.8 V |
| Permitted voltage at input | 20.4-28.8 V |
Packing details
| Packing level 1 | 3606486876473, 3606486876473 |
Other Technical data
| Width | 15 mm |
| Height | 100 mm |
| Depth | 69 mm |
| Input current at signal 1 | 2.5 mA |
| Suitable for safety functions | No |
| Supporting protocol for LON | No |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| Short-circuit protection, outputs available | No |
| Rail mounting possible | Yes |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Fieldbus connection over separate bus coupler possible | Yes |
| System accessory | No |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of HW-interfaces Wireless | 0 |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| IO link master | No |
| Performance level according to EN ISO 13849-1 | None |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Digital inputs configurable | No |
| Digital outputs configurable | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| SIL according to IEC 61508 | None |
Downloads
Deep link REACH
Declaration RoHS
Mounting instruction
Declaration EPD (Environmental Product Declaration)
Others
Videos
Description
Deze discrete ingangsmodule maakt deel uit van het Modicon Edge I/O NTS gamma. Het beschikt over 6 discrete ingangen die werken bij 24V DC, met een sink logica, met een 1-2-3-draads aansluiting. Het wordt gebruikt om besturingssignalen naar verschillende apparaten te verzenden op basis van de logica van het systeem. Het werkt binnen een temperatuurbereik van -20 tot 60 graden Celsius. De IP-beschermingsgraad is IP20. Het meet 116mm hoog, 15mm breed, 69mm diep, en weegt 0.046kg. Het is compatibel met I/O-modules en montagetoebehoren. Het wordt individueel per verpakking verkocht. De module is geïnstalleerd op een basis die op een DIN-rail wordt gemonteerd. Modicon Edge I/O NTS is een toekomstbestendig I/O-systeem voor gegevensaggregatie. Modicon Edge I/O NTS is een robuust gedistribueerd IP20 I/O-systeem met een groot aantal modules.
