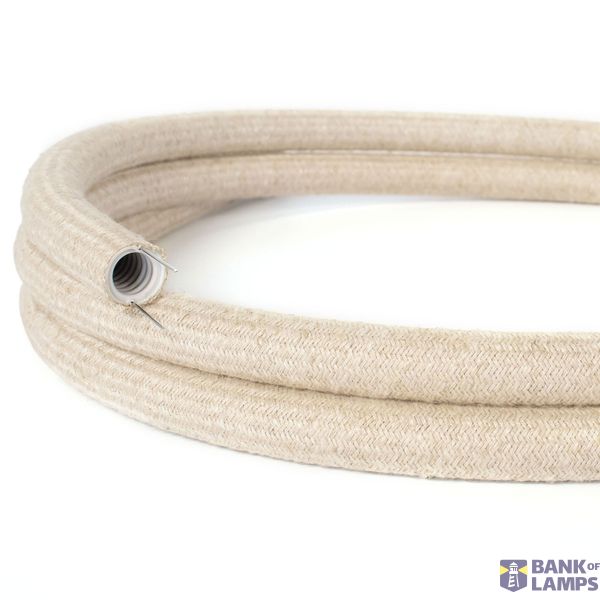

Flexibler Schutzschlauch Creative-Tube, Ummantelung aus neutralem Naturleinen RN01, Durchmesser 20 mm

Order only Minimal order quantity: 30

Price (excl. VAT):

8,40 € per m

This price is valid while stock lasts

Subtotal: 252,00 € MOQ: 30

EAN: 8057730658096

MPN: NG20RN01

Package: 1

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Creative-Tube flexible conduit, Neutral Natural Linen RN01 fabric covering, diameter 20 mm
Brand	Creative Cables
Categories	Weitere Produkte

Packing details

Packing level 1

8057730658096

Description

Classification No: 3321 Crushing resistance: >750N on 5 cm at 20°C Schock resistance: (-15°C) after applying 2 kg mass hammer Operating temperature: -5°C to +60°C Resistance to flame propagation: self-estinguishing VO Dielectric strength: < 2000V at 50Hz Insulation resistance: >100 mega ohm Diameter: 20 mm Color: Neutral Natural Linen RN01 According to the CEI 64-8 standard, to guarantee the cable removal, the maximum useful cross-section of cables inside the Creative-Tube can be 10 mm for a Tube up to 10 metres long. Up to 20 metres, the maximum thickness will be 9 mm. Due to the shape of Creative-Tube, once positioned it is necessary to cut the pieces of metal filament that protrude from the limit of the pipe, before you can install the accessories or connect it to the junction box.
