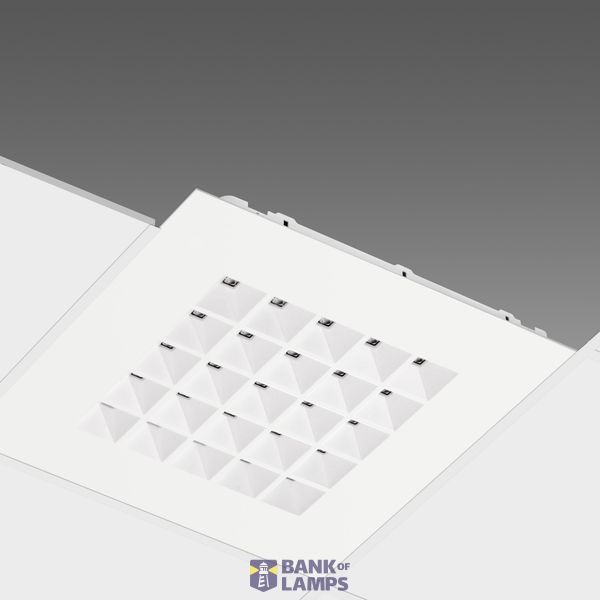

COMFORT SQUARE 810 LED 21W CLD WHI
Order only
Price (excl. VAT):
Price by request
EAN: 8012952165401
MPN: 15034000
Package: 1
Pallet: 44
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | COMFORT SQUARE 810 LED 21W CLD WHI |
| Brand | Disano Illuminazione |
| Categories |
Wand- & Deckenleuchten
Deckenleuchten Einbauleuchten |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC002892 |
| Width | 595 mm |
| Colour housing | White |
| Length | 595 mm |
| Height/depth | 42 mm |
| Impact strength | IK07 |
| Nominal voltage | 220-240 V |
| Colour temperature | 4000 K |
| Max. system power | 21 W |
| Luminaire efficacy | 125 lm/W |
Packing details
| Packing level 1 | 8012952165401 |
| Packing level 2 | 8012952165401 |
Other Technical data
| Protection class | I |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | - W |
| Built-in width | 575 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Other |
| Built-in length | 575 mm |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for wall mounting | No |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Nominal current | - mA |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Photobiological safety according to EN 62471 | RG0 |
| Rated ambient temperature according to IEC62722-2-1 | - °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming depending on control gear | No |
| Dimming DSI | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | -42 mm |
| Power factor | 0.9 |
Downloads
Description
Comfortsquare - 76° - DIP SWITCH
