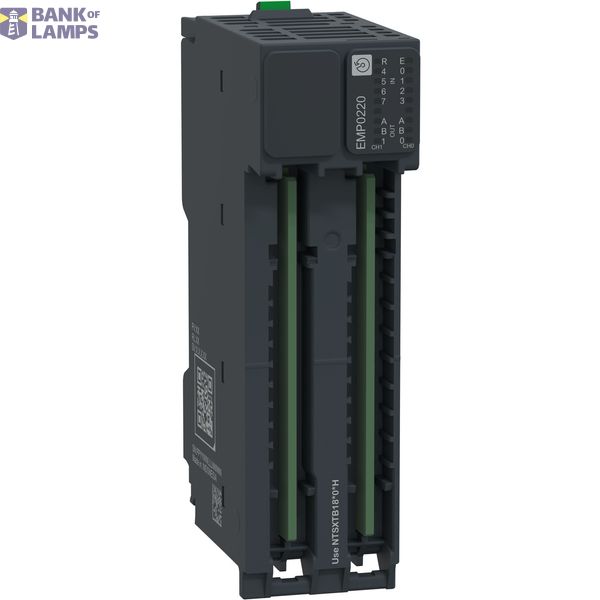

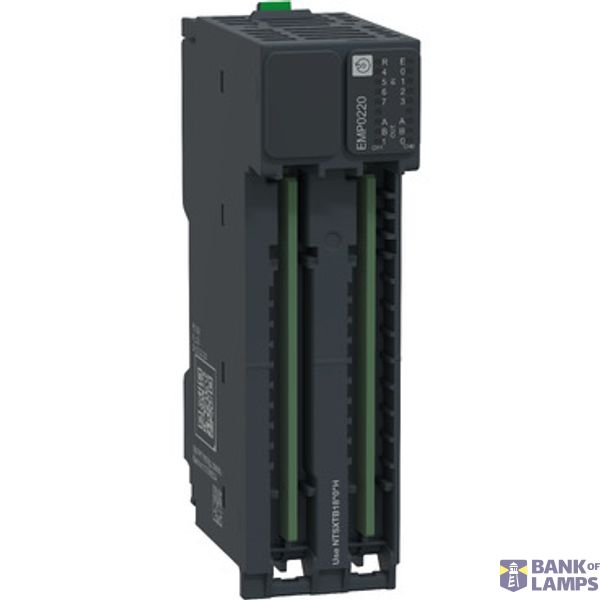

CH2 PTO PWM DL Mod
Order only
Price (excl. VAT):
409,47 €
EAN: 3606486876824
MPN: NTSEMP0220
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | CH2 PTO PWM DL Mod |
| Brand | Schneider Electric |
| Categories |
Industrielle Feldbusmodule
|
| Country of origin* | ID |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 99 |
| ETIM | EC001601 |
| Voltage type of supply voltage | DC |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of functions | 1 |
| Number of interfaces PROFINET | 0 |
| Supply voltage DC | 24 V |
Packing details
| Packing level 1 | 3606486876824, 3606486876824 |
Other Technical data
| Width | 15 mm |
| Height | 100 mm |
| Depth | 69 mm |
| Frequency measurement | No |
| Suitable for safety functions | No |
| Supporting protocol for LON | No |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| Suitable for counting | Yes |
| Suitable for weighing | No |
| Suitable for welding control | No |
| Suitable for pressure control | No |
| Suitable for NC | No |
| Suitable for SSI | No |
| Suitable for electronic positioning | No |
| Suitable for CNC | No |
| Suitable for incremental data detection | No |
| Suitable for detection absolute value | No |
| Suitable for flux controller | No |
| Suitable for flux measurement | No |
| Suitable for path controller | No |
| Suitable for cam controller | No |
| Suitable for flying saw | No |
| Suitable for multi-axis control | No |
| Suitable for single-axis controller | No |
| Suitable for multi-axis positioning | No |
| Suitable for single-axis positioning | No |
| Rail mounting possible | Yes |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Fieldbus connection over separate bus coupler possible | No |
| System accessory | No |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of HW-interfaces Wireless | 0 |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| Function block automatic reset | No |
| Function block contactless working protection installation | No |
| Function block operating mode selection | No |
| Function block emergency stop | No |
| Function block restart blockage | No |
| Function block access control | No |
| Function block affirm pushbutton | No |
| Function block 2-hand switching | No |
| IO link master | No |
| Performance level according to EN ISO 13849-1 | None |
| Contactor control function block | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Suitable for temperature control | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| SIL according to IEC 61508 | None |
| Degree of protection (NEMA) | Other |
Downloads
Others
Mounting instruction
Deep link REACH
Declaration EPD (Environmental Product Declaration)
Declaration RoHS
Description
Deze Motion Expert module maakt deel uit van de Modicon Edge I/O NTS-serie. Het beschikt over 2 encoder-ingangen die compatibel zijn met RS-422-pulstreinuitgang (400 kHz). Hij beschikt over 8 afzonderlijke hulpingangen en 2 push-pull hulpuitgangen met een nominale spanning van 24 VDC en een stroomsterkte van 50 mA per kanaal. Hij maakt positiecontrole, gebeurtenisvolgorde en feedbackmechanisme mogelijk. Hij functioneert binnen een temperatuurbereik van min 20 tot 60 graden Celsius. De IP-beschermingsgraad is IP20. Hij is 116 mm hoog, 30 mm breed, 11 mm diep en weegt 0,079 kg. Hij is compatibel met I/O-modules en montageaccessoires. Hij wordt per stuk verkocht. De module wordt geïnstalleerd op een basis die op een DIN-rail wordt gemonteerd. Modicon Edge I/O NTS is een toekomstbestendig I/O-systeem voor gegevensaggregatie. Modicon Edge I/O NTS is een robuust gedistribueerd IP20 I/O-systeem met een ruime keuze aan modules.
