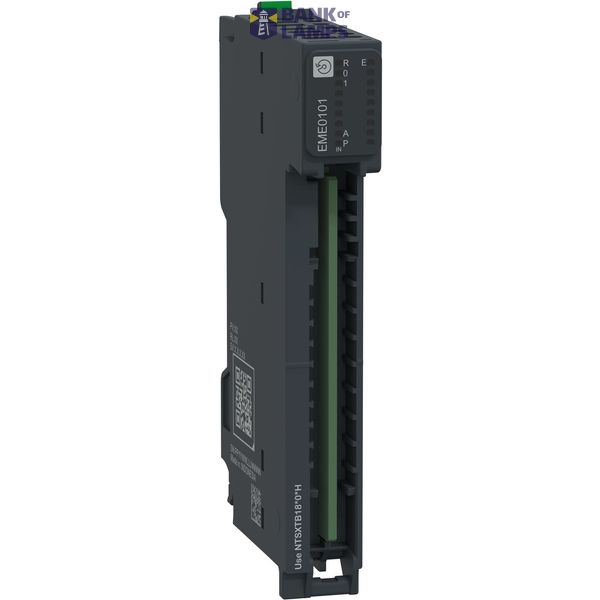

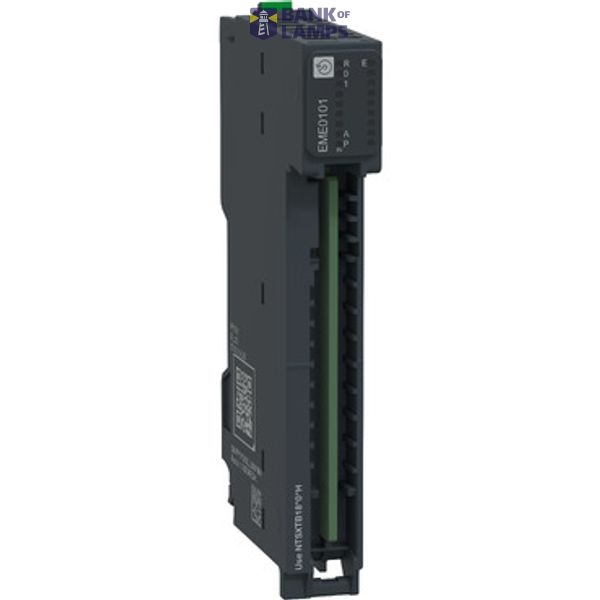

CH1 RS422 Inc SSI BissC Encoder SL Mod
Order only
Price (excl. VAT):
302,48 €
EAN: 3606486876794
MPN: NTSEME0101
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | CH1 RS422 Inc SSI BissC Encoder SL Mod |
| Brand | Schneider Electric |
| Categories |
Industrielle Feldbusmodule
|
| Country of origin* | ID |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 99 |
| ETIM | EC001601 |
| Voltage type of supply voltage | DC |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of functions | 1 |
| Number of interfaces PROFINET | 0 |
| Supply voltage DC | 24 V |
Packing details
| Packing level 1 | 3606486876794, 3606486876794 |
Other Technical data
| Width | 15 mm |
| Height | 100 mm |
| Depth | 69 mm |
| Frequency measurement | No |
| Suitable for safety functions | No |
| Supporting protocol for LON | No |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| Suitable for counting | Yes |
| Suitable for weighing | No |
| Suitable for welding control | No |
| Suitable for pressure control | No |
| Suitable for NC | Yes |
| Suitable for SSI | Yes |
| Suitable for electronic positioning | Yes |
| Suitable for CNC | No |
| Suitable for incremental data detection | Yes |
| Suitable for detection absolute value | No |
| Suitable for flux controller | No |
| Suitable for flux measurement | No |
| Suitable for path controller | No |
| Suitable for cam controller | No |
| Suitable for flying saw | No |
| Suitable for multi-axis control | No |
| Suitable for single-axis controller | No |
| Suitable for multi-axis positioning | No |
| Suitable for single-axis positioning | No |
| Rail mounting possible | Yes |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Fieldbus connection over separate bus coupler possible | No |
| System accessory | No |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of HW-interfaces Wireless | 0 |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| Function block automatic reset | No |
| Function block contactless working protection installation | No |
| Function block operating mode selection | No |
| Function block emergency stop | No |
| Function block restart blockage | No |
| Function block access control | No |
| Function block affirm pushbutton | No |
| Function block 2-hand switching | No |
| IO link master | No |
| Performance level according to EN ISO 13849-1 | None |
| Contactor control function block | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Suitable for temperature control | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| SIL according to IEC 61508 | None |
| Degree of protection (NEMA) | Other |
Downloads
Declaration EPD (Environmental Product Declaration)
Others
Mounting instruction
Declaration RoHS
Deep link REACH
Description
Deze Motion Expert module maakt deel uit van de Modicon Edge I/O NTS-serie. Het beschikt over 1 encoderingang, beschikbaar in RS422 incrementeel bij 1 MHz, SSI bij 500 kHz of BissC-formaten. Hij beschikt over 2 afzonderlijke hulpingangen met een vermogen van 24 VDC. Hij maakt positiecontrole, gebeurtenisvolgorde en feedbackmechanisme mogelijk. Hij functioneert binnen een temperatuurbereik van min 20 tot 60 graden Celsius. De IP-beschermingsgraad is IP20. Hij is 116 mm hoog, 15 mm breed, 88 mm diep en weegt 0,73 kg. Hij is compatibel met I/O-modules en montageaccessoires. Hij wordt per stuk verkocht. De module wordt geïnstalleerd op een basis die op een DIN-rail wordt gemonteerd. Modicon Edge I/O NTS is een toekomstbestendig I/O-systeem voor gegevensaggregatie. Modicon Edge I/O NTS is een robuust gedistribueerd IP20 I/O-systeem met een ruime keuze aan modules.
