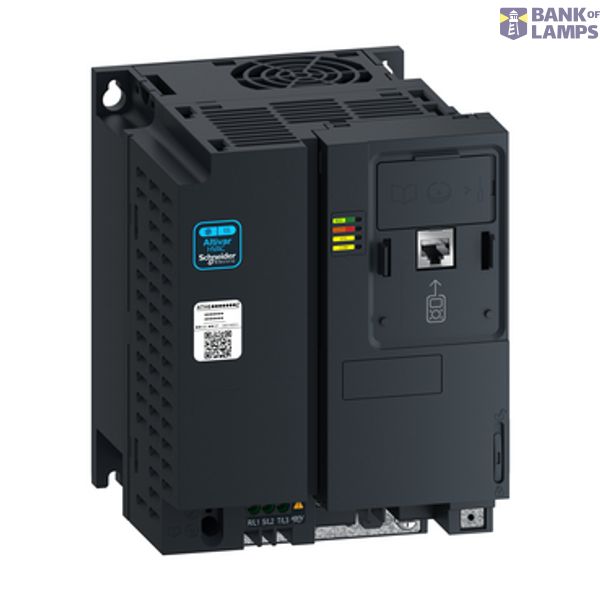

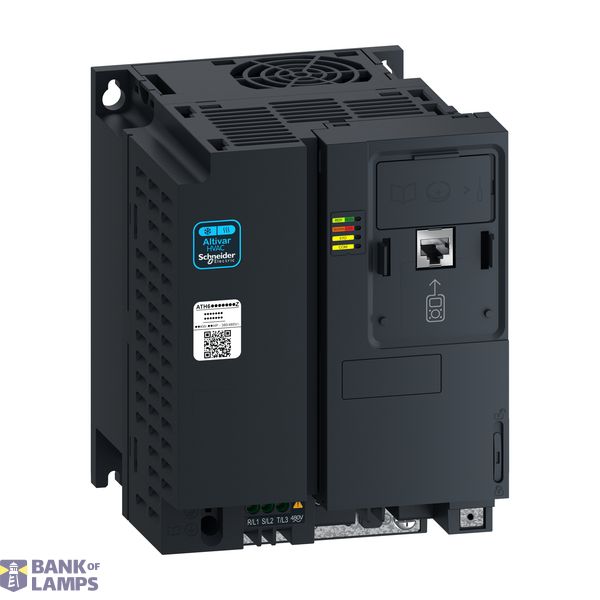

ATH630 4kW 5HP 380/480V WO KEYPAD
Order only
Price (excl. VAT):
773,34 €
EAN: 3606487957836
MPN: ATH630U40N4Z
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | ATH630 4kW 5HP 380/480V WO KEYPAD |
| Brand | Schneider Electric |
| Categories |
Frequenzumrichter bis 1 kV
|
| Country of origin* | ID |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC001857 |
| Mains voltage | 380-480 V |
| Mains frequency | 50/60 Hz |
| Number of phases input | 3 |
| Relative symmetric net voltage tolerance | 10 % |
| Relative symmetric net frequency tolerance | 5 % |
Packing details
| Packing level 1 | 3606487957836, 3606487957836 |
Other Technical data
| Width | 145 mm |
| Height | 197 mm |
| Depth | 166 mm |
| With control element | No |
| Number of digital inputs | 8 |
| Number of digital outputs | 0 |
| Number of analogue inputs | 3 |
| Number of analogue outputs | 2 |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 2 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 1 |
| With optical interface | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Degree of protection (IP) | IP20 |
| With PC connection | Yes |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| 4-quadrant operation possible | No |
| Number of interfaces PROFINET | 0 |
| Type of converter | U converter |
| Number of phases output | 3 |
| Integrated breaking resistance | No |
| Application in industrial area permitted | Yes |
| Application in domestic- and commercial area permitted | No |
| Max. output frequency | 400 Hz |
| Max. output at linear load at rated output voltage | 4 kW |
| Max. output at quadratic load at rated output voltage | 4 kW |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Max. output voltage | 480 V |
| Nominal output current I2N | 9.1 A |
| Supporting protocol for BACnet | Yes |
