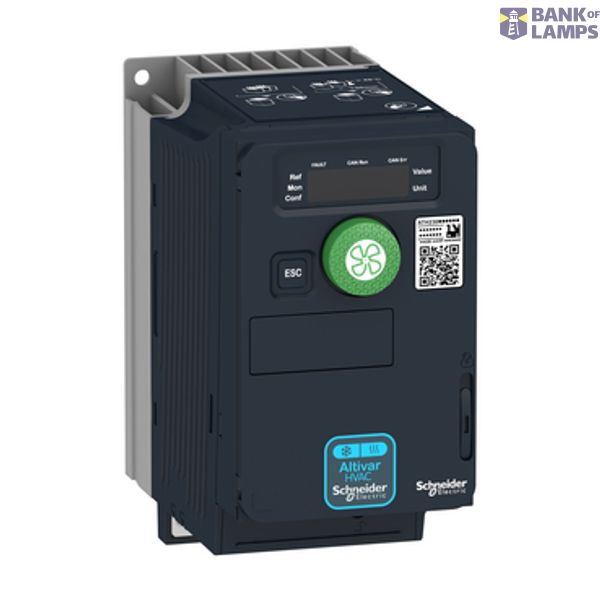

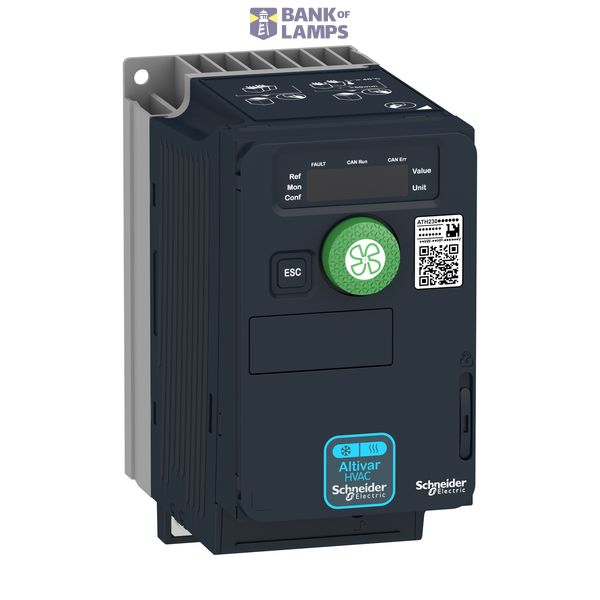

ATH230 0.55kW/0.75HP 200/240V 3PH IP20

Order only

Price (excl. VAT):

305,81 €

This price is valid until 01.01.99

EAN: 3606487882312

MPN: ATH230U06M3

Package: 1

Estimate delivery time to our warehouse: 4-6 weeks

Technical Information

Item condition	New
Manufacture name	ATH230 0.55kW/0.75HP 200/240V 3PH IP20
Brand	Schneider Electric
Categories	Frequenzumrichter bis 1 kV
Country of origin*	ID
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
ETIM	EC001857
Mains voltage	200-240 V
Mains frequency	50/60 Hz
Number of phases input	3
Relative symmetric net voltage tolerance	10 %
Relative symmetric net frequency tolerance	5 %

Packing details

Packing level 1

3606487882312, 3606487882312

Other Technical data

Width	72 mm
Height	143 mm
Depth	138 mm
With control element	Yes
Number of digital inputs	6
Number of digital outputs	1
Number of analogue inputs	3
Number of analogue outputs	1
Supporting protocol for LON	No
Number of HW-interfaces industrial Ethernet	1
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	1
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
Number of HW-interfaces parallel	0
Number of HW-interfaces other	1
With optical interface	No
Supporting protocol for TCP/IP	No
Supporting protocol for ASI	No
Supporting protocol for PROFIBUS	No
Supporting protocol for CAN	No
Supporting protocol for INTERBUS	No
Supporting protocol for KNX	No
Supporting protocol for Modbus	Yes
Supporting protocol for Data-Highway	No
Supporting protocol for DeviceNet	No
Supporting protocol for SUCONET	No
Supporting protocol for other bus systems	Yes
Degree of protection (IP)	IP20
With PC connection	Yes
Supporting protocol for SERCOS	No
Supporting protocol for INTERBUS-Safety	No
4-quadrant operation possible	Yes
Number of interfaces PROFINET	0
Type of converter	U converter
Number of phases output	3
Integrated breaking resistance	No
Application in industrial area permitted	Yes
Application in domestic- and commercial area permitted	Yes
Max. output frequency	599 Hz
Max. output at linear load at rated output voltage	0.55 kW
Max. output at quadratic load at rated output voltage	0.55 kW
Supporting protocol for AS-Interface Safety at Work	No
Supporting protocol for DeviceNet Safety	No
Supporting protocol for EtherNet/IP	No
Supporting protocol for Foundation Fieldbus	No
Supporting protocol for PROFINET CBA	No
Supporting protocol for PROFINET IO	No
Supporting protocol for PROFIsafe	No
Supporting protocol for SafetyBUS p	No
Max. output voltage	240 V
Nominal output current I2N	3.7 A
Supporting protocol for BACnet	Yes

Downloads

Others Declaration EPD (Environmental Product Declaration) Deep link REACH Declaration RoHS Mounting instruction

Description

De Altivar HVAC ATH200-serie is een aanbod van frequentieregelaars, speciaal ontworpen voor HVAC-fabrikanten (OEM's) om asynchrone en synchrone motoren aan te drijven. Met een beschermingsgraad van IP20 is de ATH230 geschikt voor montage in schakelpanelen. Hij voedt motoren van 0,55 kW / 0,75 pk bij een nominale spanning van 200 tot 240 V. Het robuuste ontwerp met IEC 60721-3-3 klasse 3C3 gecoate printplaten zorgt ervoor dat de machine ook onder zware omgevingsomstandigheden, zoals omgevingstemperaturen tot 60 °C, beschikbaar blijft zonder dat extra koeling nodig is. Het compacte ontwerp en de ingebouwde functies zoals Safe Torque Off, EMC-filter en A2L-certificering optimaliseren het bedieningspaneel en verhogen de concurrentiepositie. HVAC- en programmeerbare logicafuncties zijn geïntegreerd om het automatiseringssysteem te vereenvoudigen. De ATH200 beschikt over native Modbus, een BACnet MS/TP seriële link en BACnet/IP-connectiviteit met een optionele communicatiemodule. De afmeting
