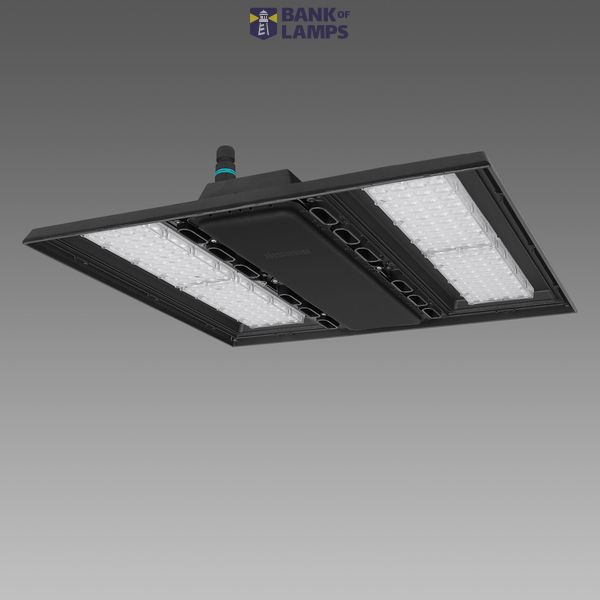

ASTRO Q 2912 LED 290W CLD RAL7021
Order only
Price (excl. VAT):
744,00 €
EAN: 8012952187007
MPN: 39002200
Package: 1
Pallet: 24
Estimate delivery time to our warehouse: 3-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | ASTRO Q 2912 LED 290W CLD RAL7021 |
| Brand | Disano Illuminazione |
| Categories |
LED-Hallenstrahler
|
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC001716 |
| Width | 570 mm |
| Length | 606 mm |
| Height/depth | 60 mm |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 4000 K |
| Max. system power | 290 W |
| Luminaire efficacy | 173 lm/W |
Packing details
| Packing level 1 | 8012952187007 |
| Packing level 2 | 8012952187007 |
Other Technical data
| Protection class | I |
| Colour housing | Anthracite |
| Voltage type | AC |
| Suitable for lamp power | - W |
| Type of control gear | LED operating device current-controlled |
| Ball-proof | Yes |
| Housing material | Aluminium |
| Suitable for emergency lighting | No |
| Light sharing | Symmetric |
| Emergency power supply integrated | No |
| With protective cover | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Nominal current | - mA |
| Constant light output (CLO) | No |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Rated ambient temperature according to IEC62722-2-1 | -40-50 °C |
| LED nominal current at constant current | - mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Focal lens |
| Dimming DSI | No |
| Suitable for auxiliary lamp | No |
| Exchangeable control gear | No |
| Power factor | 0.95 |
Downloads
Description
Astro Q12 - elliptical
