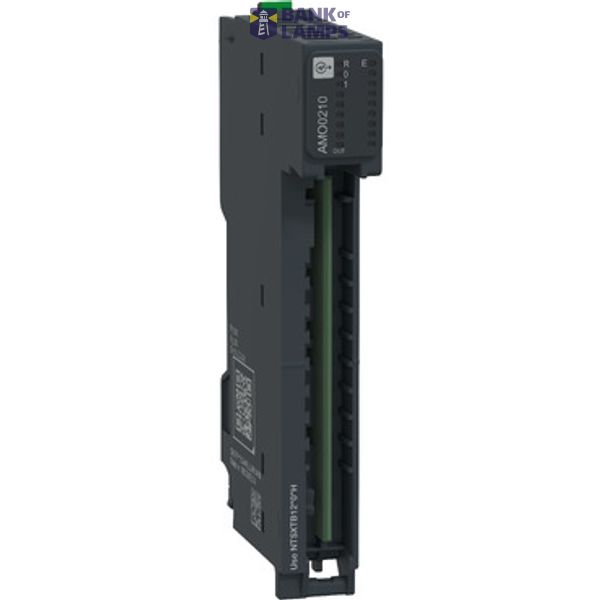

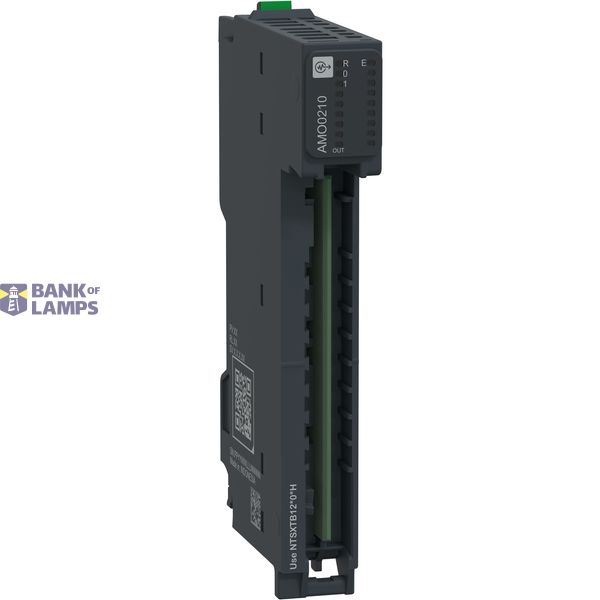

AO2 UI ISOL SL Mod
Order only
Price (excl. VAT):
246,89 €
EAN: 3606486876275
MPN: NTSAMO0210
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | AO2 UI ISOL SL Mod |
| Brand | Schneider Electric |
| Categories |
Industrielle Feldbusmodule
|
| Country of origin* | ID |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 99 |
| ETIM | EC001596 |
| Suitable for safety functions | No |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 2 |
| Voltage type of supply voltage | DC |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces USB | 0 |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for Modbus | No |
| Type of electric connection | Screw-/spring clamp connection |
| Degree of protection (IP) | IP20 |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Supply voltage DC | 20.4-28.8 V |
| SIL according to IEC 61508 | None |
Packing details
| Packing level 1 | 3606486876275, 3606486876275 |
Other Technical data
| Width | 15 mm |
| Height | 100 mm |
| Depth | 69 mm |
| Supporting protocol for LON | No |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| Input, current | No |
| Input, voltage | No |
| Input, resistor | No |
| Input, resistance thermometer | No |
| Input, thermocouple | No |
| Input signal, configurable | No |
| Output, current | Yes |
| Output, voltage | Yes |
| Output signal configurable | Yes |
| Resolution of the analogue outputs | 15 Bit |
| Rail mounting possible | Yes |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Fieldbus connection over separate bus coupler possible | Yes |
| System accessory | No |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of HW-interfaces Wireless | 0 |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| IO link master | No |
| Performance level according to EN ISO 13849-1 | None |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Analogue inputs configurable | No |
| Analogue outputs configurable | Yes |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| Degree of protection (NEMA) | 2 |
Downloads
Declaration RoHS
Declaration EPD (Environmental Product Declaration)
Others
Mounting instruction
Deep link REACH
Description
Deze analoge uitgangsmodule maakt deel uit van de Modicon Edge I/O NTS-serie. Het beschikt over 2 geïsoleerde stroom-spanningsuitgangen. De spanningsuitgangen zijn ±10V, 0 tot 10V, ±5V, 0 tot 5V, 1 tot 5V, de stroomuitgangen zijn ±20mA, 0 tot 20mA, 4 tot 20 Deze alles-in-één oplossing is een compleet platform voor het beheren van meerdere analoge signalen, waardoor efficiënte Het functioneert binnen een temperatuurbereik van -20 tot 60 graden Celsius. De IP-beschermingsgraad is IP20. Het meet 116 mm hoog, 15 mm breed, 69 mm diep en weegt 0,048 kg. Het is compatibel met I/O-modules en montageaccessoires. Het wordt per stuk in een verpakking verkocht. De module is gemonteerd op een basis die op een DIN-rail bevestigd kan worden. Modicon Edge I/O NTS is een toekomstbestendig I/O-systeem voor data-aggregatie. Modicon Edge I/O NTS is een robuust, gedistribueerd IP20 I/O-systeem met een ruime keuze aan modules.
