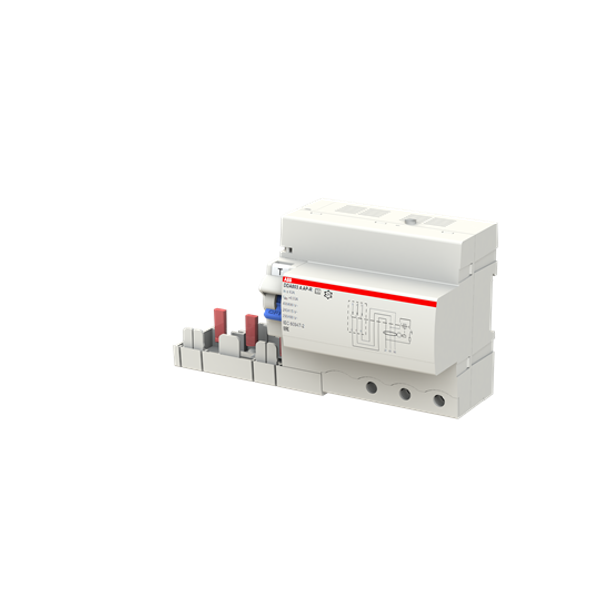

DDA804AC-63/0.03 Residual Current Device Block

Name: DDA804AC-63/0.03 Residual Current Device Block
Brand: ABB
Price: 337.290 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

337,29 € per pcs

This price is valid until 31.12.30

EAN: 8012542924401

MPN: 2CSB804001R1630

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	DDA804AC-63/0.03 Residual Current Device Block
Brand	ABB
Categories	RCCB - (Residual Current Breakers)
Harmonized System Code	8536 3030 00
Nominal current	63 A
Number of poles	4
Leakage current type	AC
Rated fault current	3 A
Nominal voltage	230-400 V
Degree of protection (IP)	IP2X
Ambient temperature during operating	-25-60 °C

Packing level 1

8012542924401

Rated insulation voltage Ui	690 V
Delay adjustable	FALSE
Max. delay time	0 ms
Surge current capacity	0,25 kA
Pollution degree	0
Frequency	50/60 Hz
Connectable conductor cross section solid-core	6-70 mm²
Connectable conductor cross section multi-wired	6-50 mm²
With interlocking device	FALSE
Rated fault current adjustable	FALSE
Anti-nuisance tripping version	FALSE
Rated impulse withstand voltage Uimp	6 kV

Declaration RoHS Declaration DOC CE (Declaration of conformity CE)
