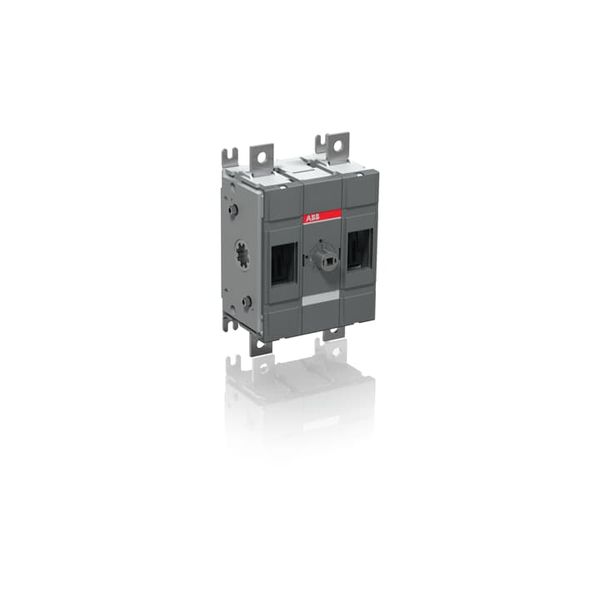

OTDC100E22 DC Switch-disconnector
In stock: No
Vendor stock: Yes
Minimal order quantity: 1
Price (excl. VAT):
427,91 €
per pcs
EAN: 6417019558202
MPN: 1SCA125824R1001
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | OTDC100E22 DC Switch-disconnector |
| Brand | ABB |
| Categories |
Switch Disconnectors
|
| Country of origin | FI |
| Harmonized System Code | 8536 3030 00 |
| Rated permanent current Iu | 100 A |
| Number of poles | 4 |
| Rated operating voltage | 1000 V |
| Degree of protection (IP), front side | IP20 |
| Version as main switch | Yes |
| Version as safety switch | No |
| Version as maintenance-/service switch | Yes |
| Rated short-time withstand current lcw | 5 kA |
Packing details
| Packing level 1 | 6417019558202 |
Other Technical data
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of switches | 1 |
| Interlockable | No |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Bolt connection |
| Version as emergency stop installation | No |
| Suitable for floor mounting | No |
| Suitable for front mounting 4-hole | Yes |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | No |
| Max. rated operation voltage Ue AC | 1000 V |
| Motor drive optional | No |
| Voltage release optional | No |
| Device construction | Built-in device fixed built-in technique |
| Version as reversing switch | No |
| Degree of protection (NEMA) | 1 |
Downloads
Others
Declaration DOC CE (Declaration of conformity CE)
Declaration RoHS
Deep link REACH
Product data sheet
Description
OTDC100E11 DC Switch-disconnector
