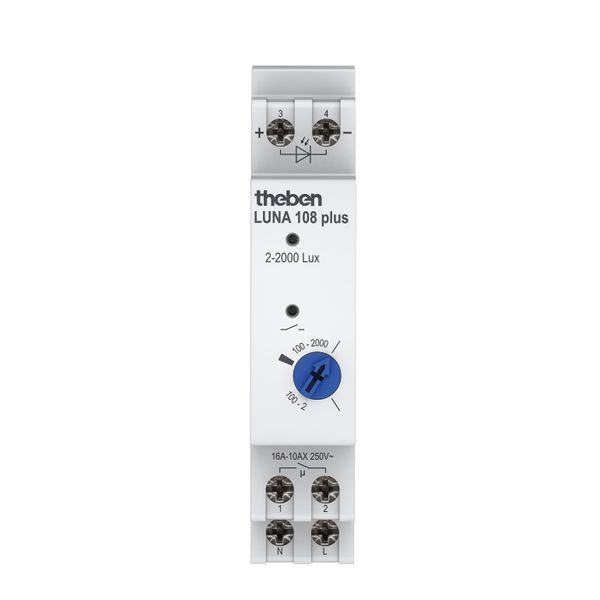

Twilight Switch LUNA 108 plus AL, 230 V AC, 50–60 Hz, 1 Channel, DIN Rail, IP20
Order only
EAN: 4003468100974
MPN: 1080910
Package: 1
Price (excl. VAT)
73,94 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | LUNA 108 plus AL |
| Brand | Theben |
| Categories |
Assembly Accessories & Parts
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| ETIM | EC001645 |
| Mounting method | DIN rail |
| Rated voltage | 230 V |
| Width in number of modular spacings | 1 |
| Degree of protection (IP) | IP20 |
| Adjustment range brightness value | 2-2000 lx |
Packing details
| Packing level 1 | 4003468100974, 4003468100974 |
Other Technical data
| Built-in depth | 65.5 mm |
| Rated frequency | 50-60 Hz |
| Max. incandescent lamp load | 2600 W |
| Max. conductor length light sensor | 50 m |
| Max. load fluorescent lamp | 2600 VA |
| Max. load fluorescent lamp (Duo circuit) | 2600 VA |
| With programmable overnight shutoff | No |
| Degree of protection (IP) light sensor | IP55 |
| Push button input | No |
| Rated switch current | 16 A |
| Protection class light sensor | II |
| Mounting method light sensor | Wall surface mounted |
Description
Schemerschakelaar voor DIN-rail montage, 1 TE, separate opbouw lichtsensor, schakelvertraging, drempelwaarde en uitgangs LED weergave
