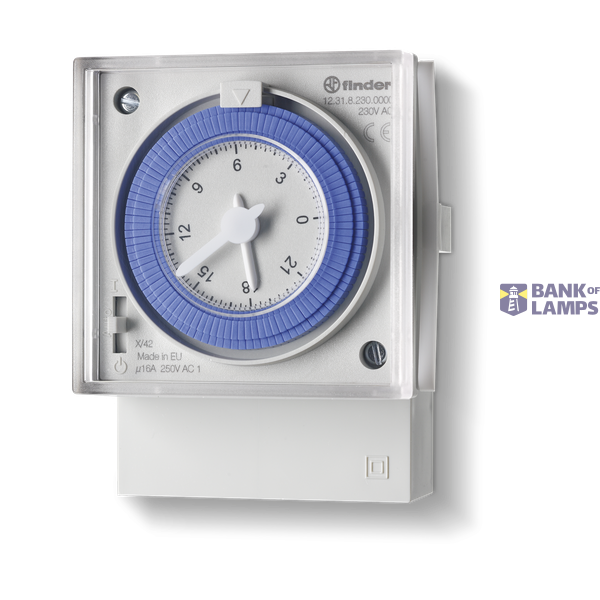

DAILY TIME SWITCH 72X72
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | DAILY TIME SWITCH 72X72 |
| Brand | FINDER |
| ETIM | EC002304 |
| Mounting method | Panel mounting 72x72 mm |
| Number of channels | 1 |
| Annual program | No |
| Contact type | Change-over contact |
| 60 min program | No |
| Automatic switching summer-/winter time | No |
| Suitable for manual operation | Yes |
| Voltage type of supply voltage | AC |
| Potential free switch contact | Yes |
| Supply voltage | 120-230 V |
| Frequency supply voltage | 50-60 Hz |
| Nominal switching current at 250 V AC | 16 A |
| Degree of protection (IP) | IP20 |
| Accuracy per day | 1.5 s |
Packing details
| Packing level 1 | 8012823348056 |
| Packing level 2 | 8012823348049 |
Other Technical data
| Width | 72 mm |
| Height | 91.5 mm |
| Depth | 51.4 mm |
| Weekly program | No |
| Width in number of modular spacings | 4 |
| 24 h program | Yes |
| Mains synchronous | No |
| Quartz controlled | No |
| Autonomy in hours | 100 |
| Shortest switching time channel 1 | 15 min |
| Program shift divide 1 | 96 min |
Description
Time switches Nr.contacts: 1 Contacts configuration: CO Contact Material: AgCdO Mounting method: Panel mounting 72x72 mm Number of channels: 1 Weekly program: no Annual program: no Width in number of modular spacings: 4 60 min. program: no 24 h program: yes Mains synchronous: no Quartz controlled: no Automatic switching summer-/winter time: no Manual operation: yes Voltage type of supply voltage: AC Potential free switch contact: yes Supply voltage: from 120 to 230 V. Frequency supply voltage: from 50 to 60 Hz. Autonomy in hours: 100 Shortest switching time channel 1: 15 min. Nominal switching current at 250 V AC: 16 A. Program shift divide 1: 96 min. Protection category: IP20 Accuracy per day: 1.5 s.
