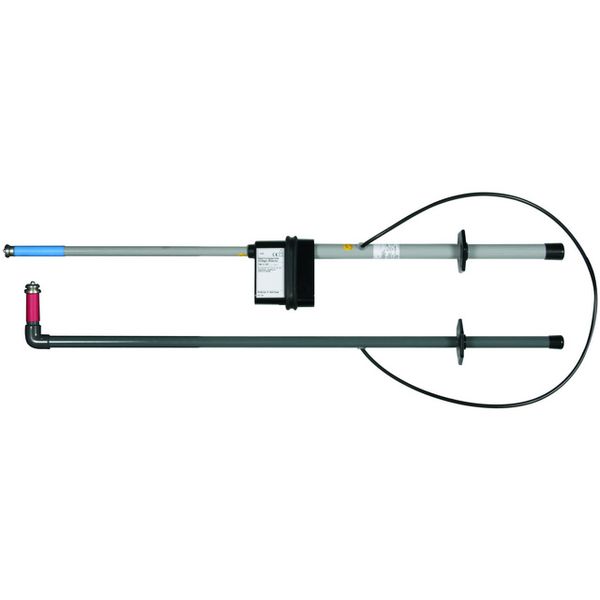

D.c. voltage detector PHE/G II with positive pole on test prod Un 750V

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

3 712,14 €

This price is valid until 31.12.25

EAN: 4013364155817

MPN: 767639

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	D.c. voltage detector PHE/G II with positive pole on test prod Un 750V
Brand	Dehn
Categories	Tools, measuring instruments and protection
Country of origin	DE
Harmonized System Code	9030 3370 00
Nominal voltage	0.75 kV

Packing details

Packing level 1

4013364155817, 4013364155817

Other Technical data

Model	2-pole
Application	Switchgears
Voltage type	DC
Type of indication	Optic
Scope of application	Interior and outdoor installations
With self-test mechanism	Yes
Usable at precipitation	Yes
Total length	1100 mm

Downloads

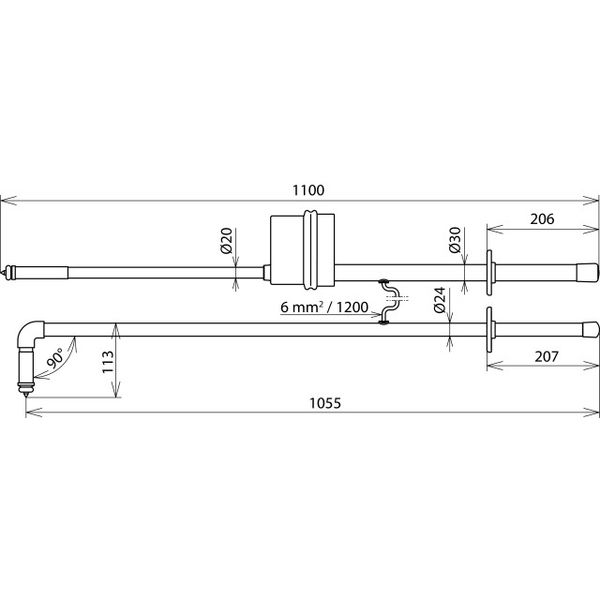

Product data sheet Dimensioned drawing Deep link REACH

Description

Resistive, two-stick d.c. voltage detector PHE/G for switchgear installations, positive pole on indicator with test prod as a complete device based on EN/IEC 61243-1 (DIN VDE 0682-411) for verifying safe isolation from supply voltage at the work location in accordance with EN 50110 (DIN VDE 0105-100) in electrical systems up to 750 V DC. Also for use in wet weather conditions.
