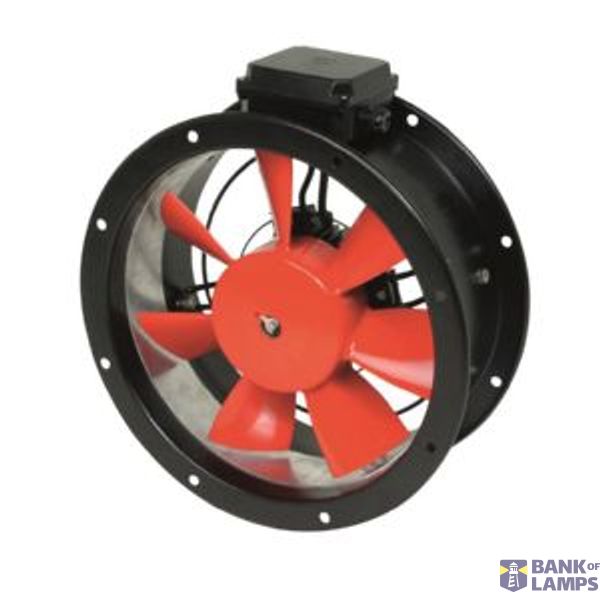

Cylindrische axiale buisventilatoren, TCBT/4-250/H-B 230/400V50/60HZ

Name: Cylindrische axiale buisventilatoren, TCBT/4-250/H-B 230/400V50/60HZ
Brand: S&P
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Cylindrische axiale buisventilatoren, TCBT/4-250/H-B 230/400V50/60HZ
Brand	S&P
Country of origin*	NL
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8414 5100 00
ETIM	EC011013
Power consumption	0.042 kW
Connection	Flange
Housing material	Steel-treated
Connection voltage	400 V
Electrical connection	Terminals
Degree of protection (IP)	IP54
With thermal protection	Yes
Diameter, housing	327 mm
Air volume, unloaded	893.637 m³/h
Air volume at pressure 2	893.637 m³/h
Air volume at pressure 3	489 m³/h
Pressure 2	0 Pa
Pressure 3	25 Pa
Suitable for electronic control	No
Suitable for transformer control	Yes
Duct diameter	254 mm
Max. air temperature	40 °C
Indirect drive	No
Direct-current motor	No
Pole-reversible	No
Suitable for low-current control	No
Suitable for frequency control	Yes
2-speed motor	No

Packing level 1

8413893666895
