  • Cylindrische axiale buisventilatoren, TCBB/4-315/H-B 230V50HZ VE

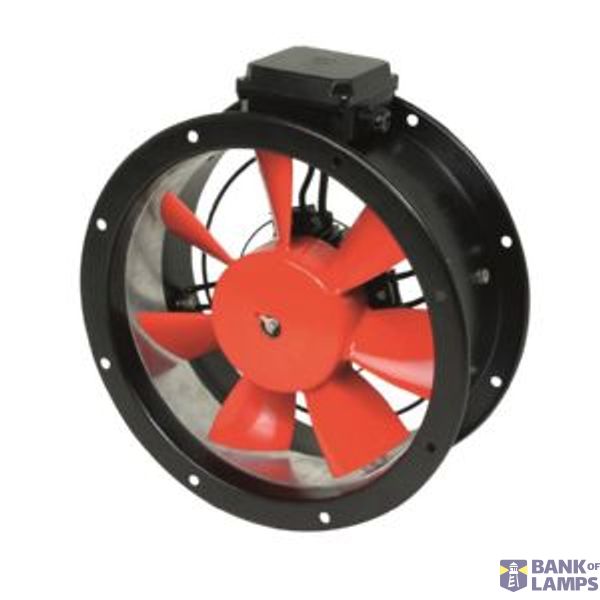

Cylindrische axiale buisventilatoren, TCBB/4-315/H-B 230V50HZ VE image 1
S&P

Cylindrische axiale buisventilatoren, TCBB/4-315/H-B 230V50HZ VE

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Cylindrische axiale buisventilatoren, TCBB/4-315/H-B 230V50HZ VE
Brand S&P
Country of origin* NL
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8414 5925 00
ETIM EC011013
Power consumption 0.105 kW
Connection Flange
Housing material Steel-treated
Connection voltage 230 V
Electrical connection Terminals
Degree of protection (IP) IP54
With thermal protection Yes
Diameter, housing 386 mm
Air volume, unloaded 1989 m³/h
Air volume at pressure 2 1992.33 m³/h
Air volume at pressure 3 1529.54 m³/h
Pressure 2 0 Pa
Pressure 3 50 Pa
Suitable for electronic control Yes
Suitable for transformer control Yes
Duct diameter 315 mm
Max. air temperature 40 °C
Indirect drive No
Direct-current motor No
Pole-reversible No
Suitable for low-current control No
Suitable for frequency control No
2-speed motor No

Packing details

Packing level 1 8413893666864
