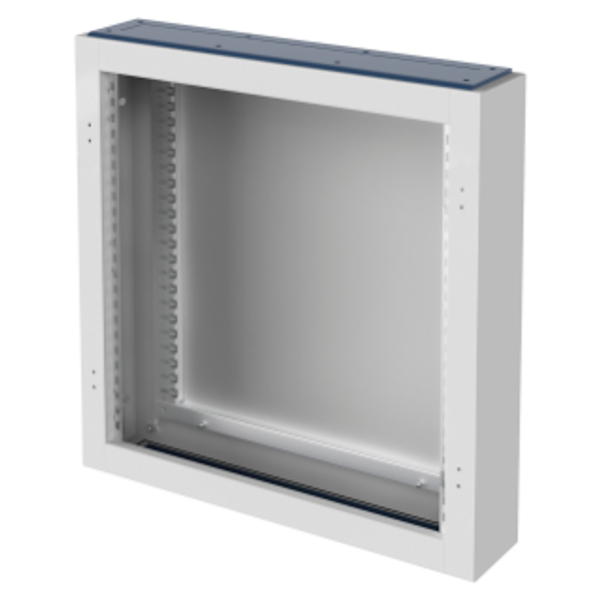

CVX DISTRIBUTION BOARD 160E - SURFACE-MOUNTING - 600x600x140 - IP30 - WITHOUT DOOR - WITH EXTRACTABLE FRAME - GREY RAL7035
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
148,22 €
EAN: 8011564251113
MPN: GW47001E
Package: 1
Pallet: 12
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | CVX DISTRIBUTION BOARD 160E - SURFACE-MOUNTING - 600x600x140 - IP30 - WITHOUT DOOR - WITH EXTRACTABLE FRAME - GREY RAL7035 |
| Brand | GEWISS |
| Categories |
Electrical Enclosures
|
| Harmonized System Code | 8538 1000 00 |
| Degree of protection (IP) | IP30 |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 | 170 W |
| Max. permissible load of the enclosure according to IEC 62208 | 0 N |
| Max. permissible load of the door(s) according to IEC 62208 | 0 N |
Packing details
| Packing level 1 | 8011564251113, 8011564251113 |
| Packing level 2 | 8011564251113 |
Other Technical data
| Colour | Grey |
| Width | 600 mm |
| Height | 600 mm |
| Depth | 140 mm |
| RAL-number | 7035 |
| With mounting plate | Yes |
| Number of doors | 0 |
| Number of locks | 0 |
| Suitable for wall mounting | Yes |
| EMC-version | No |
| With glazed door | No |
| Connectable | Yes |
| Material quality | Other |
| Material | Steel |
| Impact strength | IK10 |
| Suitable for outdoor set-up | No |
| Suitable for metrical mounting | No |
| Mounting plate depth-adjustable | Yes |
| With ventilation door | No |
| Surface finishing | Powder coating |
| With rear door | No |
| Suitable for wall built-in | No |
| Pitched roof | No |
| Pole fastening | No |
| Max. permissible load of the mounting plate according to IEC 62208 | 0 N |
| Floor standing wall model | No |
| Detached | Yes |
| Corner model | No |
| Intermediate mounting | No |
Downloads
Description
47 CVX 160 E Range Wall-mounting distribution boards up to 160 A with extractable frame - The CVX 160 E range of surface-mounted distribution boards up to 160A can be configured according to any requirement, from a minimum capacity of 72 modules up to a maximum of 192, using the appropriate choice of installation kits with holes every 150 mm or 200 mm.
